16N2R027B16-SSO09-C

16N2R027B16-SSO09-C

SKU DOR6758333
by Dormer Pramet
Primary Use: Possible Use:

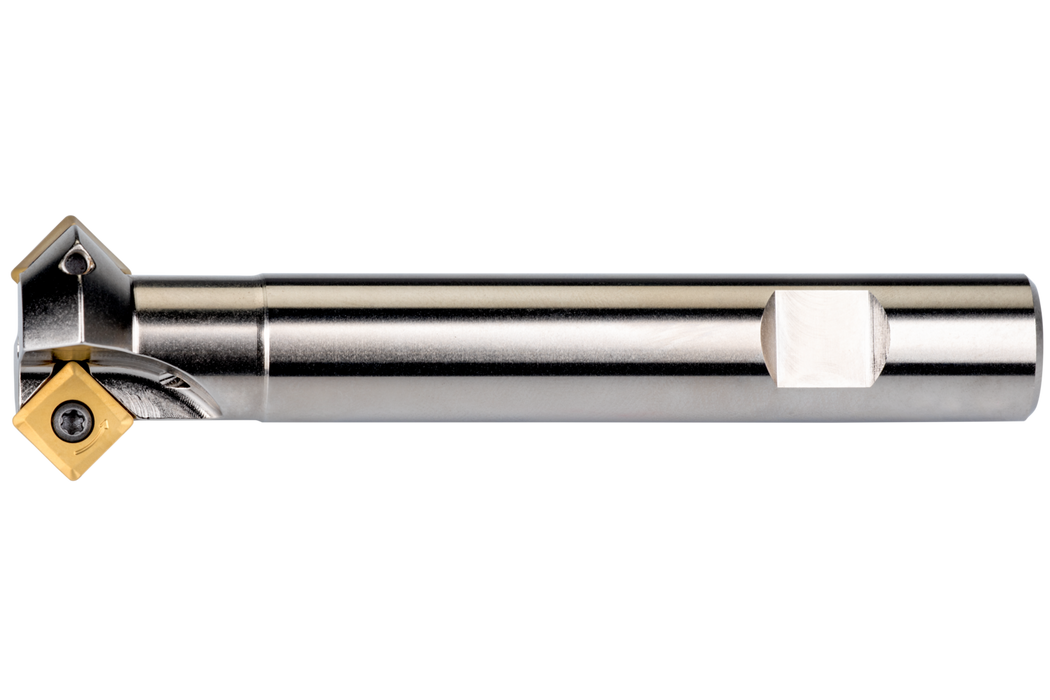

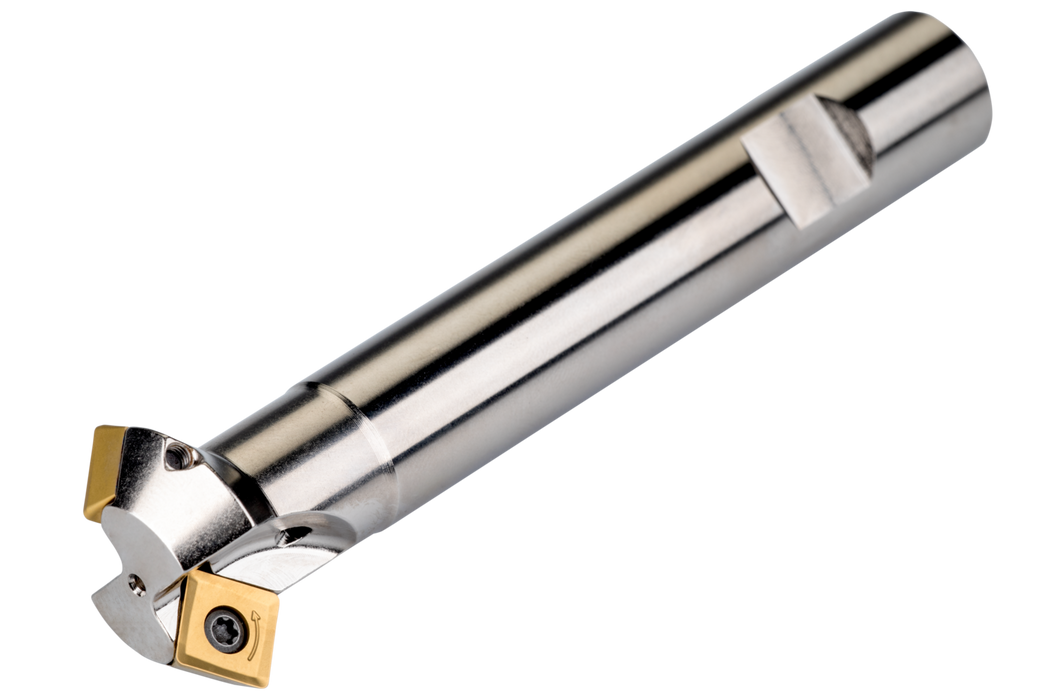

Chamfer mill with double negative geometry which utilises 2 off SOMT 09T3.. single-sided inserts, cutting diameter 16 to maximum 28.8mm with 45° approach angle and 16mm Weldon shank according to DIN 1835B, 110mm overall length, through coolant for chamfering with a maximum depth of cut of 4.5mm

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$414.00 - $414.00
$414.00
$414.00 - $414.00
$414.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

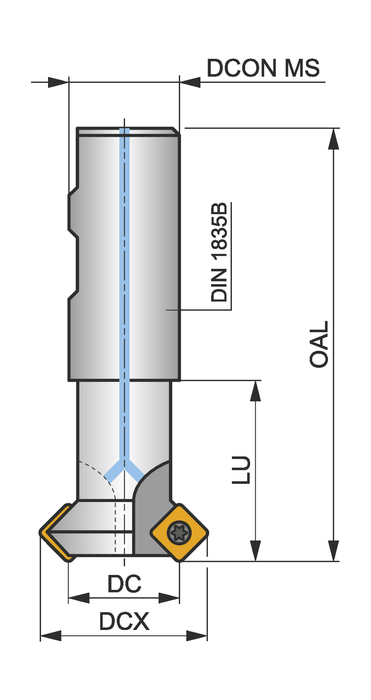

Cutting Diameter - in (DC): 0.63

Cutting Diameter - mm (DC): 16.0

Max Cut Diameter: 1.134

Through Coolant: 1

Overall Length (OAL): 4.331

Connetion Diameter: 0.63

Tool Direction: Right

Shank: Weldon shank DIN 1835B

Cutter Design: N-SSO09

Cutting Edge Count: 2

EDP: 6758333

EAN: 3603602936790

MFG Part Number: 6758333
