25N3R042B25-SSO09-C

25N3R042B25-SSO09-C

SKU DOR6758334
by Dormer Pramet
Primary Use: Possible Use:

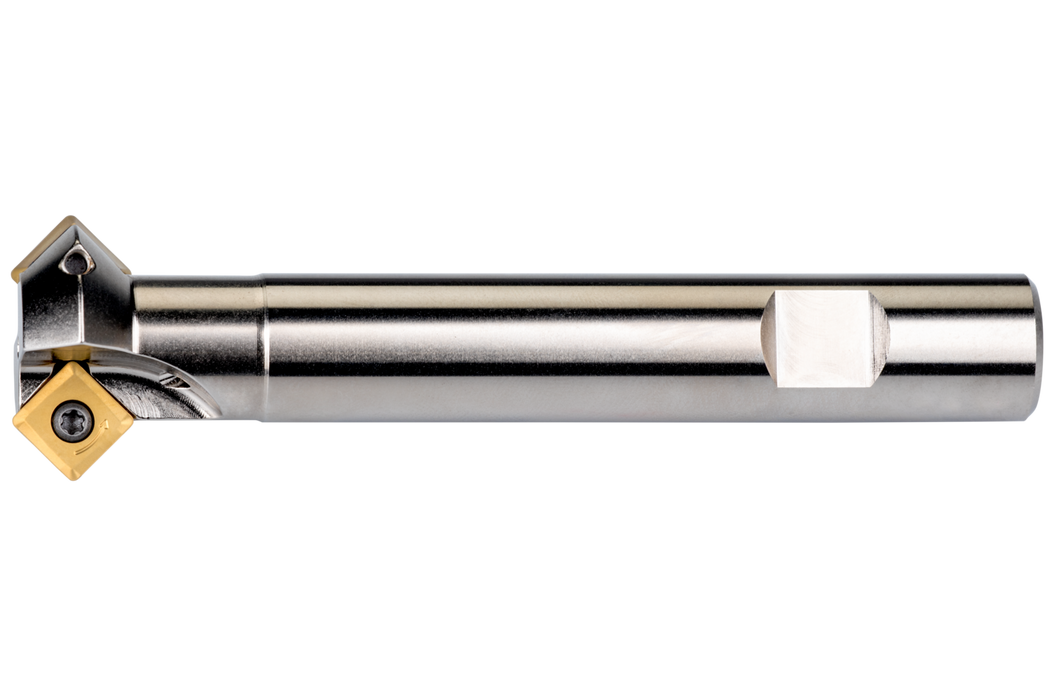

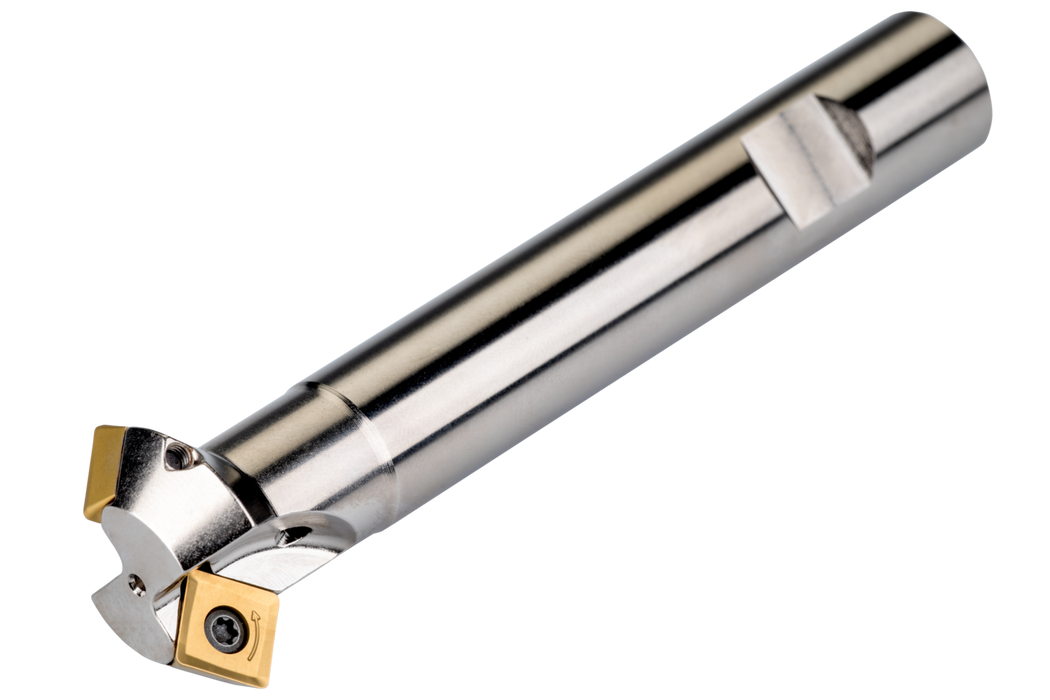

Chamfer mill with double negative geometry which utilises 3 off SOMT 09T3.. single-sided inserts, cutting diameter 25 to maximum 37.8mm with 45° approach angle and 25mm Weldon shank according to DIN 1835B, 125mm overall length, through coolant for chamfering with a maximum depth of cut of 4.5mm

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$495.00 - $495.00
$495.00
$495.00 - $495.00
$495.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

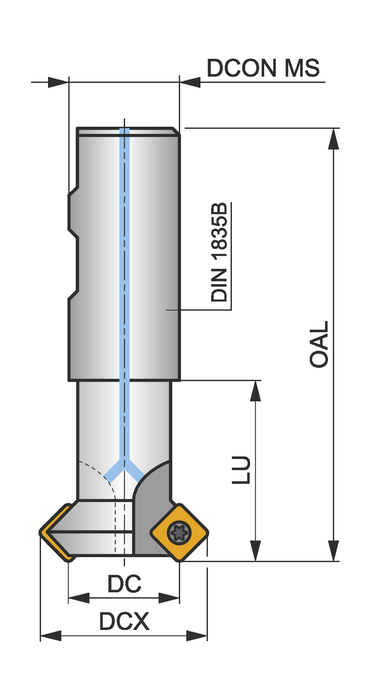

Cutting Diameter - in (DC): 0.984

Cutting Diameter - mm (DC): 25.0

Max Cut Diameter: 1.488

Through Coolant: 1

Overall Length (OAL): 4.921

Connetion Diameter: 0.984

Tool Direction: Right

Shank: Weldon shank DIN 1835B

Cutter Design: N-SSO09

Cutting Edge Count: 3

EDP: 6758334

EAN: 3603602936806

MFG Part Number: 6758334
