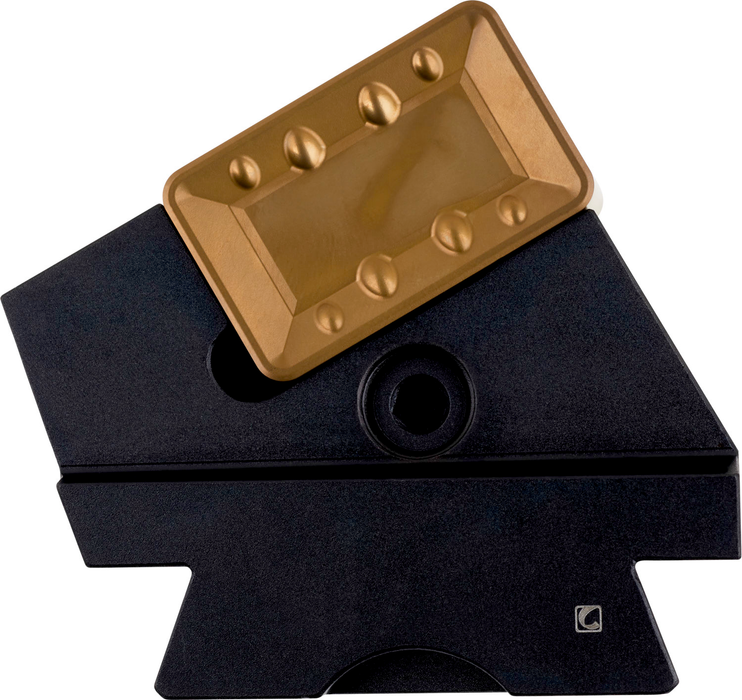

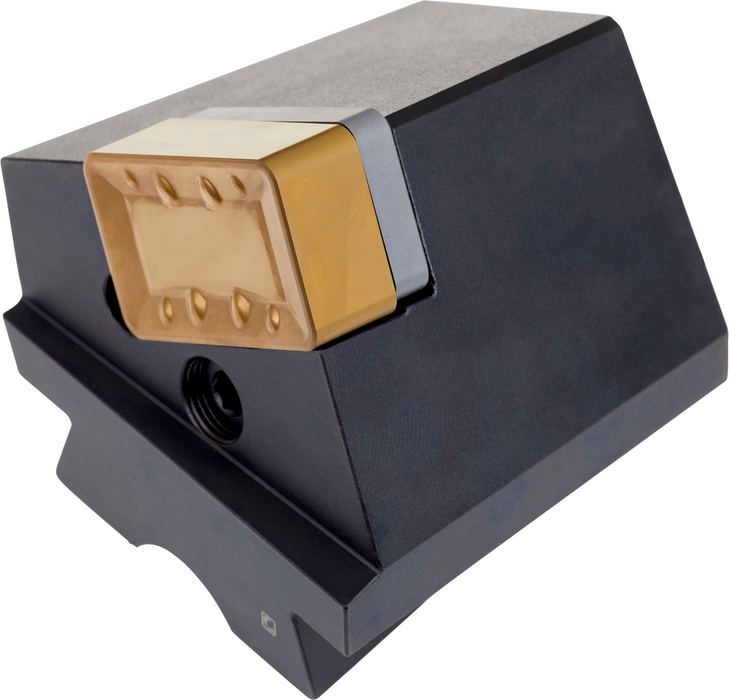

KHP-LBNR 40-A
SKU DOR6758502
Primary Use:

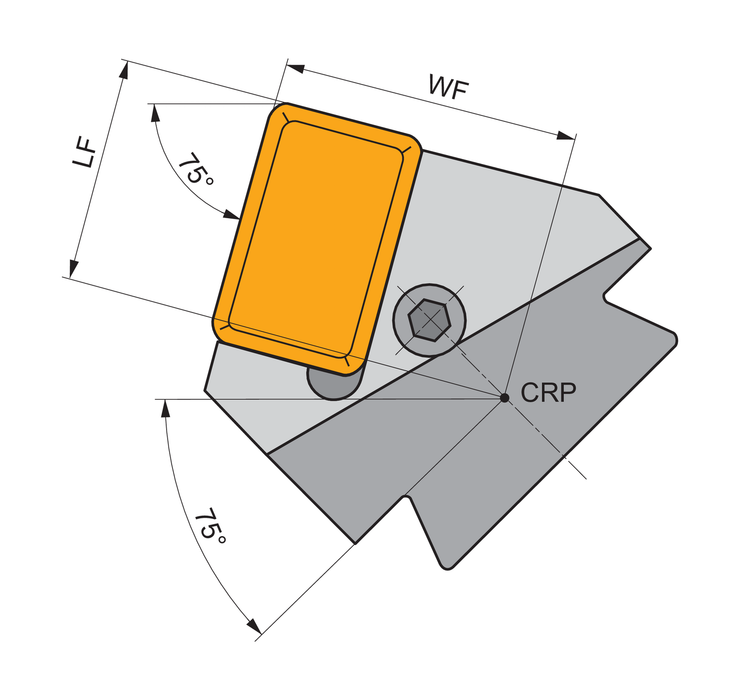

Lever lock modular turning tool cartridge for holding a rectangular negative insert with a main edge length of 40mm (ISO designation LNUX 40…. ), assemble with DHKR.. for right hand 75° side cutting with straight shank for taper turning, face turning without shoulder and longitudinal turning without shoulder
Inventory
Sold in packs of: 1
For more information about this product,
click here
Original price
$616.00
-
Original price
$616.00
Original price
$616.00
$616.00
-
$616.00
Current price
$616.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
Tool Direction: Right
Functional Length: 1.417
EDP: 6758502
EAN: 3603602938480
MFG Part Number: 6758502
