DWLNL 3232 P 13
SKU DOR6758518
Primary Use:
Possible Use:

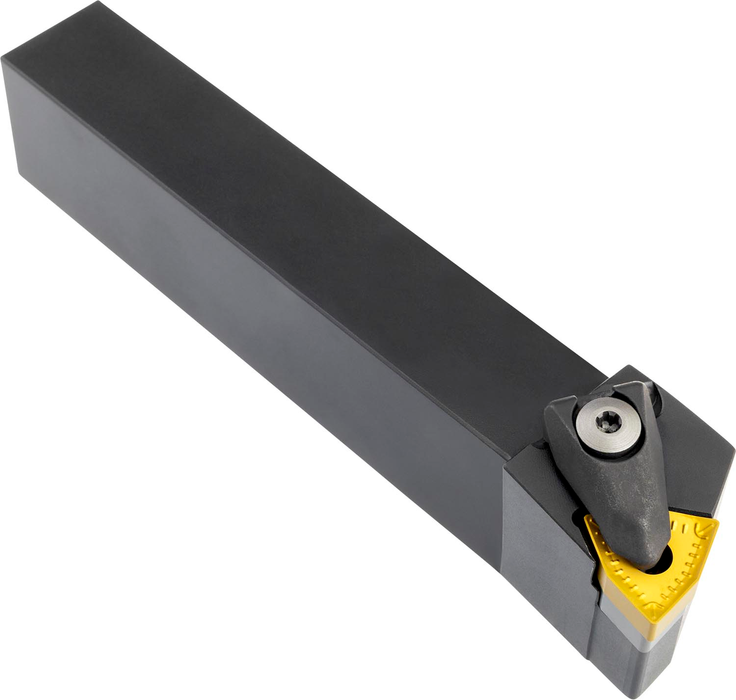

Double clamp turning tool for holding a 80° trigon negative insert with an inscribed circle diameter of 19.05mm, 6.35mm thick (ISO designation WN.. 1306.. ), left hand 95° side and end cutting with off-set shank, 32mm tool height x 32mm width x 170mm long for taper turning, face turning with and without shoulder and longitudinal turning with and without shoulder
Inventory
Sold in packs of: 1
For more information about this product,
click here
Original price
$221.00
-
Original price
$221.00
Original price
$221.00
$221.00
-
$221.00
Current price
$221.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

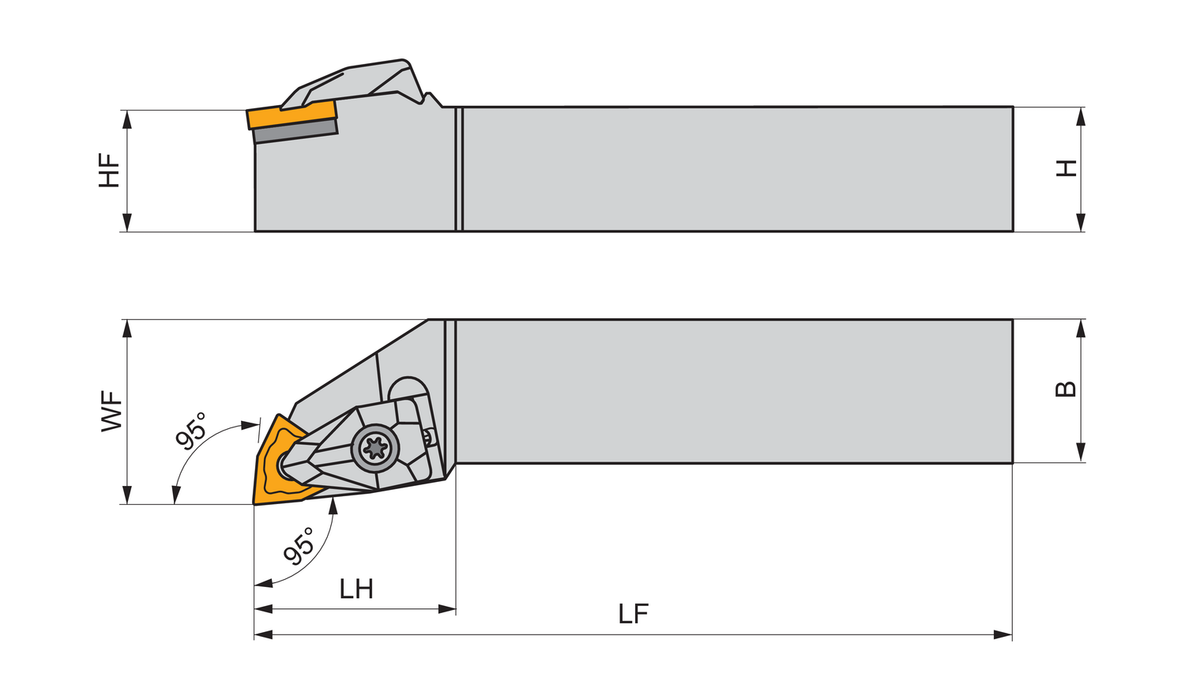

Height: 1.26
Tool Direction: Left
Insert Designation: ["WN.. 1306.."]
Functional Length: 6.693
EDP: 6758518
EAN: 3603602938640
MFG Part Number: 6758518
