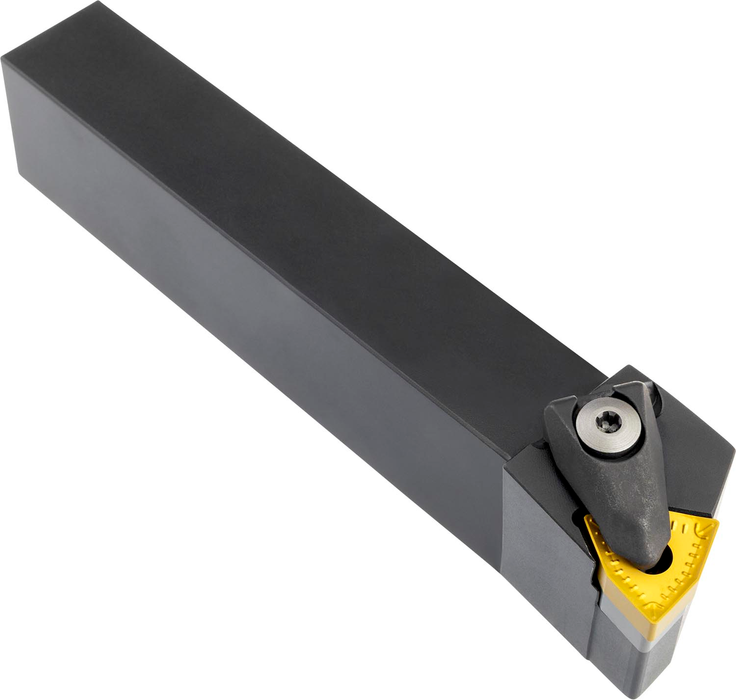

DWLNL 4040 S 13
SKU DOR6758519
Primary Use:
Possible Use:
Double clamp turning tool for holding a 80° trigon negative insert with an inscribed circle diameter of 19.05mm, 6.35mm thick (ISO designation WN.. 1306.. ), left hand 95° side and end cutting with off-set shank, 40mm tool height x 40mm width x 250mm long for taper turning, face turning with and without shoulder and longitudinal turning with and without shoulder
Inventory
Sold in packs of: 1
For more information about this product,
click here
Original price
$295.00
-
Original price
$295.00
Original price
$295.00
$295.00
-
$295.00
Current price
$295.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
Height: 1.575
Tool Direction: Right
Insert Designation: ["WN.. 1306.."]
Functional Length: 9.843
EDP: 6758519
EAN: 3603602938657
MFG Part Number: 6758519
