25J2R50B25-SAD11E38-C

25J2R50B25-SAD11E38-C

SKU DOR6759643
by Dormer Pramet
Primary Use: Possible Use:

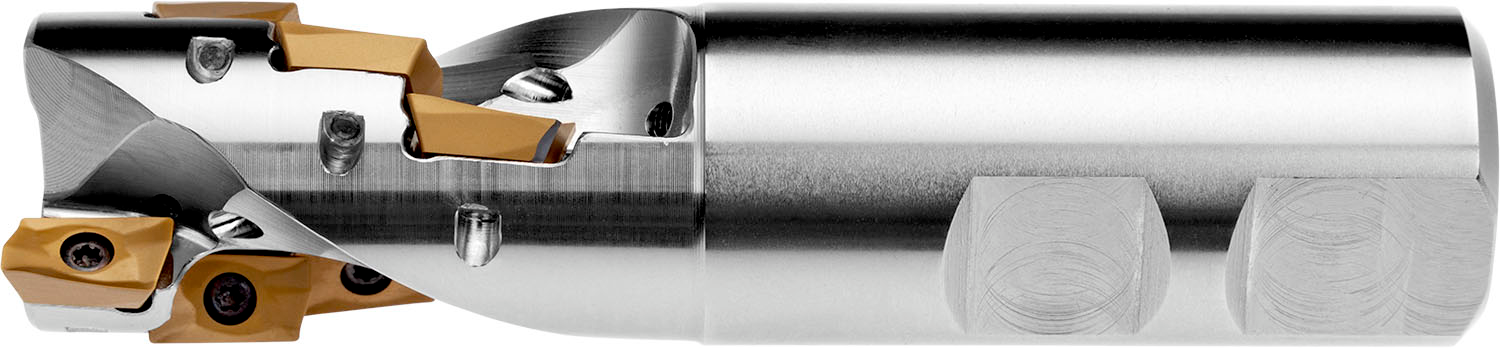

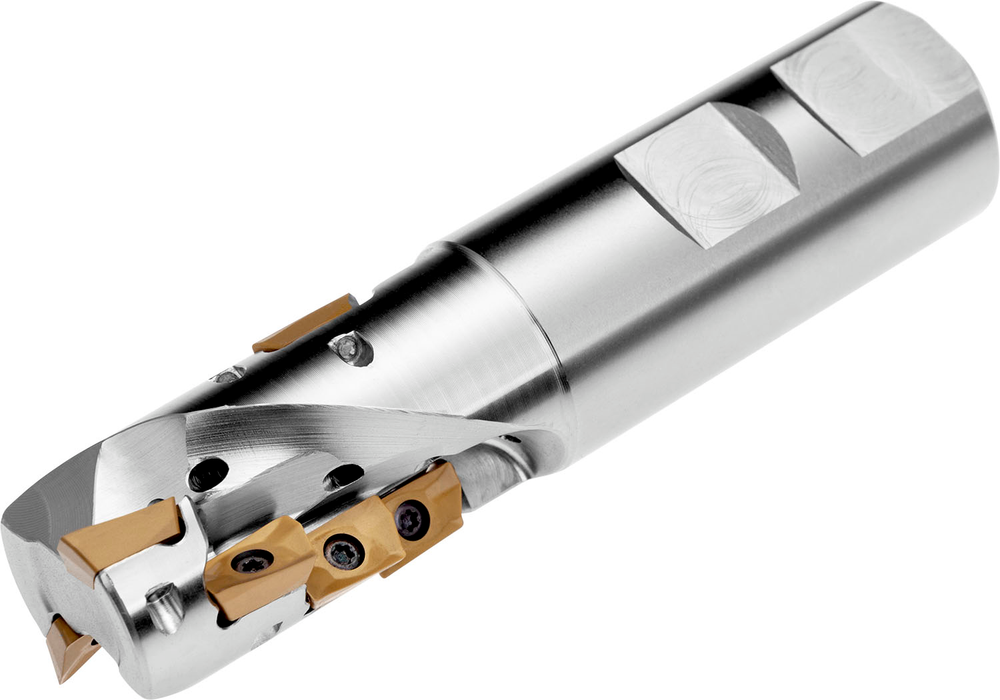

Shoulder mill with extended flute with positve/negative geometry which utilises 8 off ADMX 11T3.. single-sided inserts, cutting diameter 25mm with 90° approach angle and 25mm Weldon shank according to DIN 1835B, 38mm functional and 106.0mm overall length, through coolant for deep shoulder milling and deep slot milling with a maximum depth of cut of 38mm

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$750.00 - $750.00
$750.00
$750.00 - $750.00
$750.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

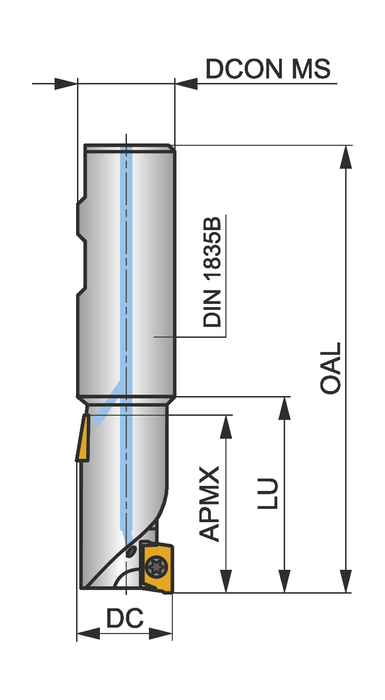

Cutting Diameter - in (DC): 0.984

Cutting Diameter - mm (DC): 25.0

Through Coolant: 1

Overall Length (OAL): 4.173

Connetion Diameter: 0.984

Tool Direction: Right

Shank: Weldon shank DIN 1835B

Cutter Design: J(T)-SAD11E

Cutting Edge Count: 8

EDP: 6759643

EAN: 3603602949899

MFG Part Number: 6759643
