40J3R70B40-SAD11E56-C

40J3R70B40-SAD11E56-C

SKU DOR6759646
by Dormer Pramet
Primary Use: Possible Use:

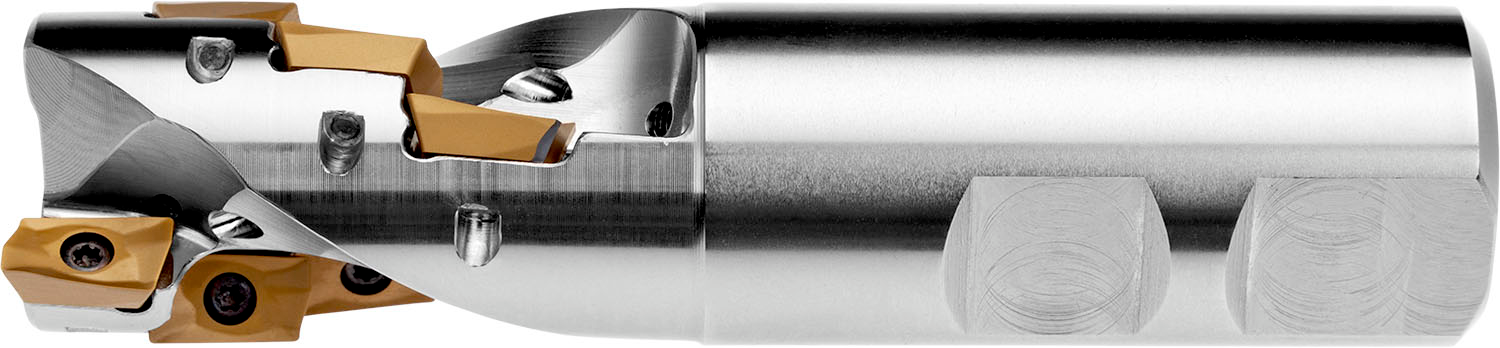

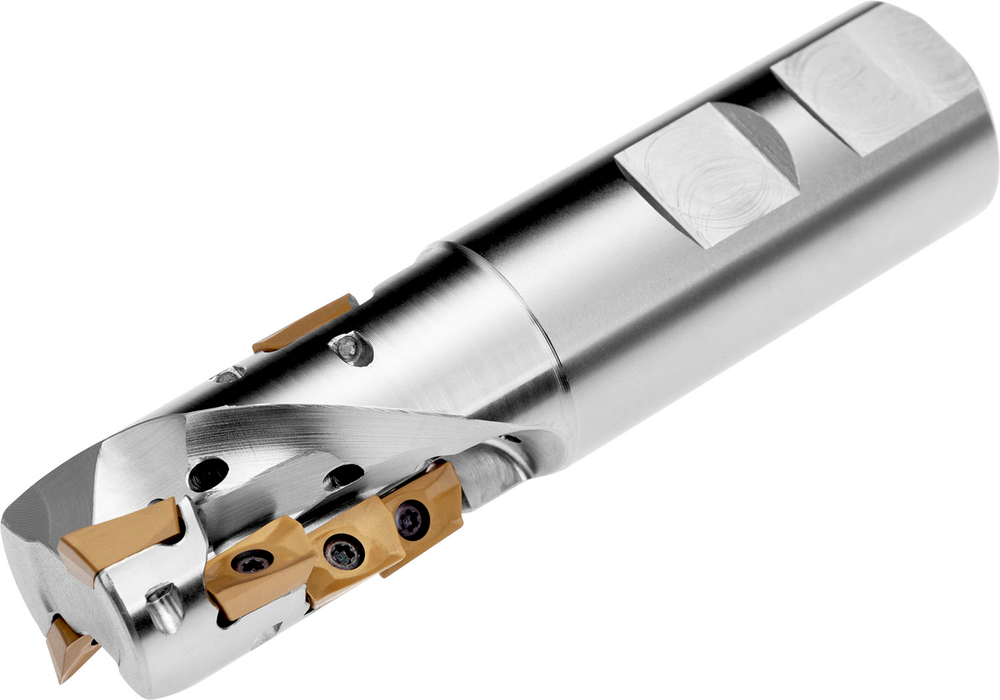

Shoulder mill with extended flute with positve/negative geometry which utilises 18 off ADMX 11T3.. single-sided inserts, cutting diameter 40mm with 90° approach angle and 40mm Weldon shank according to DIN 1835B, 56mm functional and 140.0mm overall length, through coolant for deep shoulder milling and deep slot milling with a maximum depth of cut of 56mm

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$1,401.00 - $1,401.00
$1,401.00
$1,401.00 - $1,401.00
$1,401.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

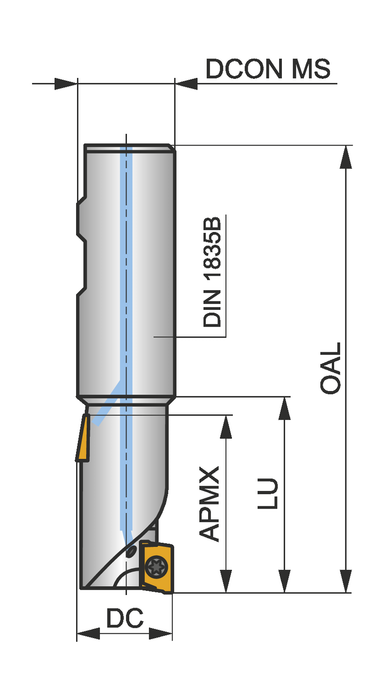

Cutting Diameter - in (DC): 1.575

Cutting Diameter - mm (DC): 40.0

Through Coolant: 1

Overall Length (OAL): 5.512

Connetion Diameter: 1.575

Tool Direction: Left

Shank: Weldon shank DIN 1835B

Cutter Design: J(T)-SAD11E

Cutting Edge Count: 18

EDP: 6759646

EAN: 3603602949929

MFG Part Number: 6759646
