32J2R65E04-SAD11E47-C

32J2R65E04-SAD11E47-C

SKU DOR6759648
by Dormer Pramet
Primary Use: Possible Use:

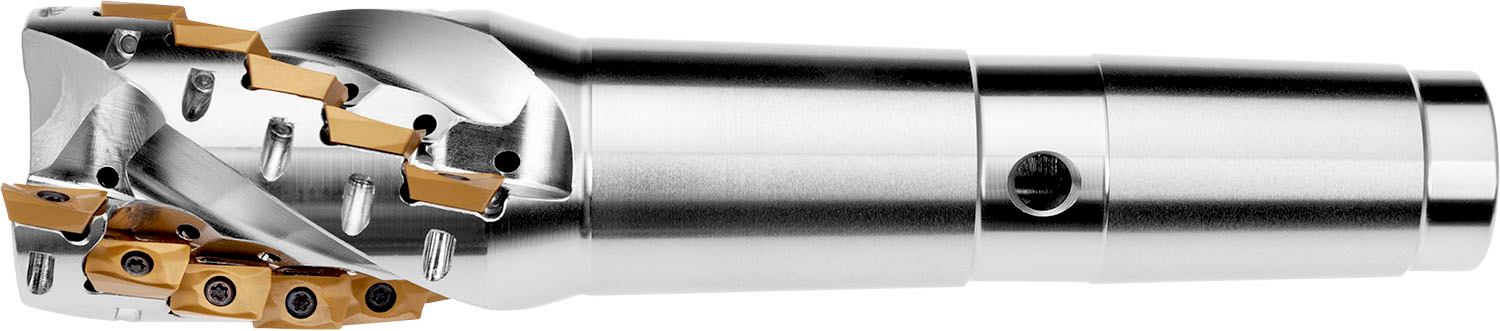

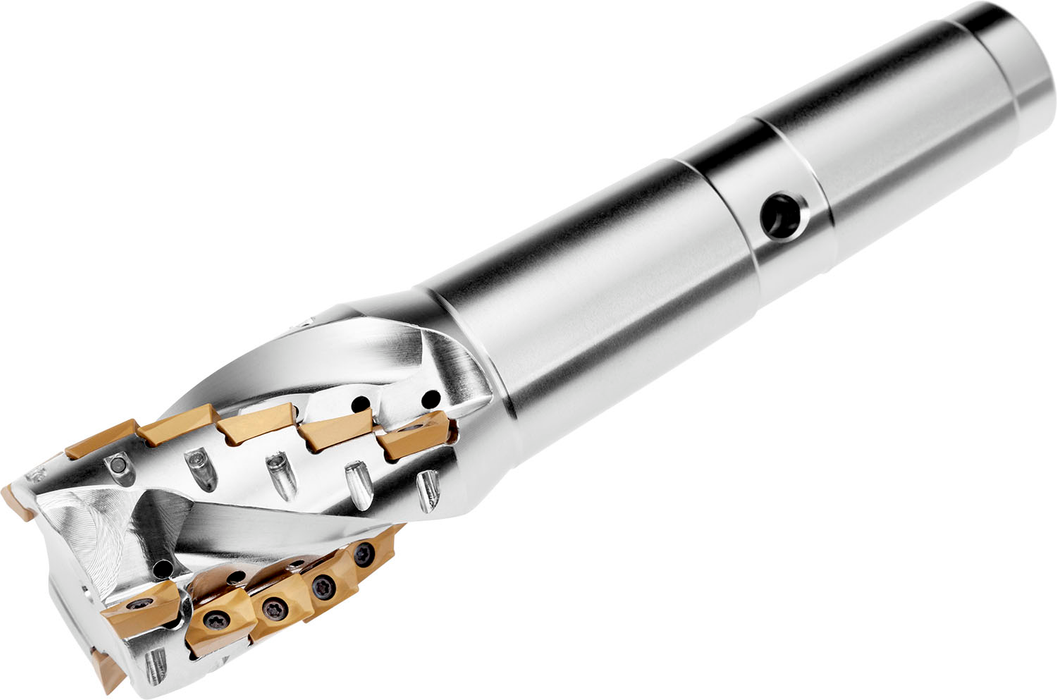

Shoulder mill with extended flute with positve/negative geometry which utilises 10 off ADMX 11T3.. single-sided inserts, cutting diameter 32mm with 90° approach angle and MT 4 morse taper shank according to DIN 228-1A, 47mm functional and 167.5mm overall length, through coolant for deep shoulder milling and deep slot milling with a maximum depth of cut of 47mm

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$945.00 - $945.00
$945.00
$945.00 - $945.00
$945.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

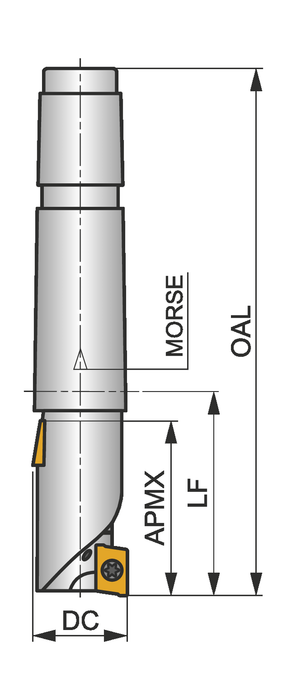

Cutting Diameter - in (DC): 1.26

Cutting Diameter - mm (DC): 32.0

Through Coolant: 1

Overall Length (OAL): 6.594

Tool Direction: Neutral

Shank: Morse shank DIN 228-1

Cutter Design: J(T)-SAD11E

Cutting Edge Count: 10

EDP: 6759648

EAN: 3603602949943

MFG Part Number: 6759648
