A25S-SVJBL 11
A25S-SVJBL 11
A25S-SVJBL 11

A25S-SVJBL 11

SKU DOR6759719
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$293.00 CAD - $293.00 CAD
$293.00 CAD
$293.00 CAD - $293.00 CAD
$293.00 CAD

Sold in packs of: 1

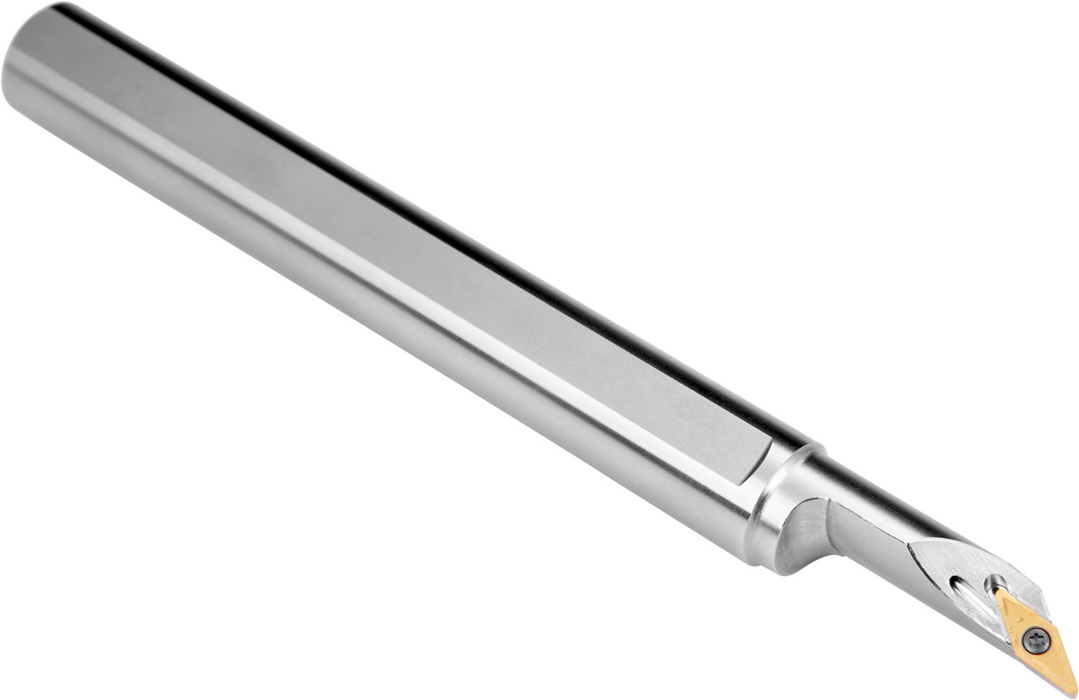

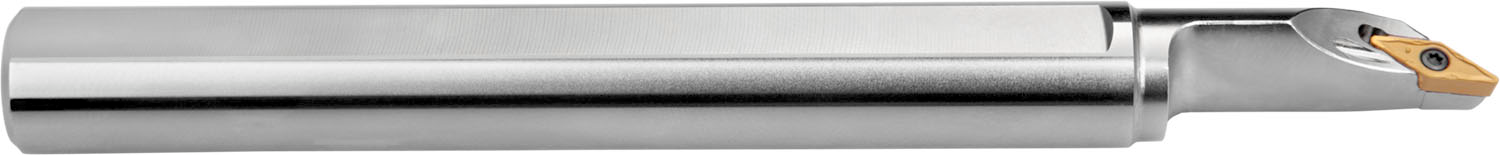

Screw clamp boring bar for holding a 35° rhombus positive insert with an inscribed circle diameter of 6.35mm, 3.18mm thick (ISO designation VB.. 1103.. ), left hand 93° side cutting with off-set shank, steel with coolant hole, 25mm diameter x 250mm long for face copy turning

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A25S-SVJBL 11
Product Number6759719
Product FamilySVJB(RL) INT

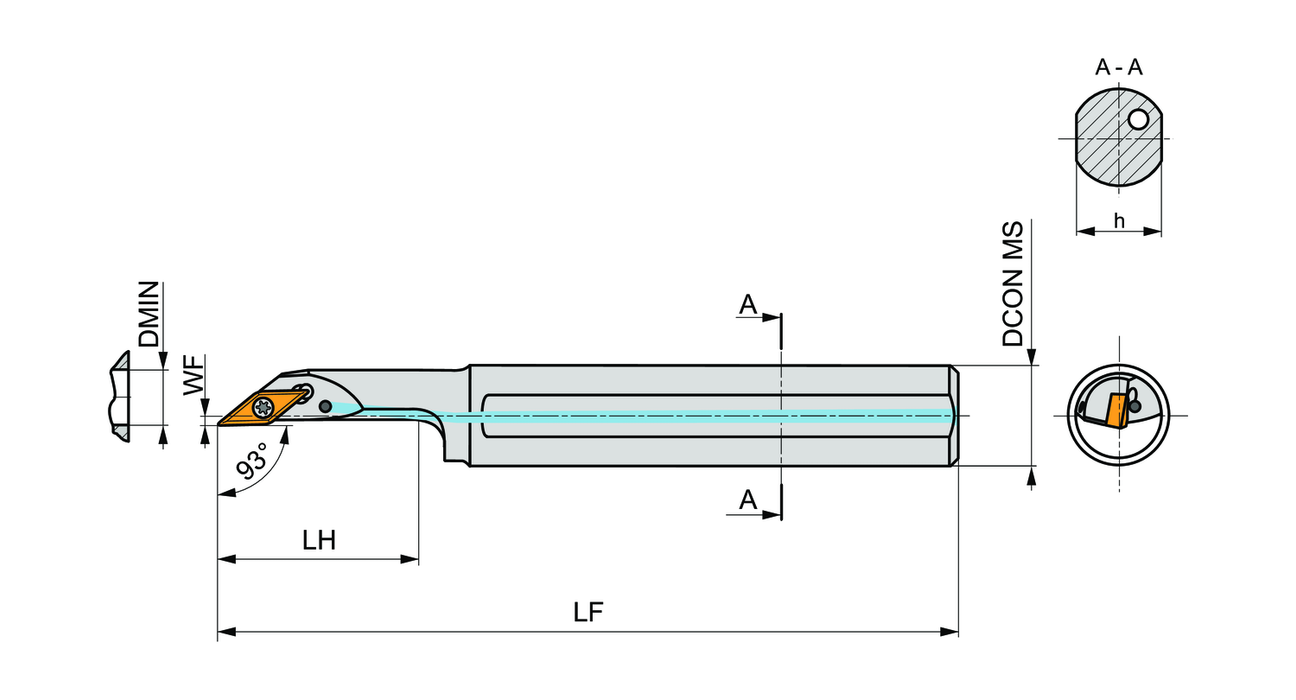

Dimensions
Functional Length — in (LF)9.843"
Functional Length — mm (LF)250.0 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Shank Height — mm (H)0.906 mm
Min. Bore Dia. — in (DMIN)1.26"
Tool Information
Direction of ToolRight
Through Coolant Yes
Reference Numbers
EDP Number6759719
EAN3603602950659
File Type Download
A25S-SVJBL 11 — 3D Model STP Download
A25S-SVJBL 11 — 2D Model DXF Download
A25S-SVJBL 11 — Line Drawing PDF Download
