250J08N-S90XN16N30
SKU DOR6760159
Primary Use:
Possible Use:
Disc mill with positve/negative geometry which utilises 16 off XNHQ 1606.. double-sided inserts, cutting diameter 250mm with 90° approach angle and 50mm connection bore according to DIN 8030, for deep slot milling with a width of cut of 24,5 ÷ 30,5mm
Inventory
Sold in packs of: 1
For more information about this product,
click here
Original price
$4,731.00
-
Original price
$4,731.00
Original price
$4,731.00
$4,731.00
-
$4,731.00
Current price
$4,731.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

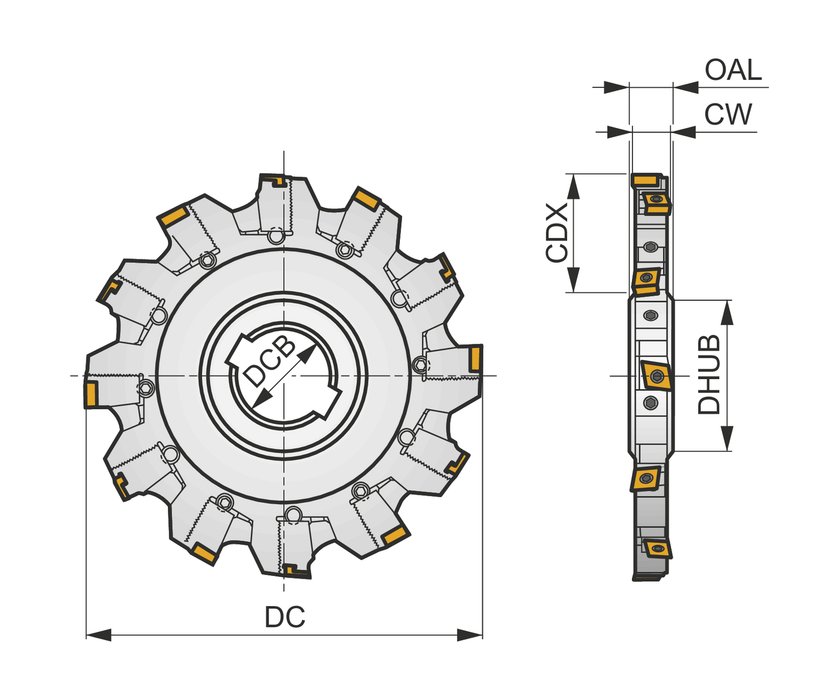

Cutting Diameter - in (DC): 9.843
Cutting Diameter - mm (DC): 250.0
Overall Length (OAL): 1.181
Tool Direction: Right
Shank: Shell mill DIN 8030 – disc mill
Cutter Design: S90CN(XN)
Cutting Edge Count: 16
EDP: 6760159
EAN: 3603602955050
MFG Part Number: 6760159
