KTP-LANL 19
KTP-LANL 19
KTP-LANL 19

KTP-LANL 19

SKU DOR6760264
by Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$385.00 CAD - $385.00 CAD
$385.00 CAD
$385.00 CAD - $385.00 CAD
$385.00 CAD

Sold in packs of: 1

Lever lock modular turning tool cartridge for holding a rectangular negative insert with a main edge length of 19.05mm (ISO designation LN.X 1919.. ), for wheelset machining, assemble with DKTL 5055 X (A1/A2) for taper turning and longitudinal turning without shoulder

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)KTP-LANL 19
Product Number6760264
Product FamilyKTP-LAN(RL)

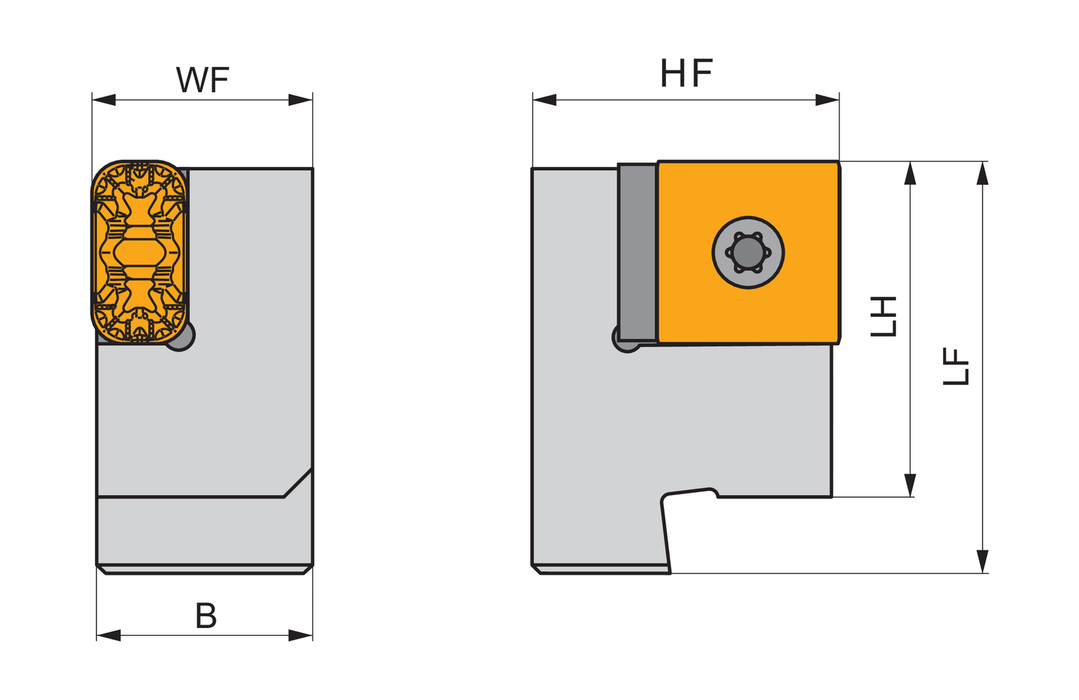

Dimensions
Functional Length — in (LF)1.693"
Functional Length — mm (LF)43.0 mm
Tool Information
Direction of ToolRight
Reference Numbers
EDP Number6760264
EAN3603602956101
File Type Download
KTP-LANL 19 — 3D Model STP Download
KTP-LANL 19 — Line Drawing PDF Download
