45T04R-S35XP1616-C

45T04R-S35XP1616-C

SKU DOR6760350
by Dormer Pramet
Primary Use: Possible Use:

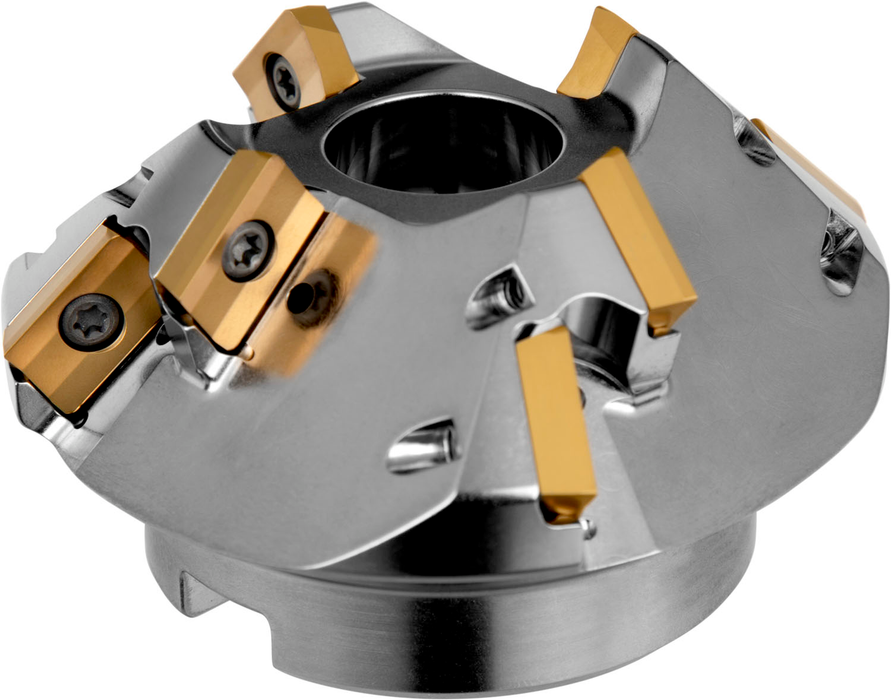

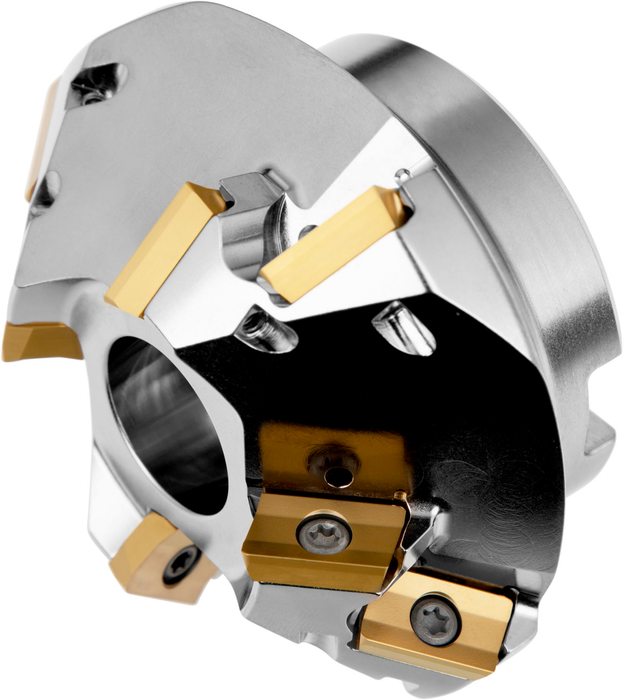

Chamfer mill with positve/negative geometry which utilises 8 off XPHT 1604.. single-sided inserts, cutting diameter 45 to maximum 92.4mm with 35° approach angle and 27mm connection bore according to DIN 8030, 50mm protrusion length, through coolant and differential pitch for chamfering with a maximum depth of cut of 16mm

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$1,408.00 - $1,408.00
$1,408.00
$1,408.00 - $1,408.00
$1,408.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

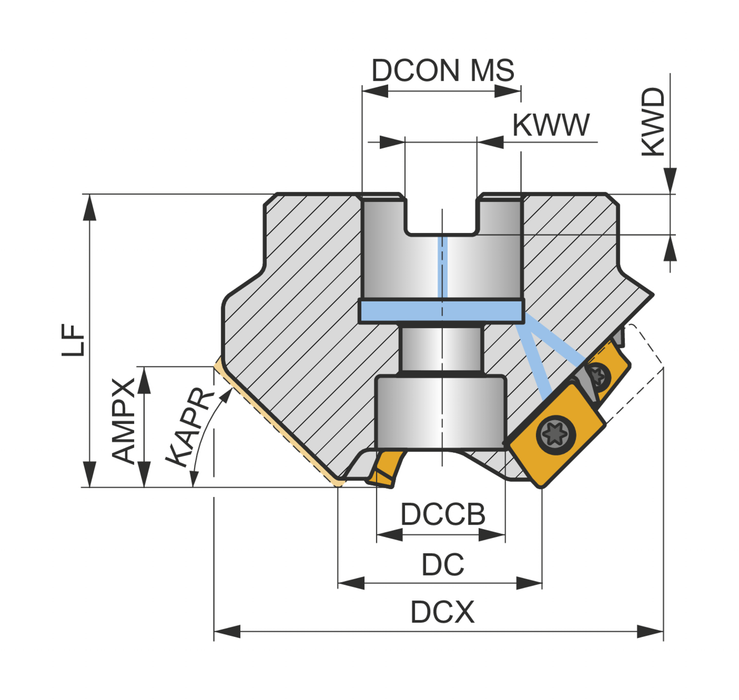

Cutting Diameter - in (DC): 1.772

Cutting Diameter - mm (DC): 45.0

Max Cut Diameter: 3.638

Through Coolant: 1

Connetion Diameter: 1.063

Tool Direction: Left

Cutting Edge Angle: 35.0

Shank: Shell mill DIN 8030 – helical mill

Cutter Design: J(T)-SXP16

Cutting Edge Count: 8

EDP: 6760350

EAN: 3603602956965

MFG Part Number: 6760350
