35T03R-S40XP1618-C

35T03R-S40XP1618-C

SKU DOR6760362
by Dormer Pramet
Primary Use: Possible Use:

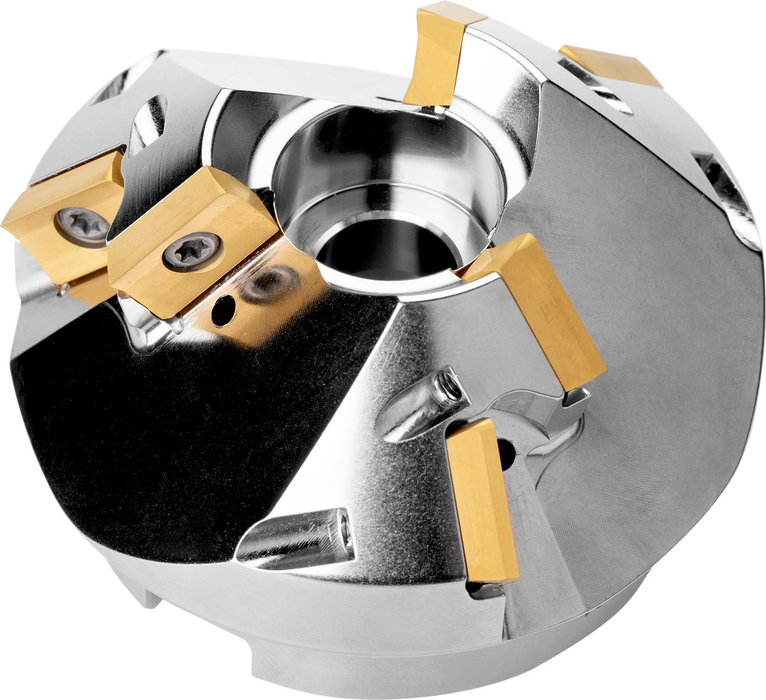

Chamfer mill with positve/negative geometry which utilises 6 off XPHT 1604.. single-sided inserts, cutting diameter 35 to maximum 79.4mm with 40° approach angle and 27mm connection bore according to DIN 8030, 50mm protrusion length, through coolant for chamfering with a maximum depth of cut of 18mm

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$1,282.00 - $1,282.00
$1,282.00
$1,282.00 - $1,282.00
$1,282.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

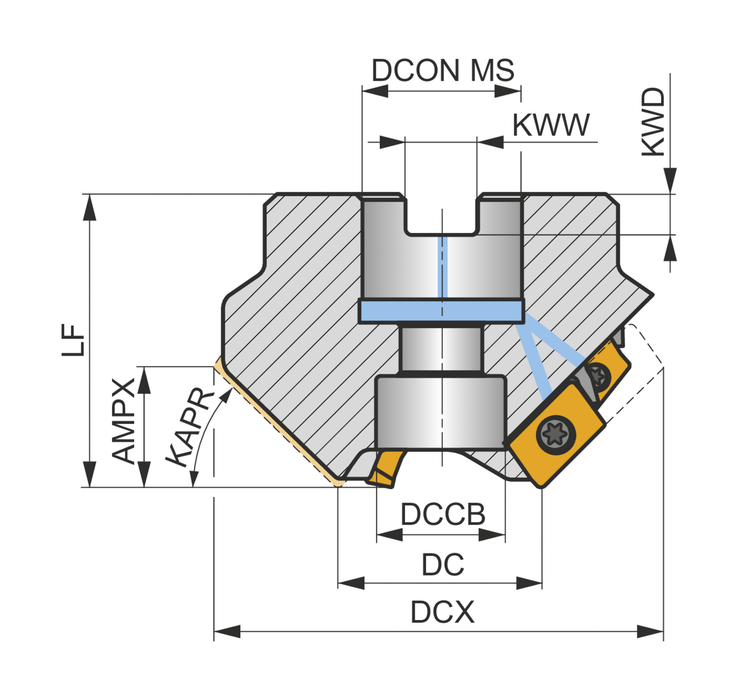

Cutting Diameter - in (DC): 1.378

Cutting Diameter - mm (DC): 35.0

Max Cut Diameter: 3.126

Through Coolant: 1

Connetion Diameter: 1.063

Tool Direction: Left

Cutting Edge Angle: 40.0

Shank: Shell mill DIN 8030 – helical mill

Cutter Design: J(T)-SXP16

Cutting Edge Count: 6

EDP: 6760362

EAN: 3603602957085

MFG Part Number: 6760362
