80J2R190H50-SLSN134-C

80J2R190H50-SLSN134-C

SKU DOR6760431
by Dormer Pramet
Primary Use:

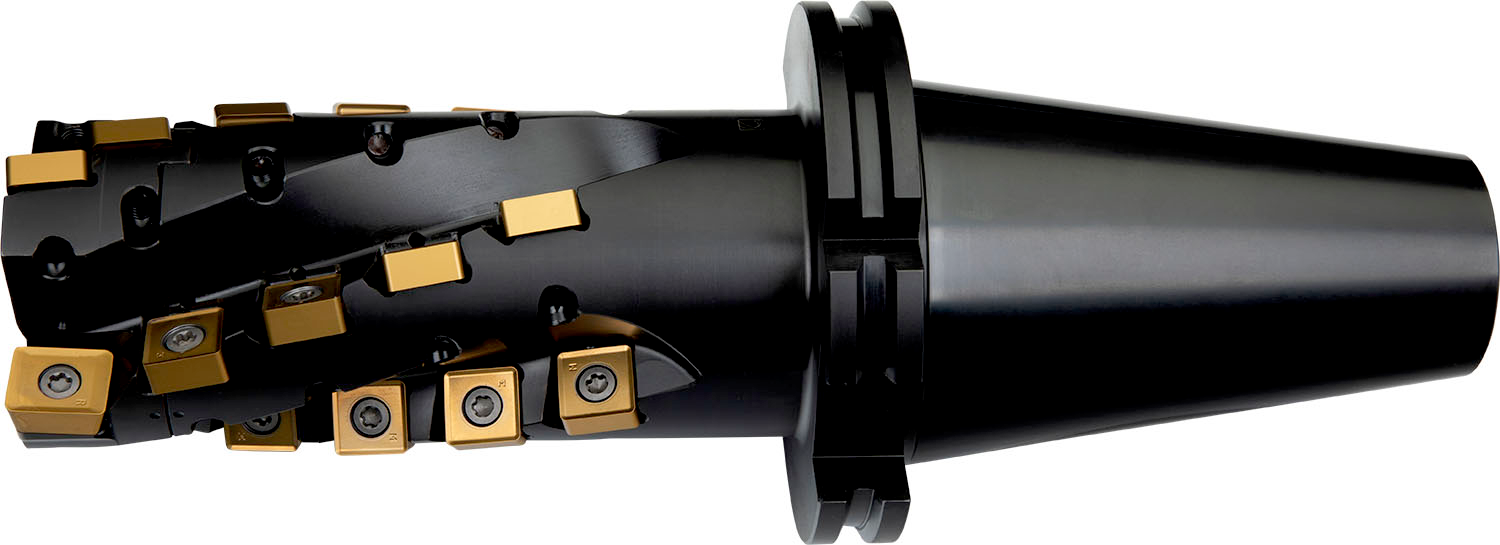

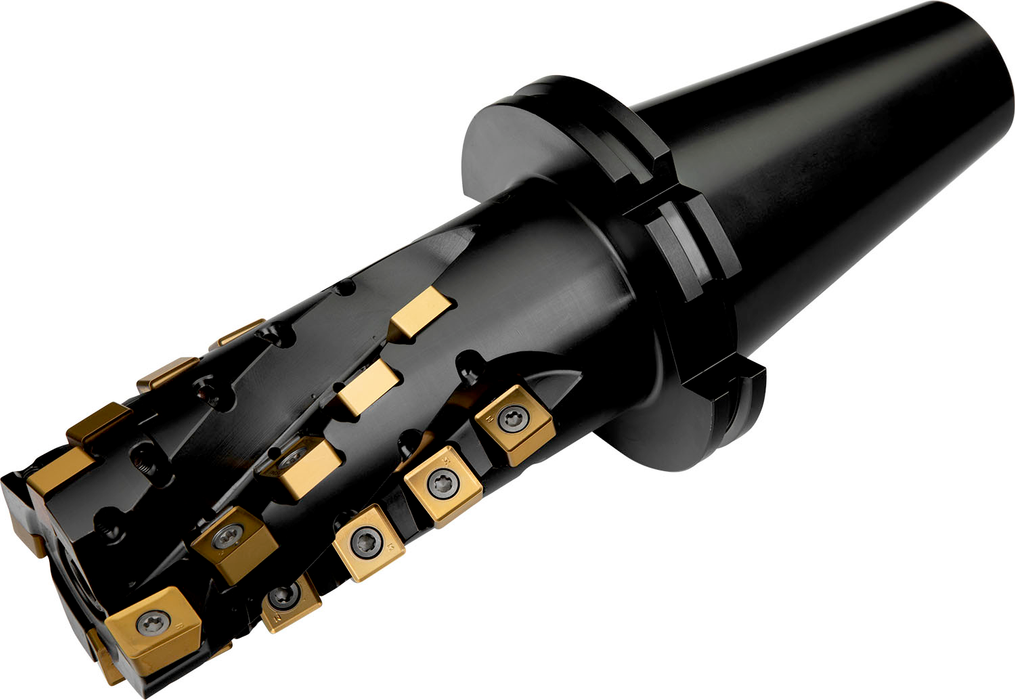

Shoulder mill with extended flute with double negative geometry which utilises 2 off LNET 1606.. and 26 SN.. 1305.. double-sided inserts, cutting diameter 80mm with 90° approach angle and SK 50 taper shank according to ISO/DIS 7388-1, 134mm functional and 292mm overall length, through coolant for deep shoulder milling and deep slot milling with a maximum depth of cut of 134mm

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$4,156.00 - $4,156.00
$4,156.00
$4,156.00 - $4,156.00
$4,156.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

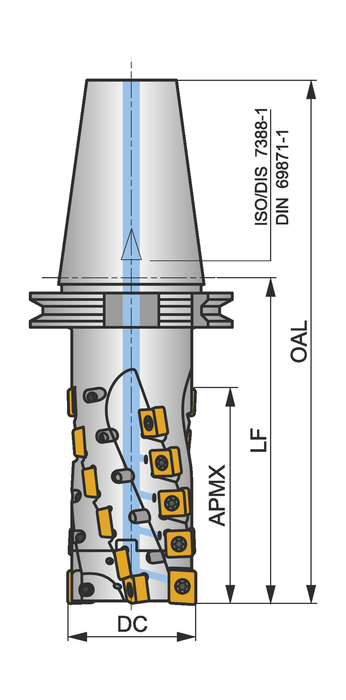

Cutting Diameter - in (DC): 3.15

Cutting Diameter - mm (DC): 80.0

Through Coolant: 1

Overall Length (OAL): 11.496

Tool Direction: Left

Shank: Arbor DIN 69871-1

Cutter Design: J(T)-SLSN

EDP: 6760431

EAN: 3603602957771

MFG Part Number: 6760431
