SEGCR 1616 H 08
SKU DOR6760435
Primary Use:

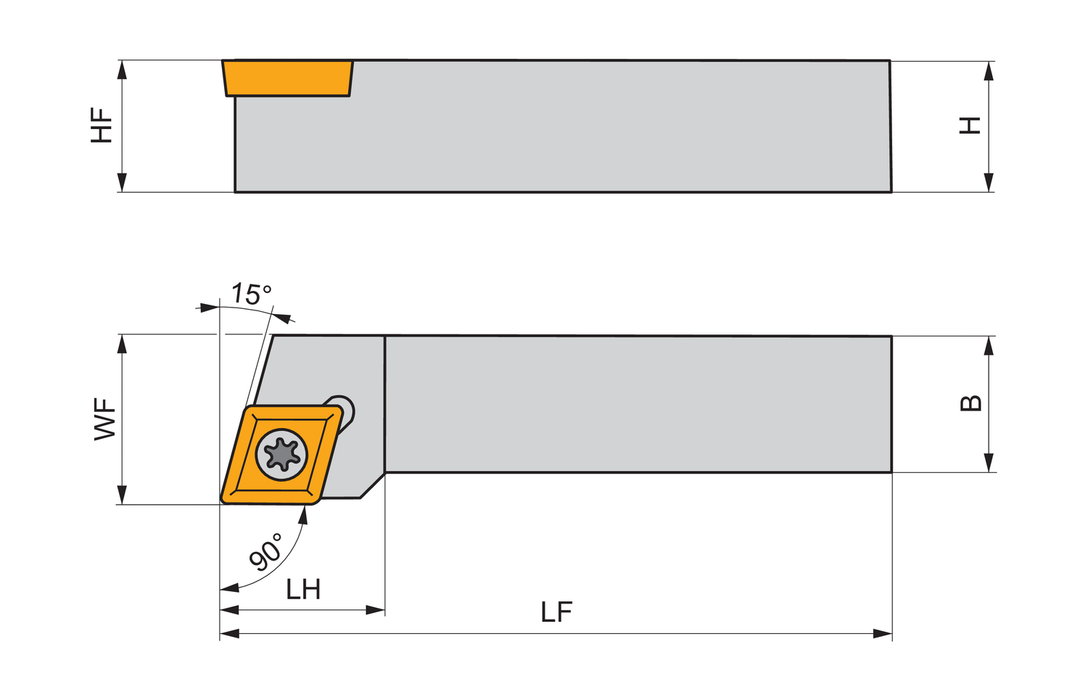

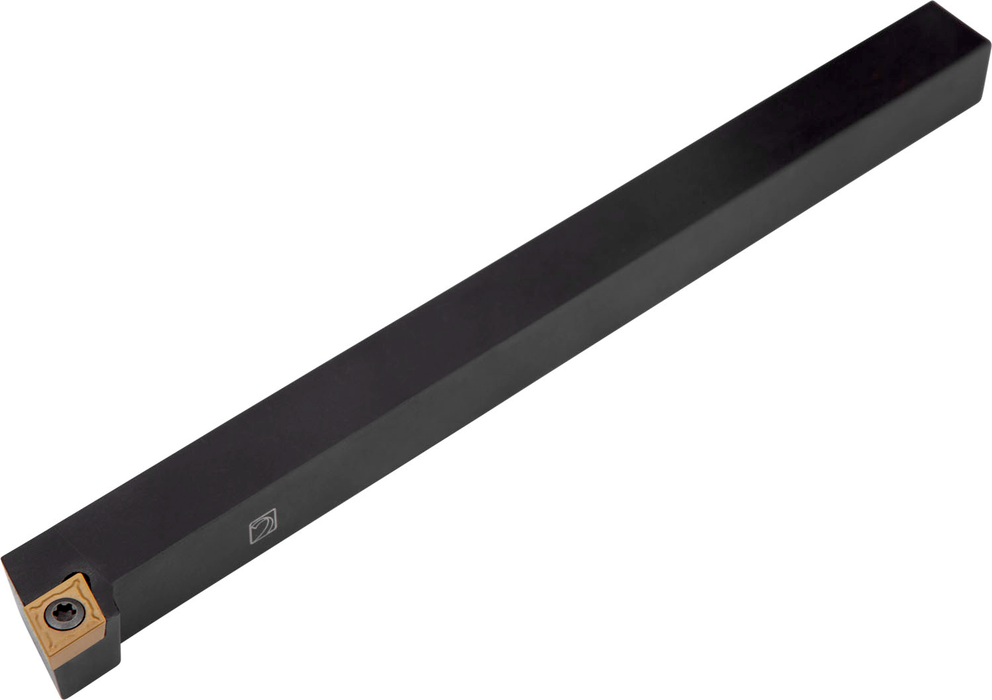

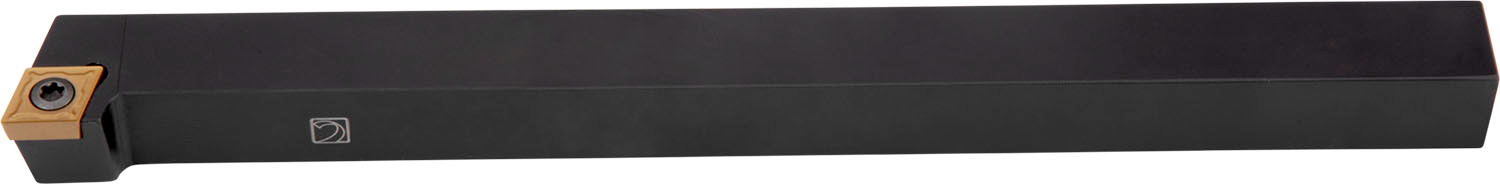

Screw clamp turning tool for holding a 75° rhombus positive insert with an inscribed circle diameter of 7.94mm, 3.18mm thick (ISO designation EC.. 0803.. ), right hand 90° side cutting with off-set shank, 16mm tool height x 16mm width x 100mm long for chamfering, taper turning and longitudinal turning without shoulder
Inventory
Sold in packs of: 1
For more information about this product,
click here
Original price
$151.00
-
Original price
$151.00
Original price
$151.00
$151.00
-
$151.00
Current price
$151.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
Height: 0.63
Tool Direction: Left
Insert Designation: ["EC.. 0803.."]
Functional Length: 3.937
EDP: 6760435
EAN: 3603602957818
MFG Part Number: 6760435
