A 02290 400
A 02290 400

A 02290 400

SKU DOR6760644
by Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$810.00 CAD - $810.00 CAD
$810.00 CAD
$810.00 CAD - $810.00 CAD
$810.00 CAD

Sold in packs of: 1

Integral pocket type boring head size 22 with 90° approach angle and 2 micron adjusting accuracy for finishing within a diamerter range of 24 to 30mm, to hold a CC.. 0602.. insert for longitudinal boring with and without shoulder

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A 02290 400
Product Number6760644
Product FamilyF90

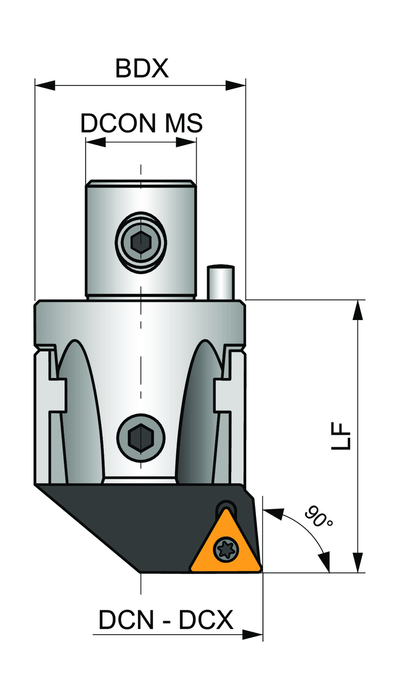

Dimensions
Functional Length — mm (LF)34.0 mm
Connection Dia. — in (DCON)0.472"
Connection Dia. — mm (DCON)12.0 mm
Tool Information
Reference Numbers
EDP Number6760644
EAN3603602959904
File Type Download
A 02290 400 — Line Drawing PDF Download
