A 02790 409
A 02790 409

A 02790 409

SKU DOR6760646
by Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$810.00 CAD - $810.00 CAD
$810.00 CAD
$810.00 CAD - $810.00 CAD
$810.00 CAD

Sold in packs of: 1

Integral pocket type boring head size 27 with 90° approach angle and 2 micron adjusting accuracy for finishing within a diamerter range of 29 to 40mm, to hold a CC.. 09T3.. insert for longitudinal boring with and without shoulder

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A 02790 409
Product Number6760646
Product FamilyF90
Dimensions
Functional Length — mm (LF)42.0 mm
Connection Dia. — in (DCON)0.591"
Connection Dia. — mm (DCON)15.0 mm
Tool Information
Reference Numbers
EDP Number6760646
EAN3603602959928
File Type Download

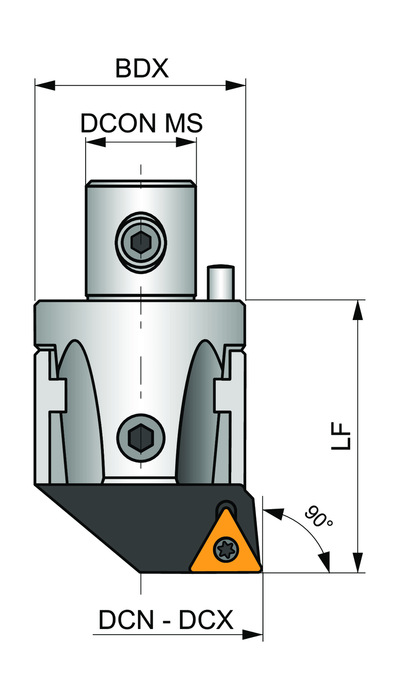

A 02790 409 — Line Drawing PDF Download
