S10G SCLCR 06-B
SKU DOR6760720

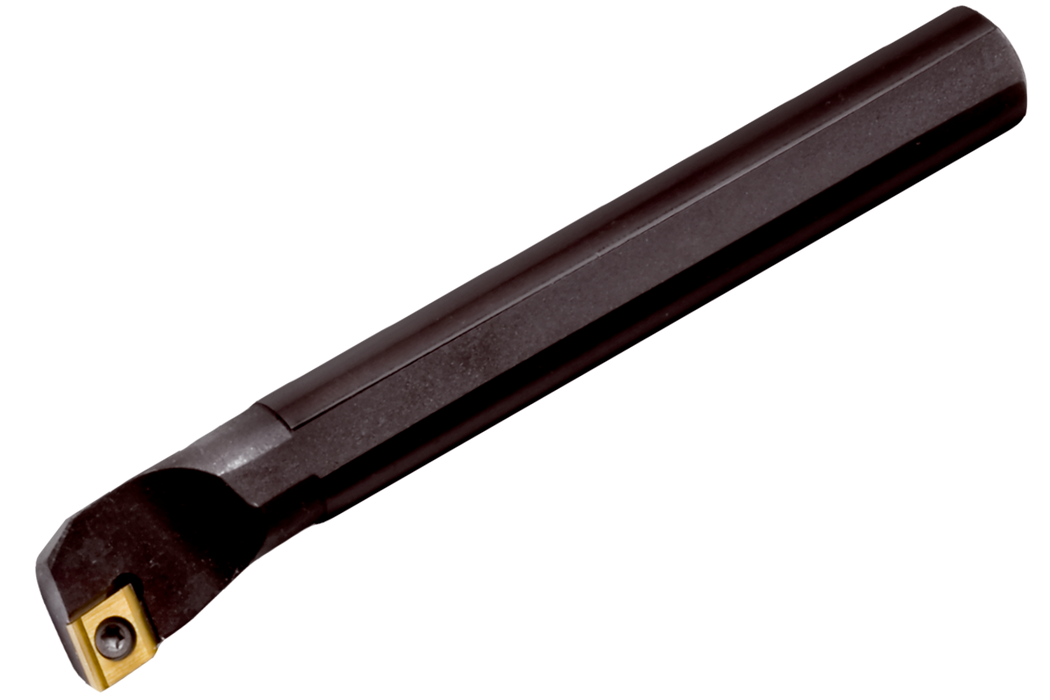

Screw clamp boring bar for holding a 80° rhombic shape positive insert with an inscribed circle diameter 6.35mm, 2.38mm thick (ISO designation CC.. 0602.. ), right hand 95° side and end cutting with off-set shank, steel without coolant hole, 10mm diameter 54mm protrusion length for cone boring and longitudinal boring with and without shoulder
Inventory
Sold in packs of: 1
For more information about this product,
click here
Original price
$342.00
-
Original price
$342.00
Original price
$342.00
$342.00
-
$342.00
Current price
$342.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

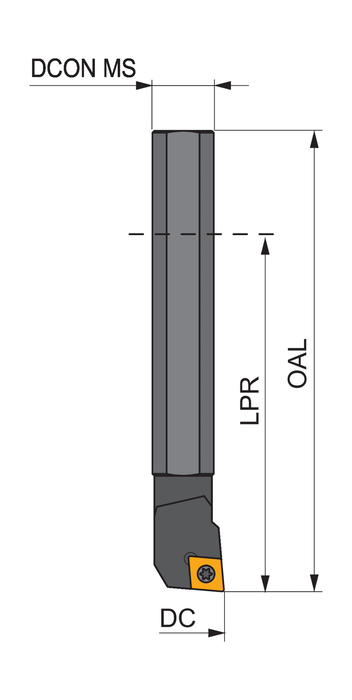

Cutting Diameter - in (DC): 0.512
Cutting Diameter - mm (DC): 13.0
Overall Length (OAL): 3.543
Connetion Diameter: 0.394
EDP: 6760720
EAN: 3603602960665
MFG Part Number: 6760720
