S16J SCLCR 09-B
SKU DOR6760722

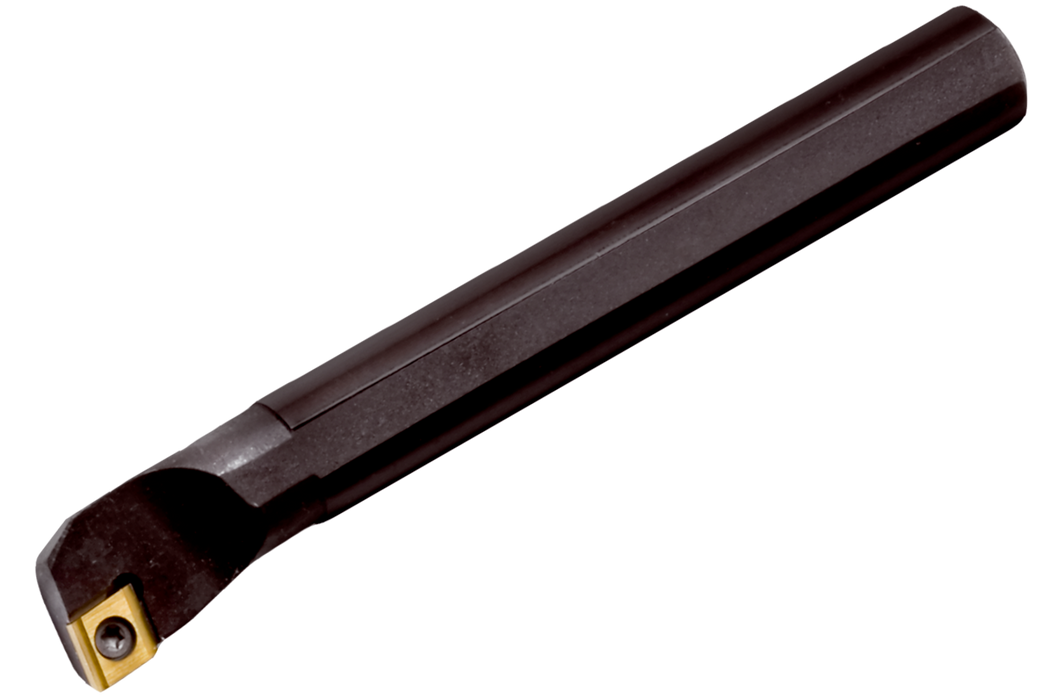

Screw clamp boring bar for holding a 80° rhombic shape positive insert with an inscribed circle diameter 9.525mm, 3.97mm thick (ISO designation CC.. 09T3.. ), right hand 95° side and end cutting with off-set shank, steel without coolant hole, 16mm diameter 74mm protrusion length for cone boring and longitudinal boring with and without shoulder
Inventory
Sold in packs of: 1
For more information about this product,
click here
Original price
$415.00
-
Original price
$415.00
Original price
$415.00
$415.00
-
$415.00
Current price
$415.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

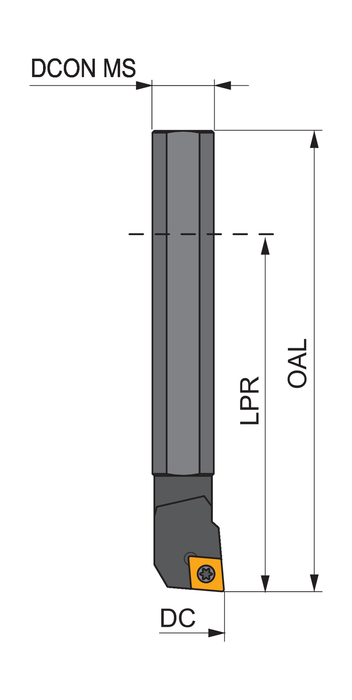

Cutting Diameter - in (DC): 0.787
Cutting Diameter - mm (DC): 20.0
Overall Length (OAL): 4.331
Connetion Diameter: 0.63
EDP: 6760722
EAN: 3603602960689
MFG Part Number: 6760722
