E12K-SVXCR 07
SKU DOR6760761
Primary Use:
Possible Use:

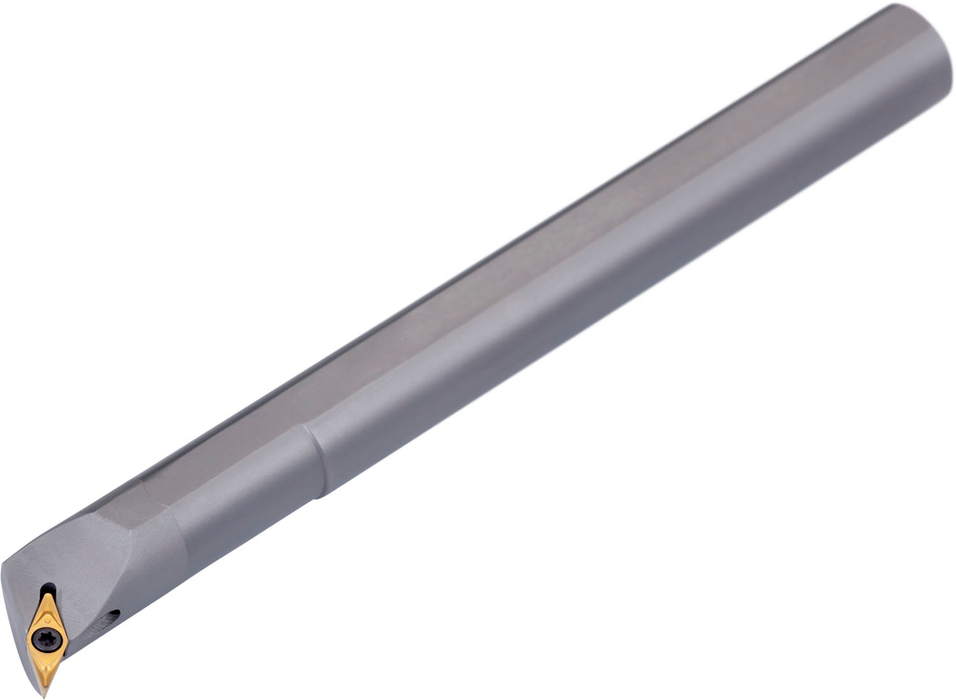

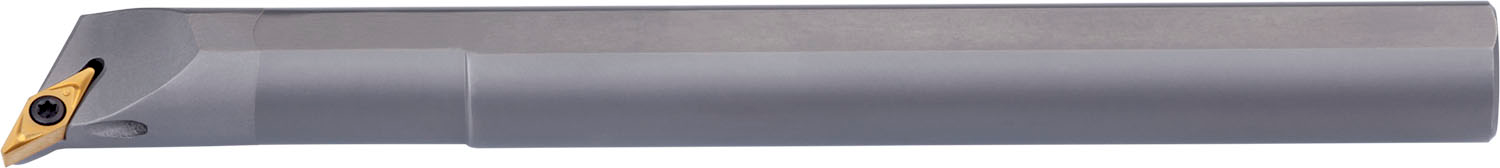

Screw clamp boring bar for holding a 35° rhombus positive insert with an inscribed circle diameter of 3.97mm, 2.38mm thick (ISO designation VC.. 0702.. ), right hand special tool style, carbide with coolant hole, 12mm diameter x 125mm long for single and multi-directional copy boring
Inventory
Sold in packs of: 1
For more information about this product,
click here
Original price
$699.00
-
Original price
$699.00
Original price
$699.00
$699.00
-
$699.00
Current price
$699.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

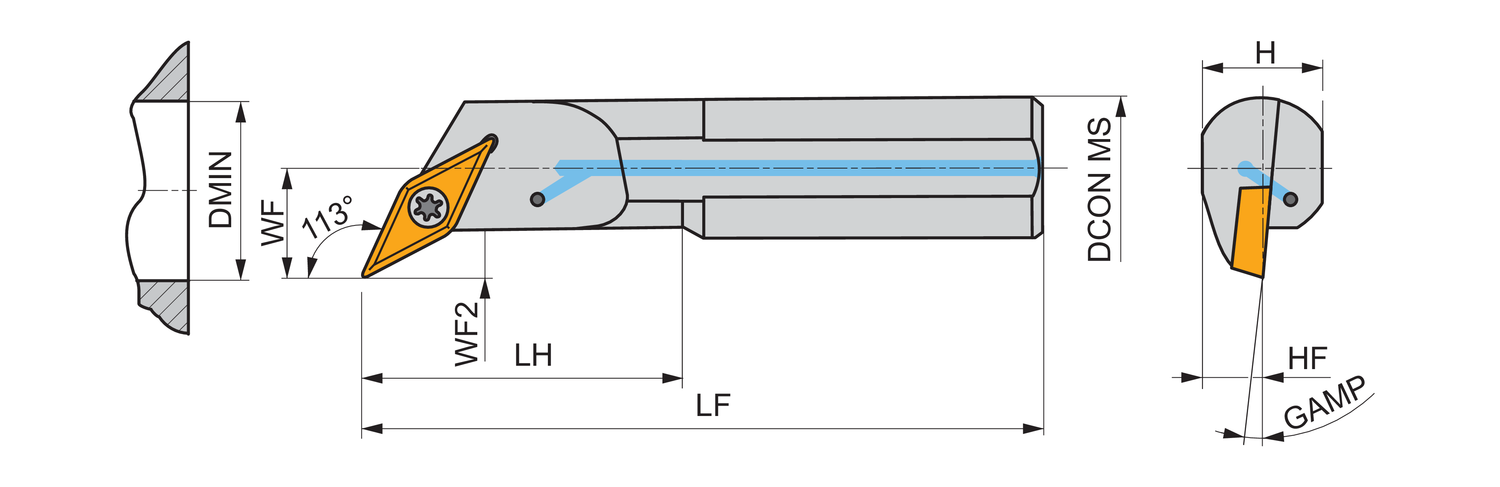

Through Coolant: 1
Connetion Diameter: 0.472
Height: 0.433
Minimum Bore: 0.61
Insert Designation: ["VC.. 0702.."]
Functional Length: 4.921
EDP: 6760761
EAN: 3603602961075
MFG Part Number: 6760761
