E0608H-SEXPL 05
SKU DOR6760772
Primary Use:

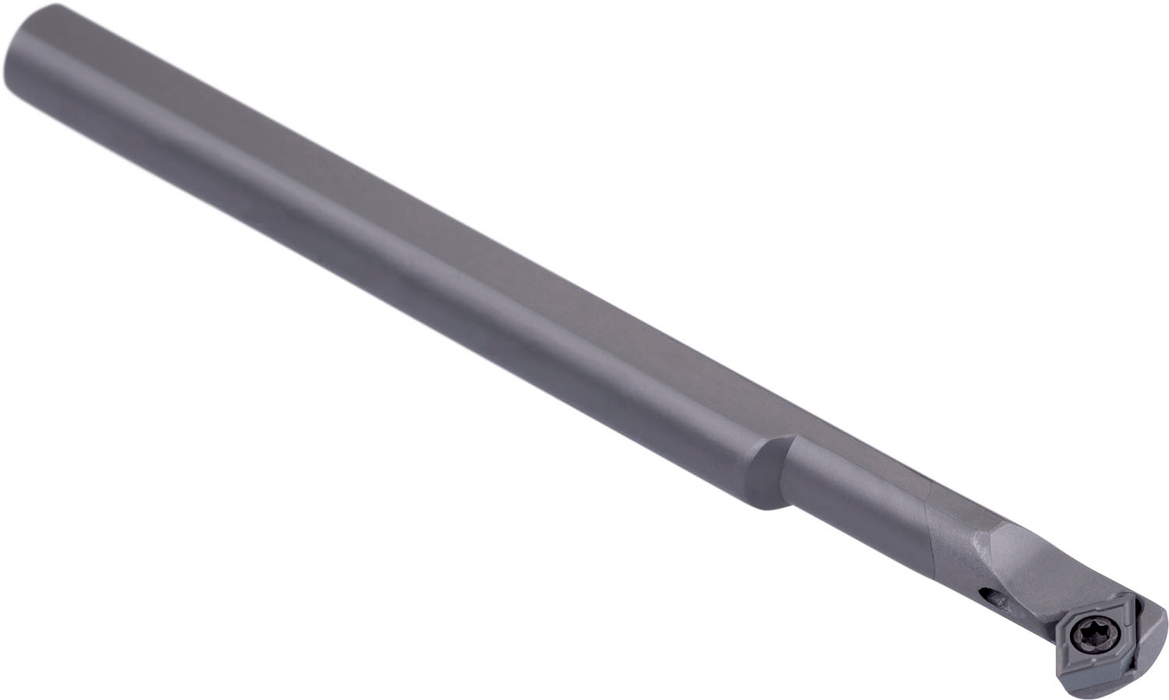

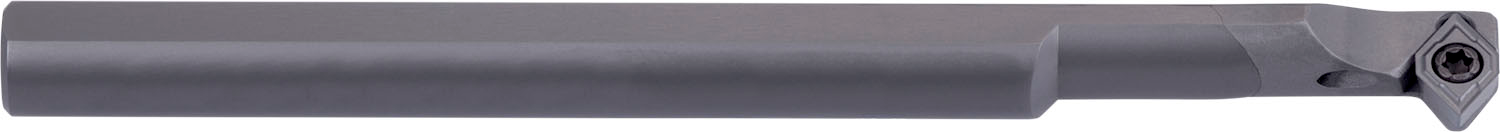

Screw clamp boring bar for holding a 75° rhombus positive insert with an inscribed circle diameter of 5.56mm, 2.38mm thick (ISO designation EP.. 0502.. ), left hand special tool style, carbide with coolant hole, 6mm diameter x 100mm long for taper boring, single and multi-directional copy boring and back chamfering
Inventory
Sold in packs of: 1
For more information about this product,
click here
Original price
$663.00
-
Original price
$663.00
Original price
$663.00
$663.00
-
$663.00
Current price
$663.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

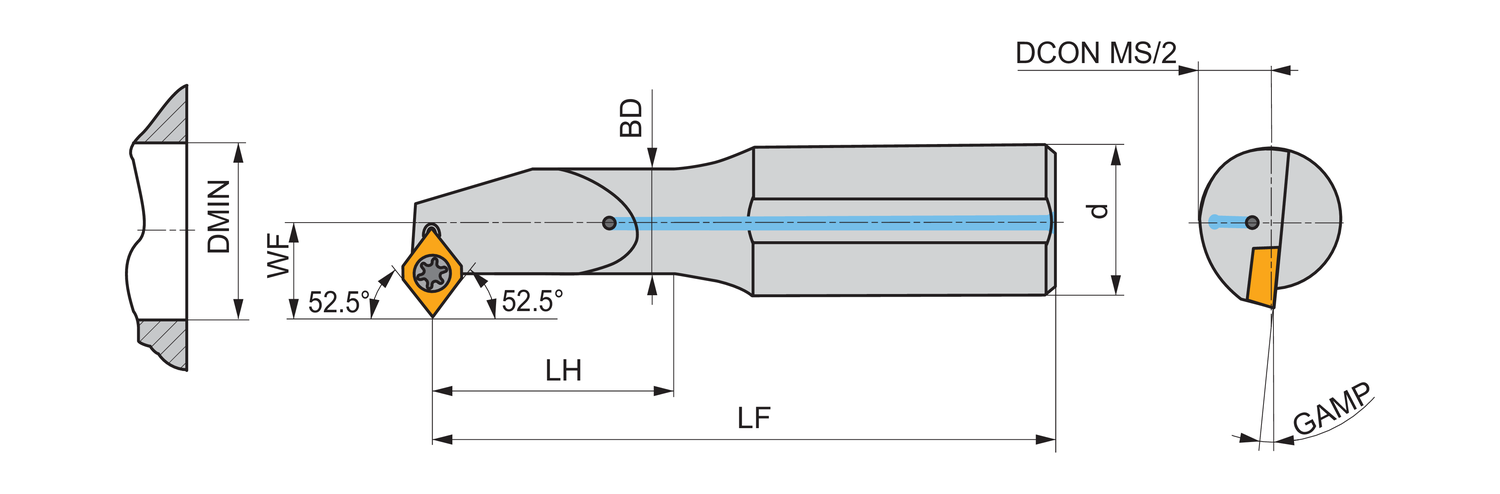

Through Coolant: 1
Connetion Diameter: 0.315
Minimum Bore: 0.374
Insert Designation: ["EP.. 0502.."]
Functional Length: 3.937
EDP: 6760772
EAN: 3603602961181
MFG Part Number: 6760772
