E1012K-SEXPR 05
SKU DOR6760775
Primary Use:

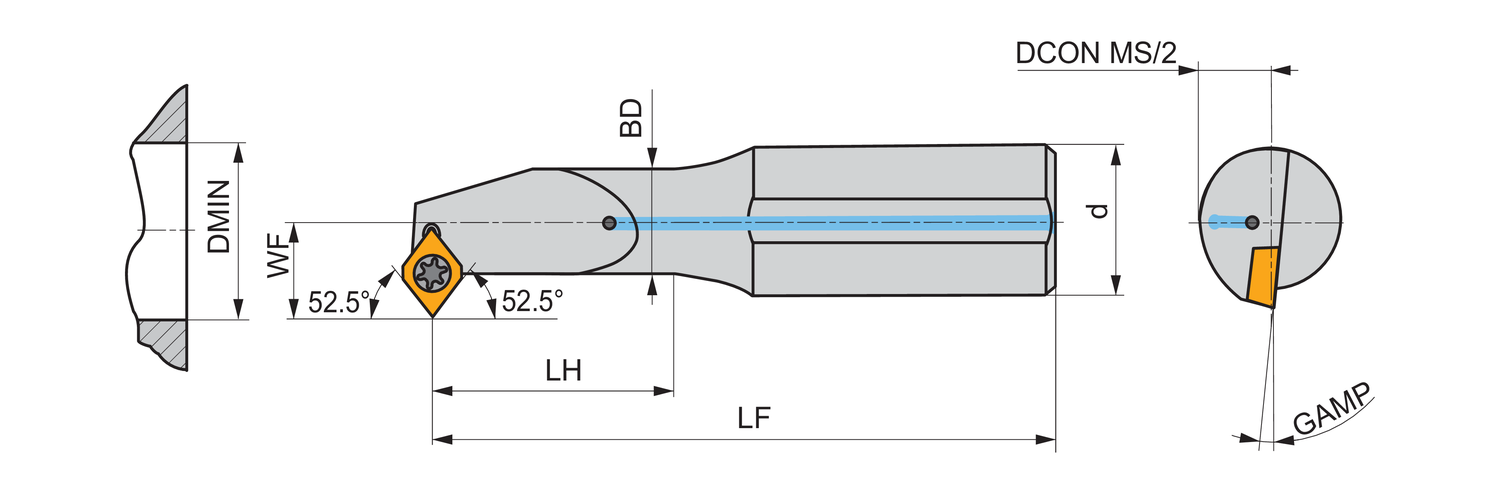

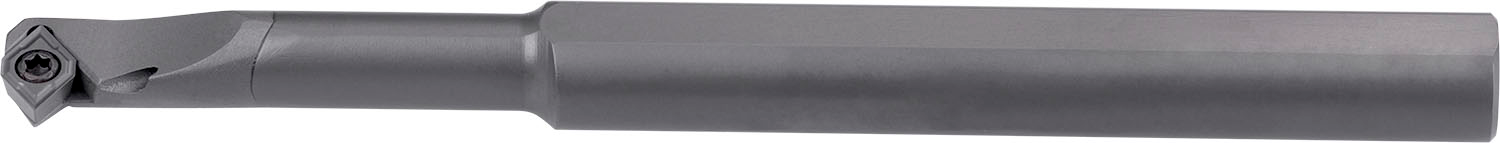

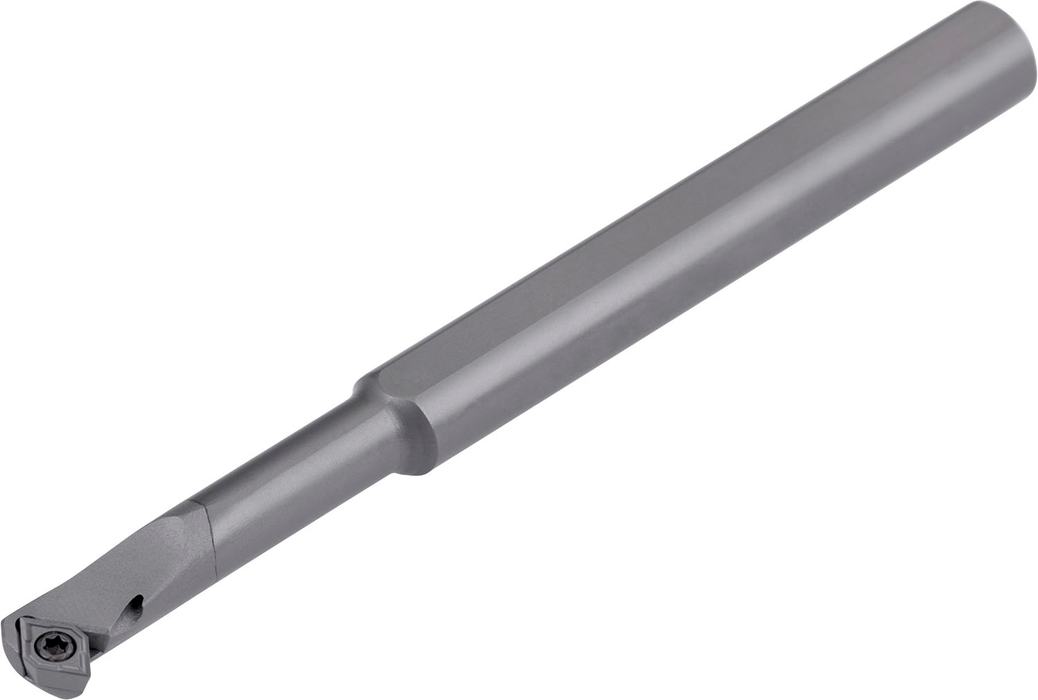

Screw clamp boring bar for holding a 75° rhombus positive insert with an inscribed circle diameter of 5.56mm, 2.38mm thick (ISO designation EP.. 0502.. ), right hand special tool style, carbide with coolant hole, 10mm diameter x 125mm long for taper boring, single and multi-directional copy boring and back chamfering
Inventory
Sold in packs of: 1
For more information about this product,
click here
Original price
$957.00
-
Original price
$957.00
Original price
$957.00
$957.00
-
$957.00
Current price
$957.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
Through Coolant: 1
Connetion Diameter: 0.472
Minimum Bore: 0.512
Insert Designation: ["EP.. 0502.."]
Functional Length: 4.921
EDP: 6760775
EAN: 3603602961211
MFG Part Number: 6760775
