A25T-SVLCL 13-X
SKU DOR6760907
Primary Use:
Possible Use:

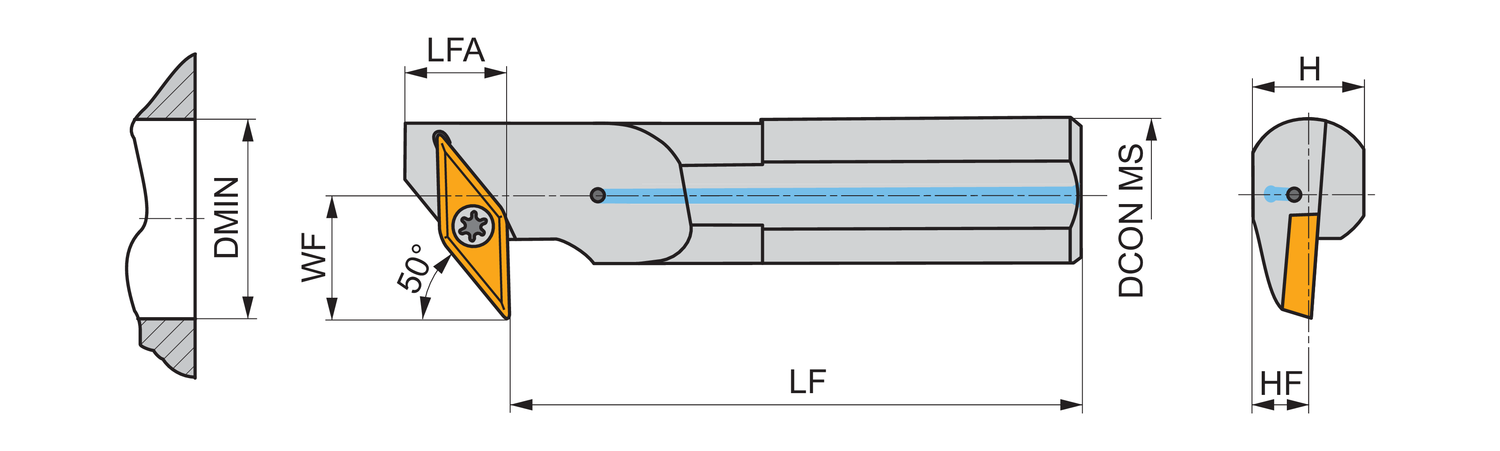

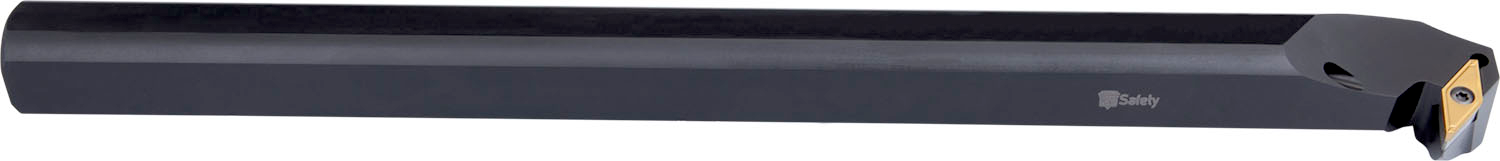

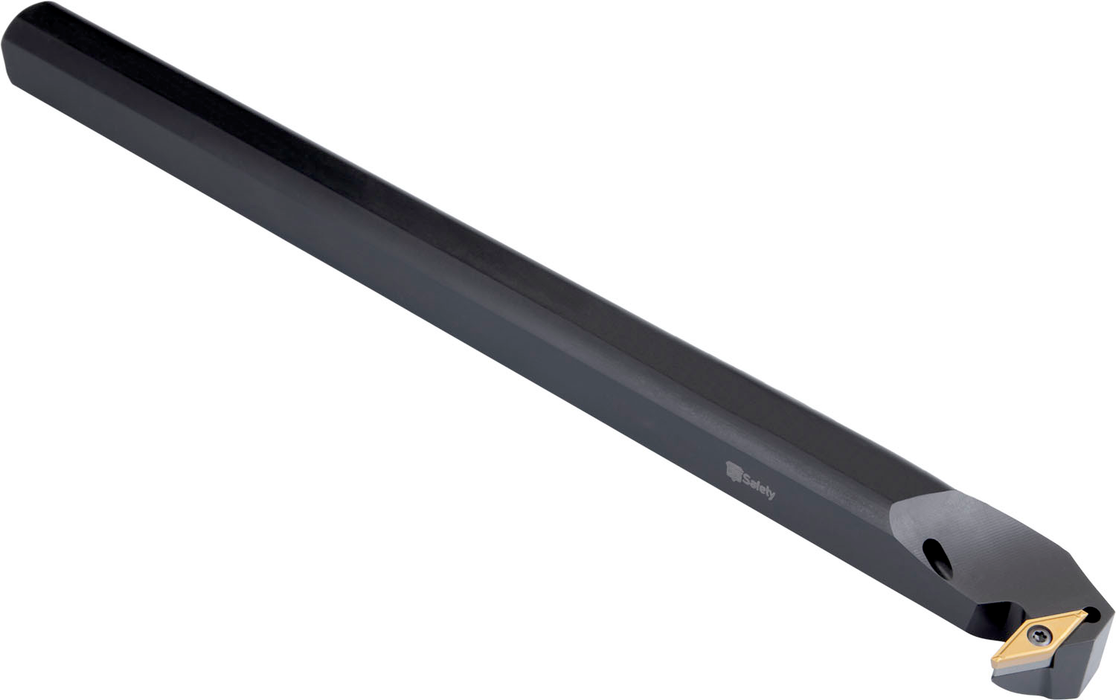

Screw clamp boring bar for holding a 35° rhombus positive insert with an inscribed circle diameter of 7.94mm, 3.18mm thick (ISO designation VC.. 1303.. ), left hand 95° side and end cutting with off-set shank, steel with coolant hole, 25mm diameter x 300mm long for back chamfering
Inventory
Sold in packs of: 1
For more information about this product,
click here
Original price
$293.00
-
Original price
$293.00
Original price
$293.00
$293.00
-
$293.00
Current price
$293.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
Through Coolant: 1
Connetion Diameter: 0.984
Height: 0.945
Minimum Bore: 1.378
Insert Designation: ["VC.. 1303.."]
Functional Length: 11.811
EDP: 6760907
EAN: 3603602962539
MFG Part Number: 6760907
