A25T-SVUCR 13

A25T-SVUCR 13

SKU DOR6760909
by Dormer Pramet
Primary Use: Possible Use:

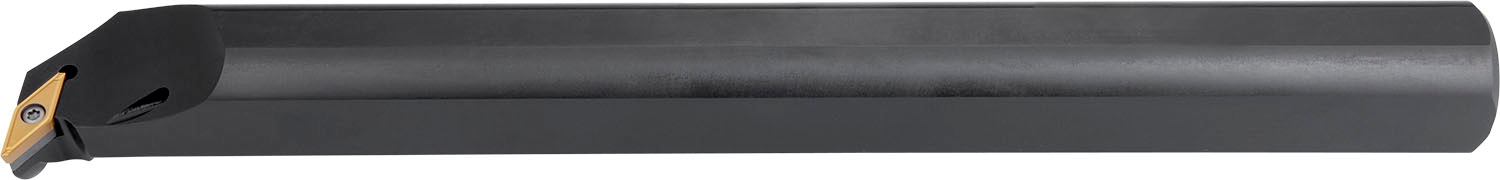

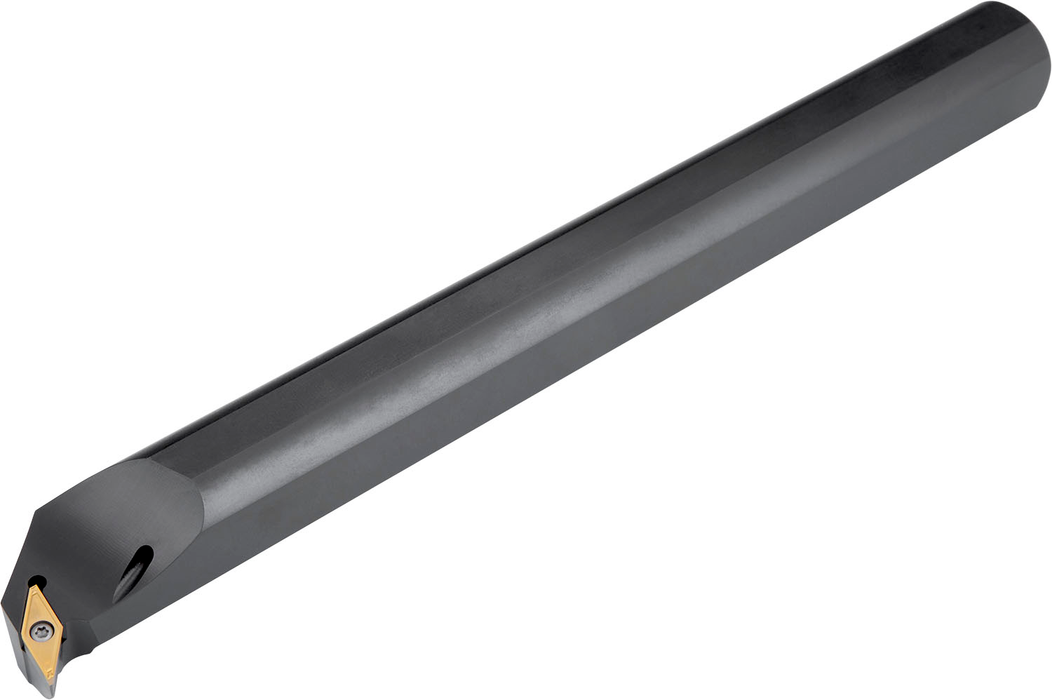

Screw clamp boring bar for holding a 35° rhombus positive insert with an inscribed circle diameter of 7.94mm, 3.18mm thick (ISO designation VC.. 1303.. ), right hand 93° end cutting with off-set shank, steel with coolant hole, 25mm diameter x 300mm long for single and multi-directional copy boring and back chamfering

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$293.00 - $293.00
$293.00
$293.00 - $293.00
$293.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

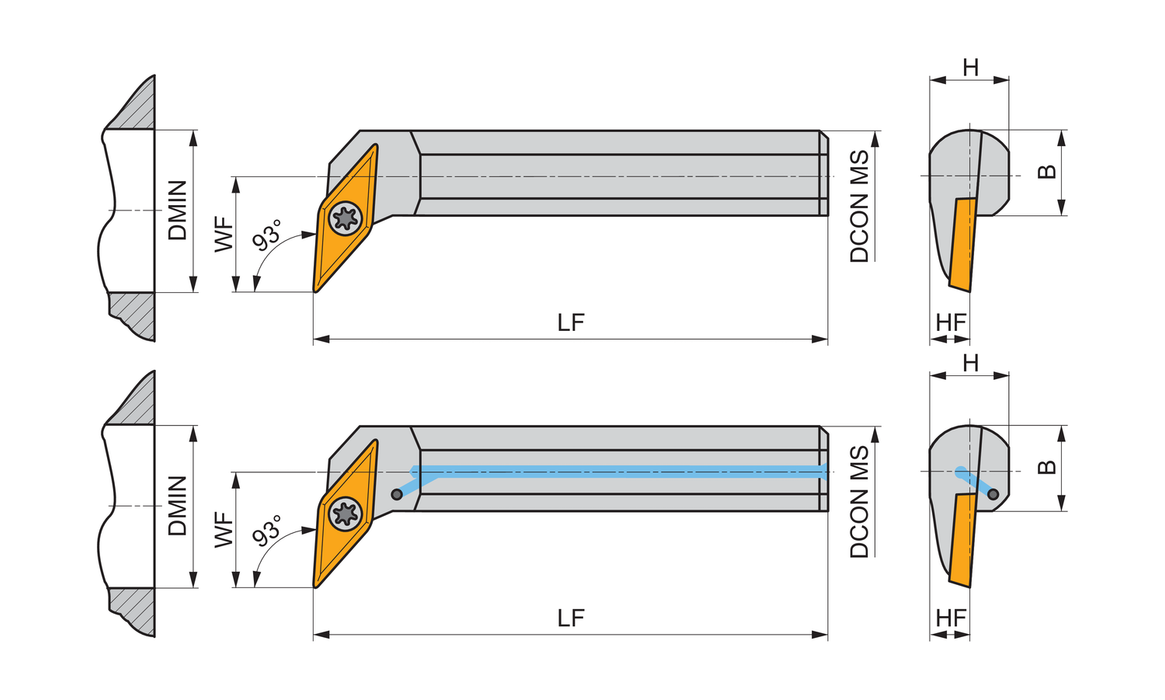

Through Coolant: 1

Connetion Diameter: 0.984

Height: 0.945

Minimum Bore: 1.26

Tool Direction: Right

Insert Designation: ["VC.. 1303.."]

Functional Length: 11.811

EDP: 6760909

EAN: 3603602962553

MFG Part Number: 6760909
