AS 350 054 090 R
Availability in Distribution Centers:
Sold in packs of: 1
Sold in packs of: 1

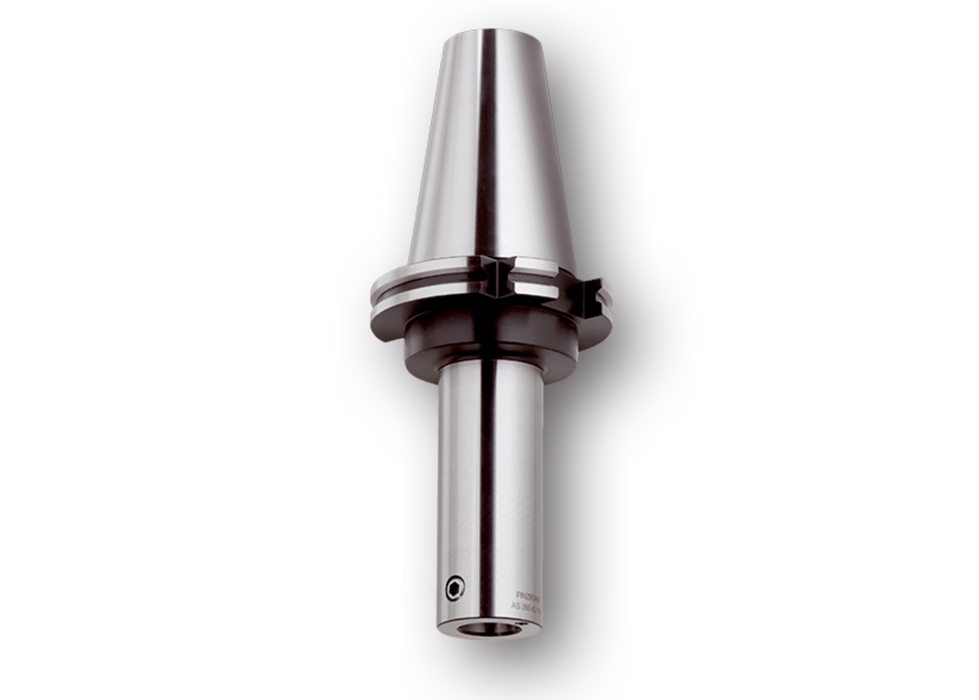

Tool shank for modular boring system size 54 with (DIN 69871) SK 50 taper shank according to ISO/DIS 7388-1, through coolant feed and 90 protrusion length (including the boring head )
For more information about this product, click here
| Identification | |
| Ordering Code (ANSI/ISO) | AS 350 054 090 R |
| Product Number | 6761497 |
| Product Family | 69871-BS |
| Dimensions | |
| Usable Length — mm (LU) | 90.0 mm |
| Functional Length — mm (LF) | 128.0 mm |
| Tool Information | |
| Through Coolant | Yes |
| Reference Numbers | |
| EDP Number | 6761497 |
| EAN | 3603602968432 |
| File | Type | Download |
|---|---|---|

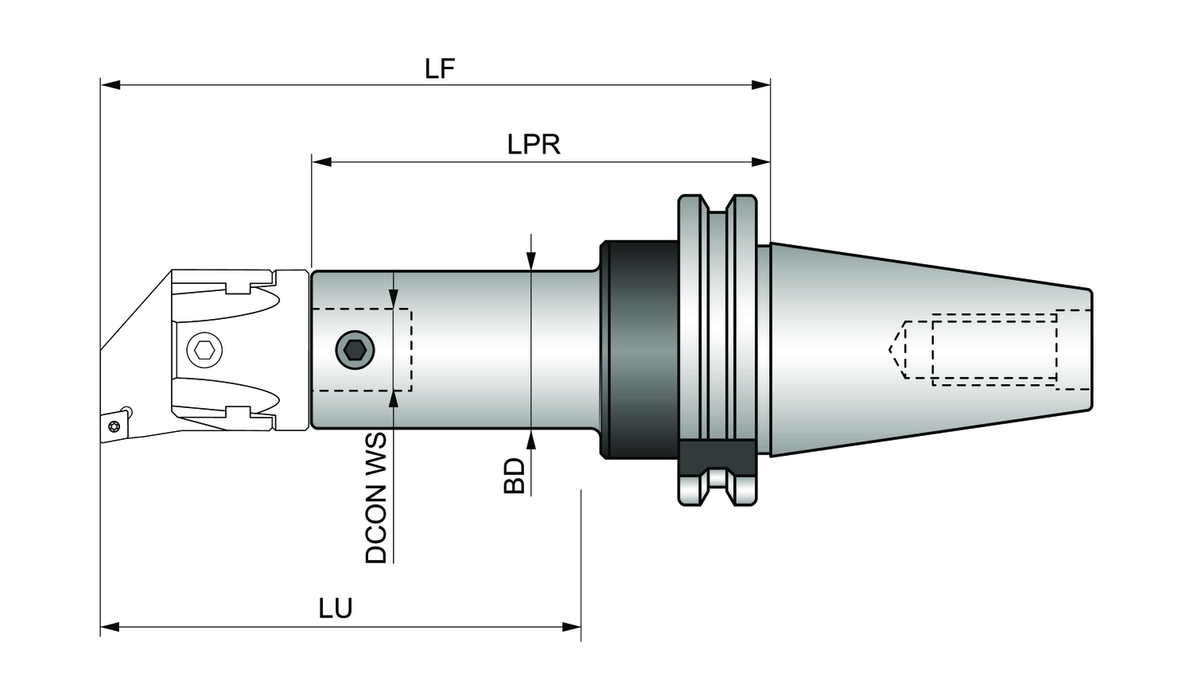

| AS 350 054 090 R — Line Drawing | Download |
