40J4R090H40-CSD12X44

40J4R090H40-CSD12X44

SKU DOR6761737
by Dormer Pramet
Primary Use:

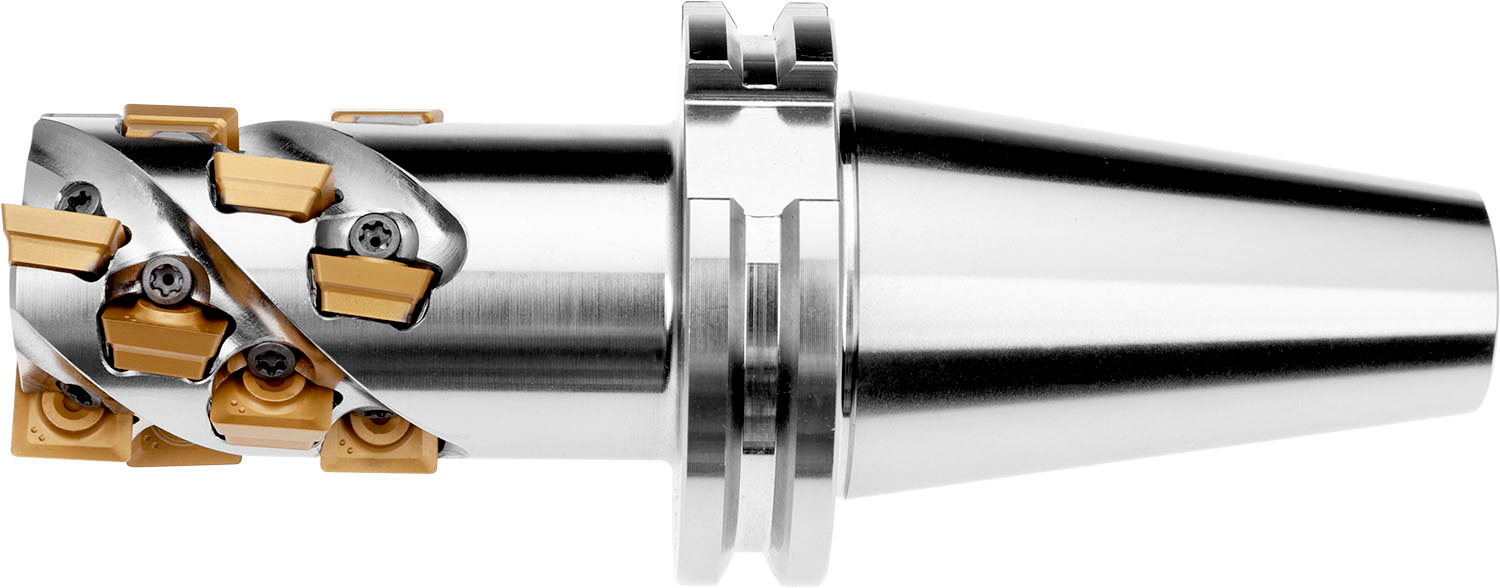

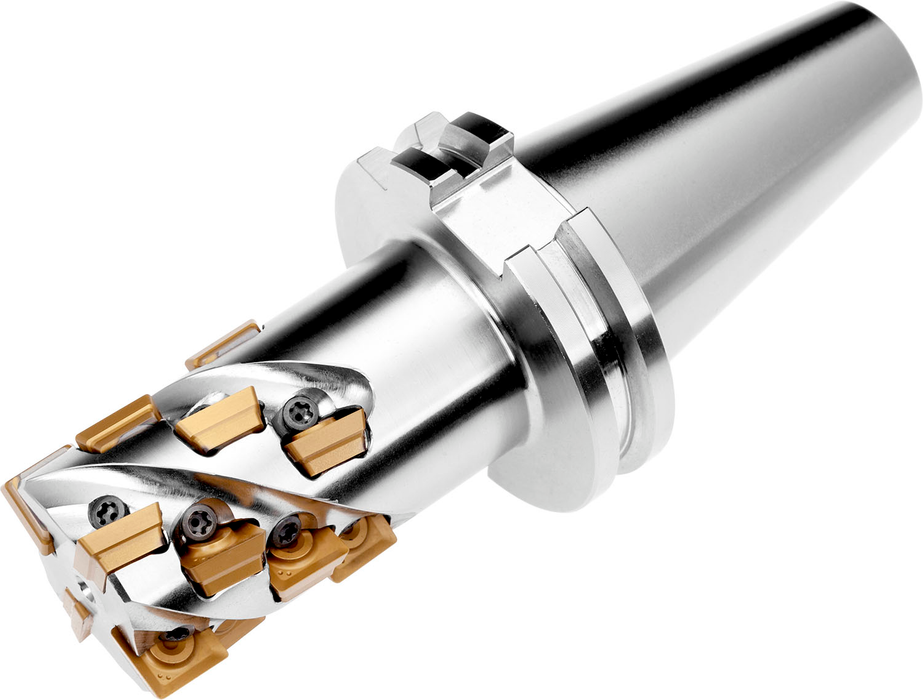

Shoulder mill with extended flute with positve/negative geometry which utilises 16 off SDGX 1205.. or SDMX 1205.. single-sided inserts, cutting diameter 40mm with 90° approach angle and SK 40 taper shank according to ISO/DIS 7388-1, 70mm functional and 158.4mm overall length for deep shoulder milling and deep slot milling with a maximum depth of cut of 44,1mm

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$2,377.00 - $2,377.00
$2,377.00
$2,377.00 - $2,377.00
$2,377.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

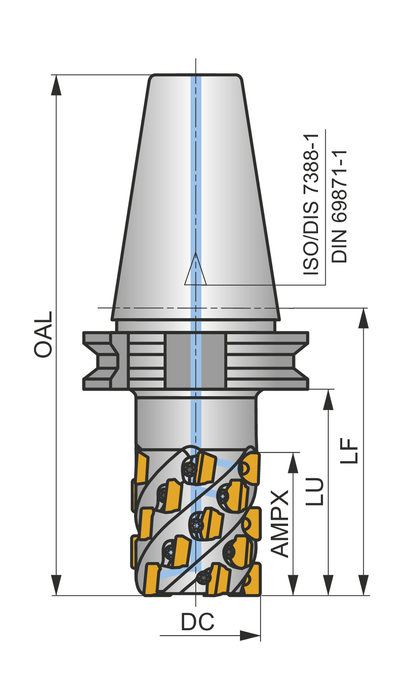

Cutting Diameter - in (DC): 1.575

Cutting Diameter - mm (DC): 40.0

Through Coolant: 1

Overall Length (OAL): 6.236

Tool Direction: Right

Shank: Arbor DIN 69871-1

Cutter Design: J(T)-CSD12X

Cutting Edge Count: 16

EDP: 6761737

EAN: 3603602970831

MFG Part Number: 6761737
