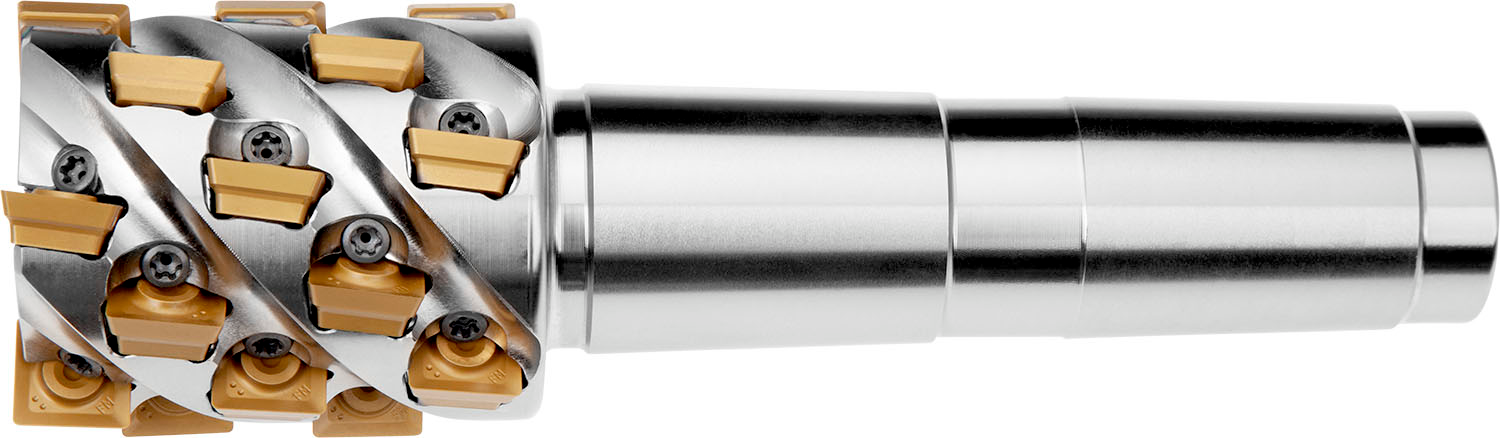

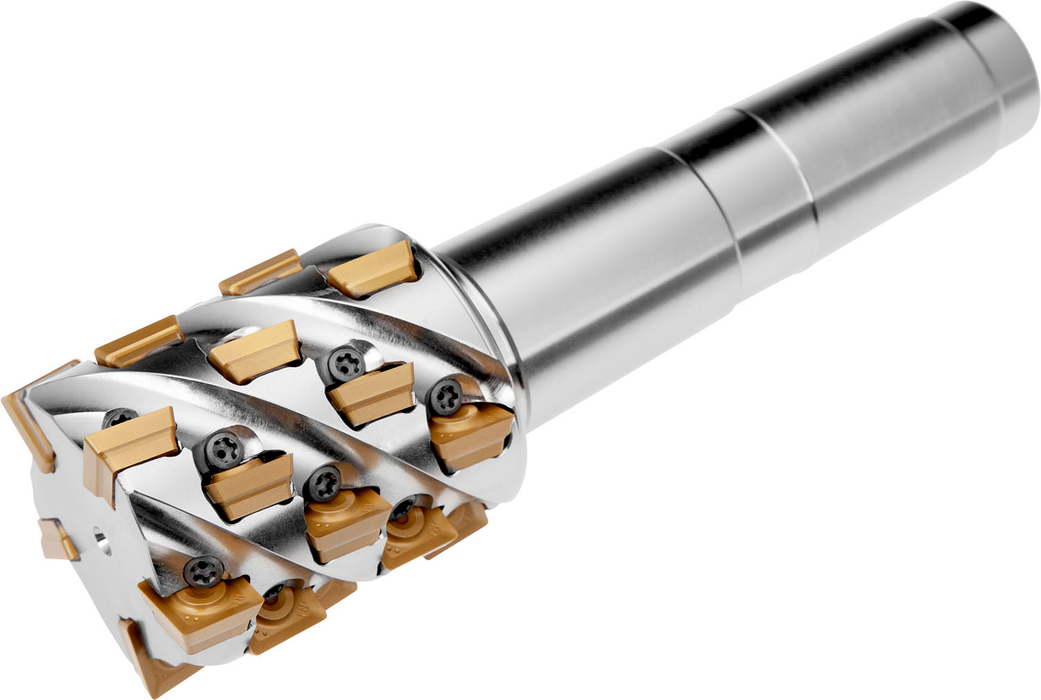

50J5R065E04-CSD12X55

50J5R065E04-CSD12X55

SKU DOR6761741
by Dormer Pramet
Primary Use:

Shoulder mill with extended flute with positve/negative geometry which utilises 25 off SDGX 1205.. or SDMX 1205.. single-sided inserts, cutting diameter 50mm with 90° approach angle and MT 4 morse taper shank according to DIN 228-1A, 167.5mm overall length for deep shoulder milling and deep slot milling with a maximum depth of cut of 54,9mm

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$2,384.00 - $2,384.00
$2,384.00
$2,384.00 - $2,384.00
$2,384.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

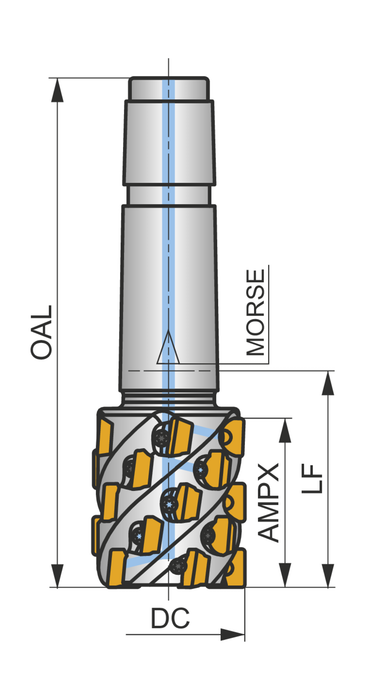

Cutting Diameter - in (DC): 1.969

Cutting Diameter - mm (DC): 50.0

Through Coolant: 1

Overall Length (OAL): 6.594

Tool Direction: Right

Shank: Morse shank DIN 228-1

Cutter Design: J(T)-CSD12X

Cutting Edge Count: 25

EDP: 6761741

EAN: 3603602970879

MFG Part Number: 6761741
