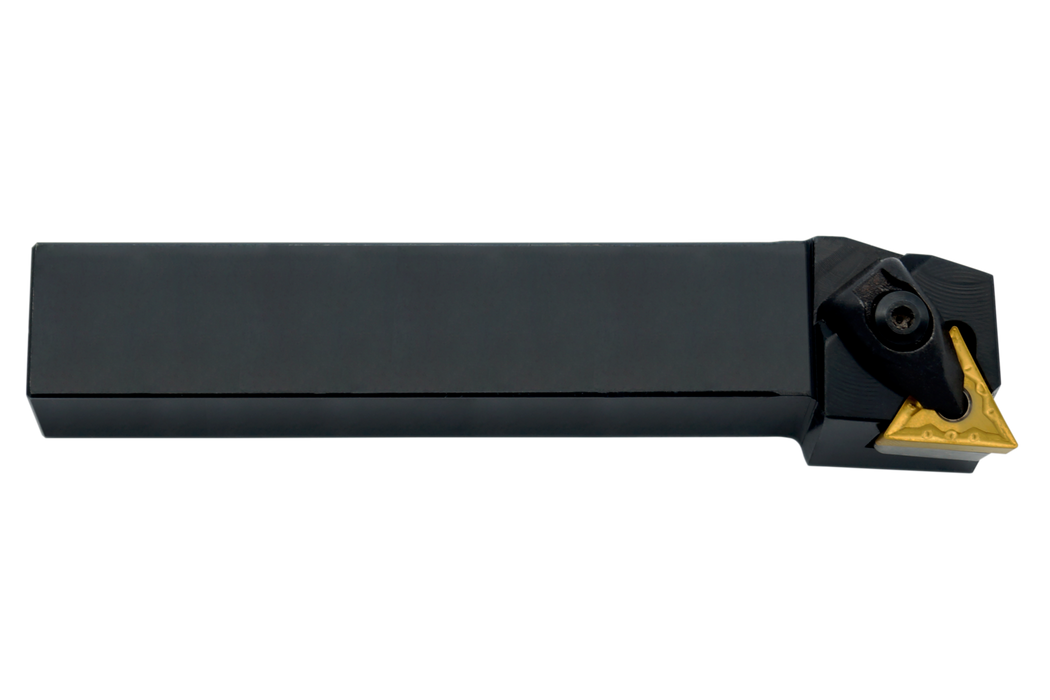

DTJNL 12 3B
SKU DOR6788520
Primary Use:
Possible Use:

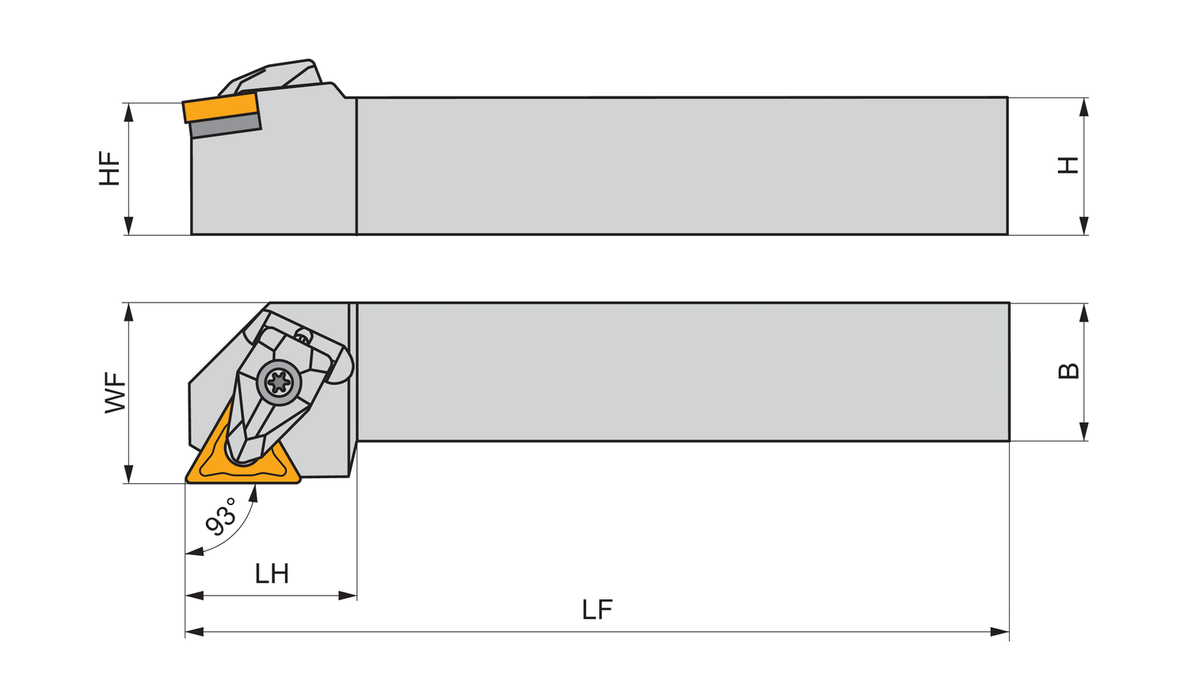

Double clamp turning tool for holding a triangular negative insert with an inscribed circle diameter of 3/8'', 3/16'' thick (ANSI designation TN.. 33. ), left hand 93° side cutting with off-set shank, 3/4'' tool height x 3/4'' width x 4.1/2'' long for taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder
Inventory
Sold in packs of: 1
For more information about this product,
click here
Original price
$156.00
-
Original price
$156.00
Original price
$156.00
$156.00
-
$156.00
Current price
$156.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
Insert Designation: ["TN.. 33."]
Functional Length: 4.5
EDP: 6788520
EAN: 3603602982810
MFG Part Number: 6788520
