DSDNN 20 6D
SKU DOR6788593
Primary Use:
Possible Use:

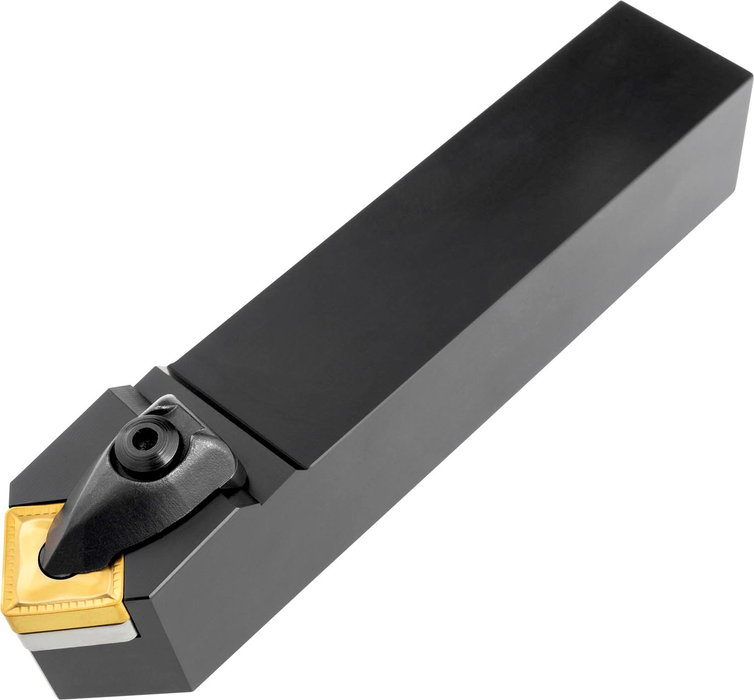

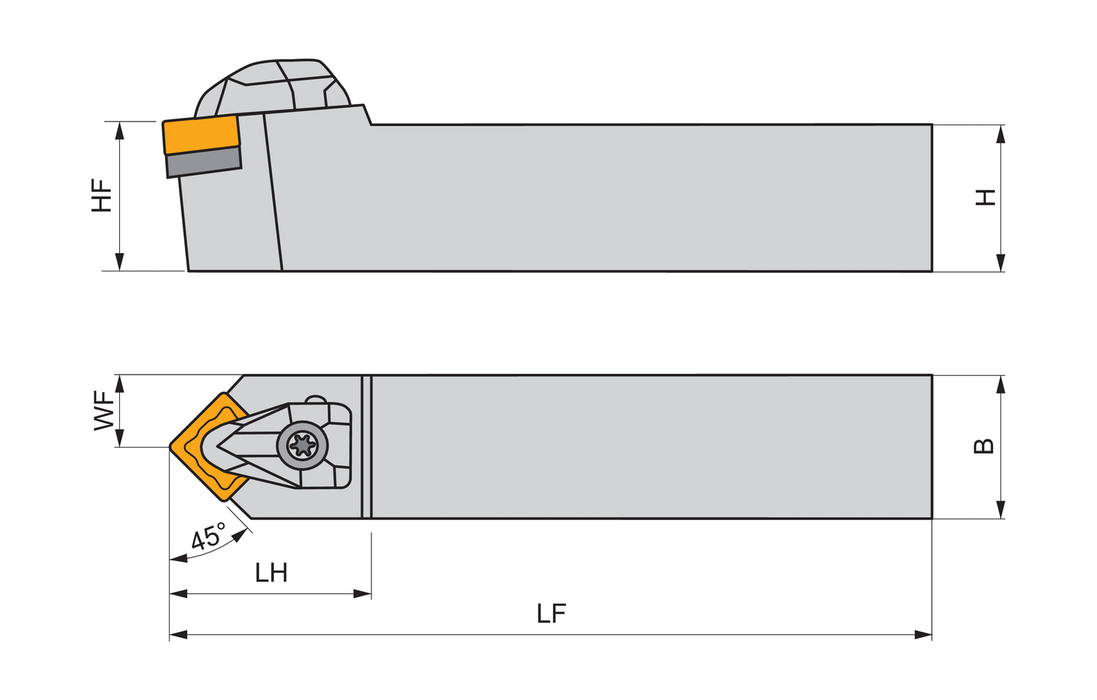

Double clamp turning tool for holding a square negative insert with an inscribed circle diameter of 3/4'', 1/4'' thick (ANSI designation SN.. 64. ), neutral hand 45° side cutting with straight shank, 1.1/4'' tool height x 1.1/4'' width x 6'' long for chamfering, taper turning, single and multi-directional copy turning and longitudinal turning without shoulder
Inventory
Sold in packs of: 1
For more information about this product,
click here
Original price
$180.00
-
Original price
$180.00
Original price
$180.00
$180.00
-
$180.00
Current price
$180.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
Tool Direction: Neutral
Insert Designation: ["SN.. 64."]
Functional Length: 6.0
EDP: 6788593
EAN: 3603602983541
MFG Part Number: 6788593
