DWLNL 12 4C
SKU DOR6788625
Primary Use:
Possible Use:

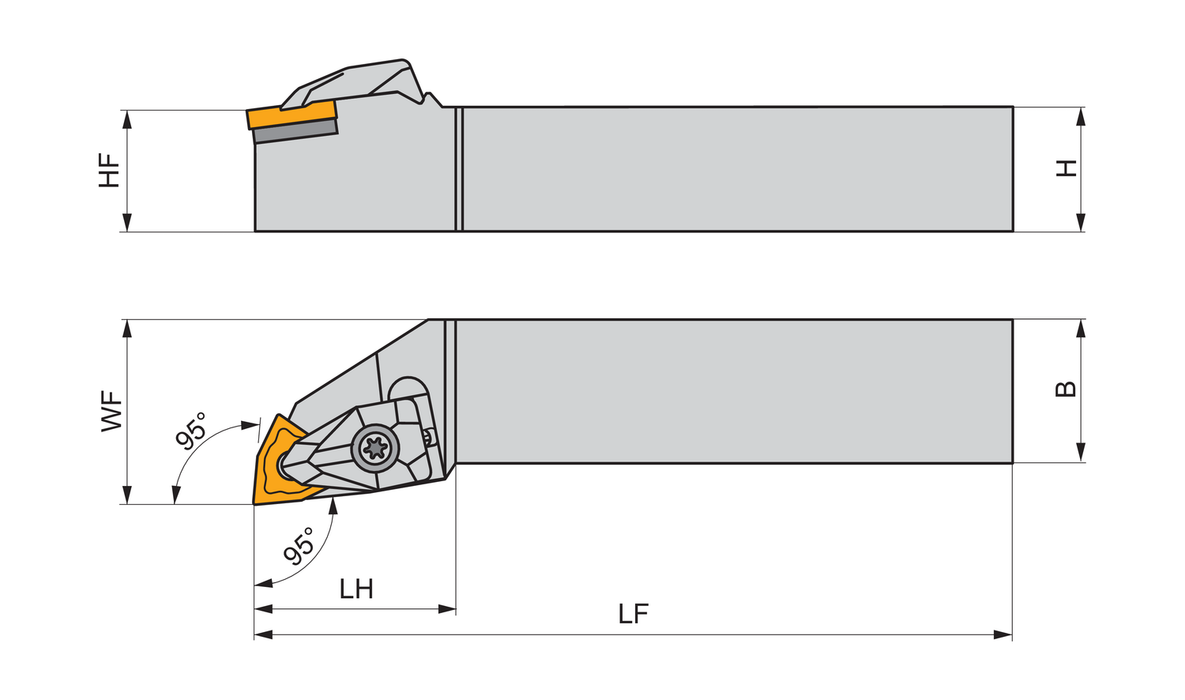

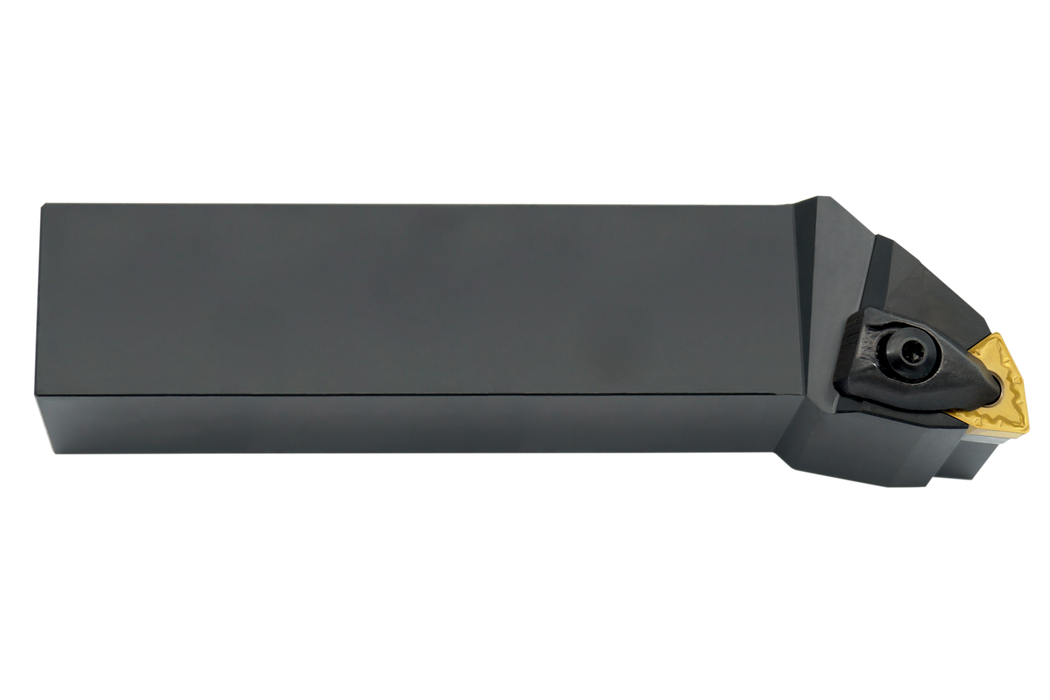

Double clamp turning tool for holding a 80° trigon negative insert with an inscribed circle diameter of 1/2'', 3/16'' thick (ANSI designation WN.. 43. ), left hand 95° side and end cutting with off-set shank, 3/4'' tool height x 3/4'' width x 5'' long for taper turning, face turning with and without shoulder and longitudinal turning with and without shoulder
Inventory
Sold in packs of: 1
For more information about this product,
click here
Original price
$156.00
-
Original price
$156.00
Original price
$156.00
$156.00
-
$156.00
Current price
$156.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
Height: 0.75
Insert Designation: ["WN.. 43."]
Functional Length: 5.0
EDP: 6788625
EAN: 3603602983862
MFG Part Number: 6788625
