SCLCL 10 3
SKU DOR6788653
Primary Use:

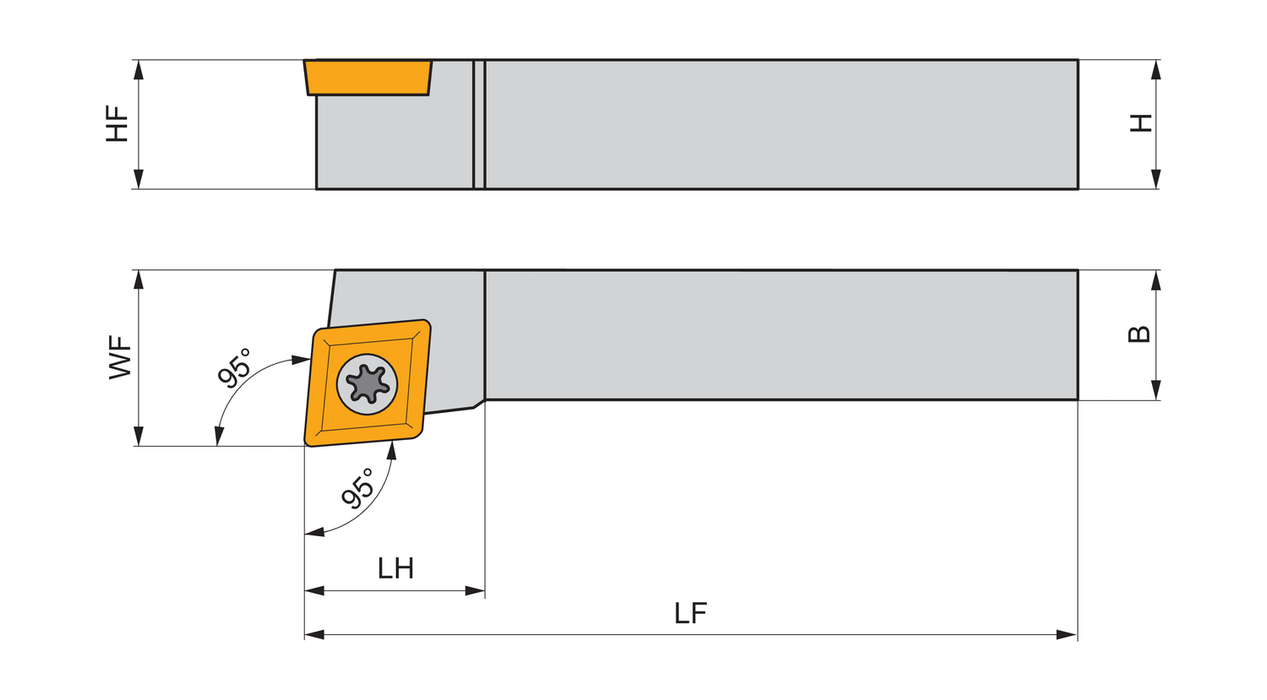

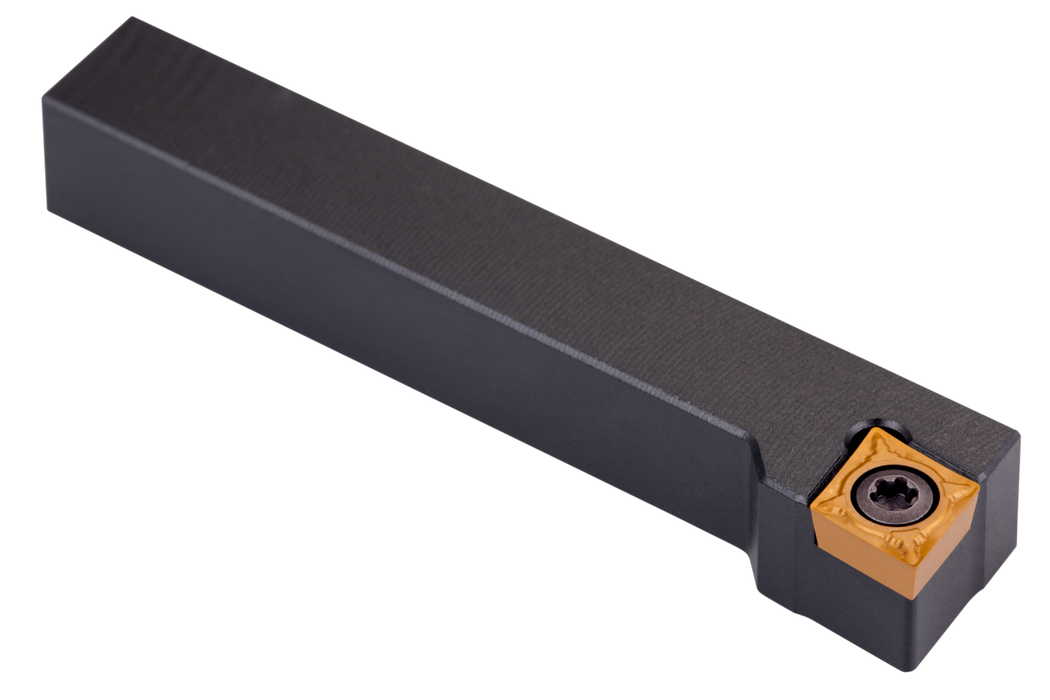

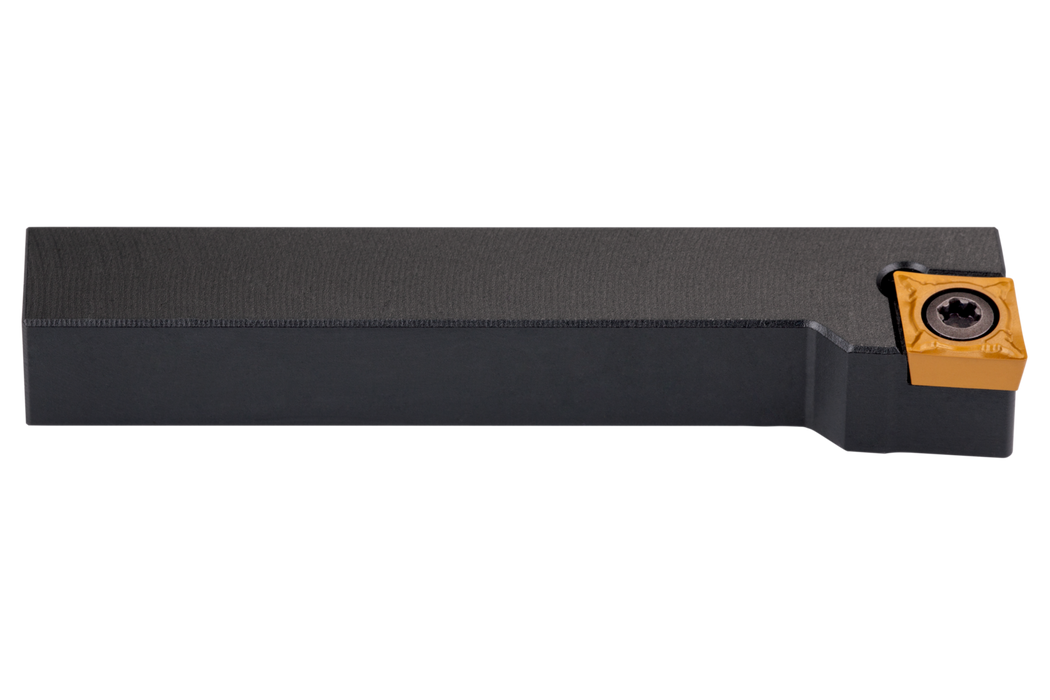

Screw clamp turning tool for holding a 80° rhombus positive insert with an inscribed circle diameter of 3/8'', 5/32'' thick (ANSI designation CC.. 32.5. ), left hand 95° side and end cutting with off-set shank, 5/8'' tool height x 5/8'' width x 4'' long for chamfering, taper turning, face turning with and without shoulder and longitudinal turning with and without shoulder
Inventory
Sold in packs of: 1
For more information about this product,
click here
Original price
$151.00
-
Original price
$151.00
Original price
$151.00
$151.00
-
$151.00
Current price
$151.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
Height: 0.625
Insert Designation: ["CC.. 32.5."]
Functional Length: 4.0
EDP: 6788653
EAN: 3603602984142
MFG Part Number: 6788653
