CNMG 432-FM:TT310

CNMG 432-FM:TT310

SKU DOR6798557
by Dormer Pramet
Primary Use: Possible Use:

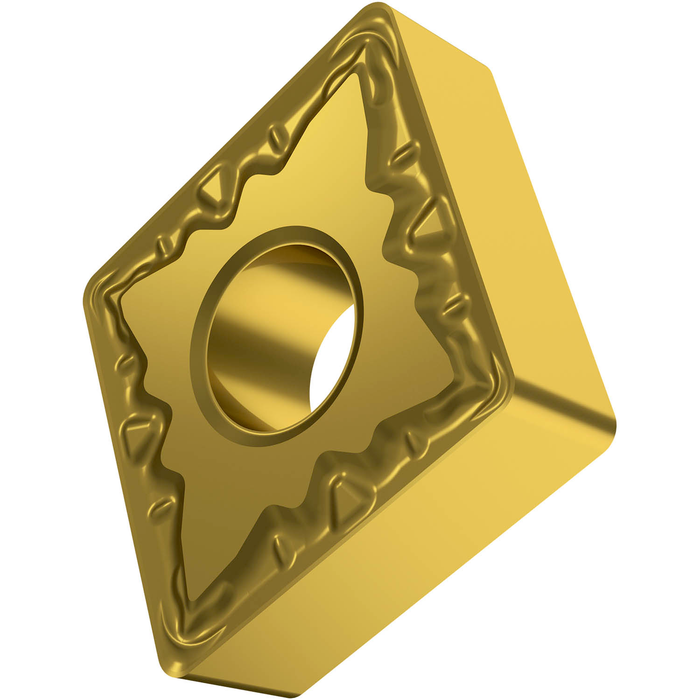

Double-sided negative turning insert, 80° rhomboid with inscribed circle diameter of 1/2", 3/16" thick, 1/32" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker FM, in grade TT310, a PVD coated cermet within ISO range P10-P25, for fine to medium machining of steels

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$14.00 - $14.00
$14.00
$14.00 - $14.00
$14.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.118

Insert Design: CNMG

Insert Shape Code: C - rhombic 80° included angle

Insert Thickness: 0.187

Inscribed Circle Diameter: 0.5

Chip Breaker: FM

Grade: TT310

Corner Radius - in: 0.031

Corner Radius - mm: 0.8

EDP: 6798557

EAN: 3603602992055

MFG Part Number: 6798557
