LNGX 120504FR-FA:HF7

LNGX 120504FR-FA:HF7

SKU DOR6798579
by Dormer Pramet
Primary Use:

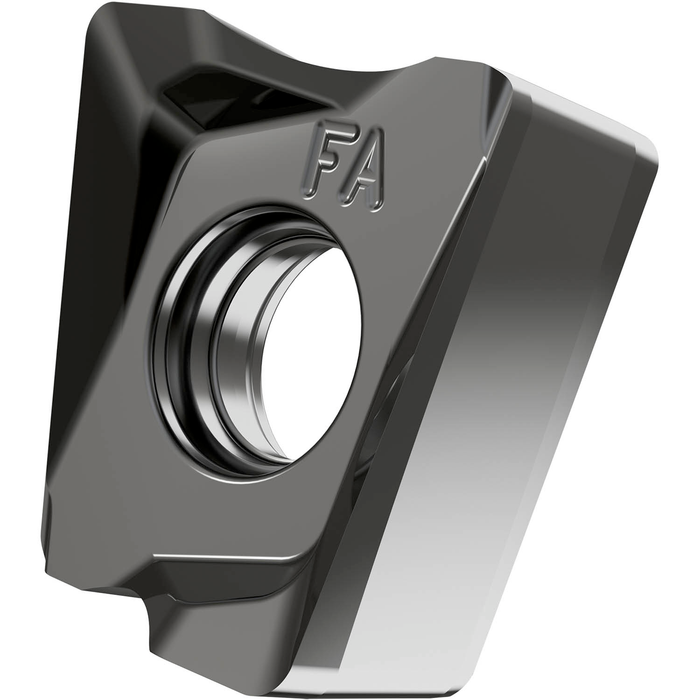

Double-sided milling insert LNGX 1205, rectangular for a maximum depth of cut of .3543", with .0157" corner radius, an indexing accuracy according to ISO-tolerance class-G and FA geometry with sharp cutting edges, HF7 uncoated fine grained WC-Co carbide within ISO-grade range N10-N25 for machining of non-ferrous metal with shoulder mills SLN12

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$31.67 - $31.67
$31.67
$31.67 - $31.67
$31.67
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

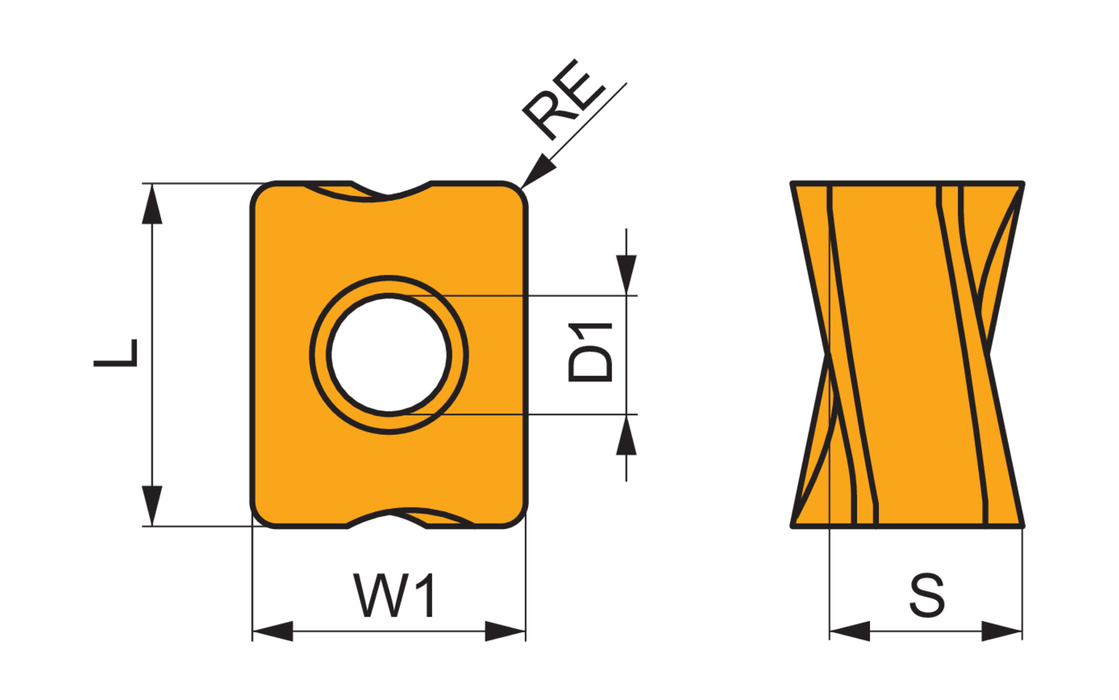

Max. Depth of Cut: 0.354

Insert Design: LNGX

Insert Shape Code: L - rectangular

Insert Thickness: 0.235

Chip Breaker: FA

Grade: HF7

Corner Radius - in: 0.016

Corner Radius - mm: 0.4

EDP: 6798579

EAN: 3603602992178

MFG Part Number: 6798579
