LNGU 120530ER-M:M8340

LNGU 120530ER-M:M8340

SKU DOR6798600
by Dormer Pramet
Primary Use: Possible Use:

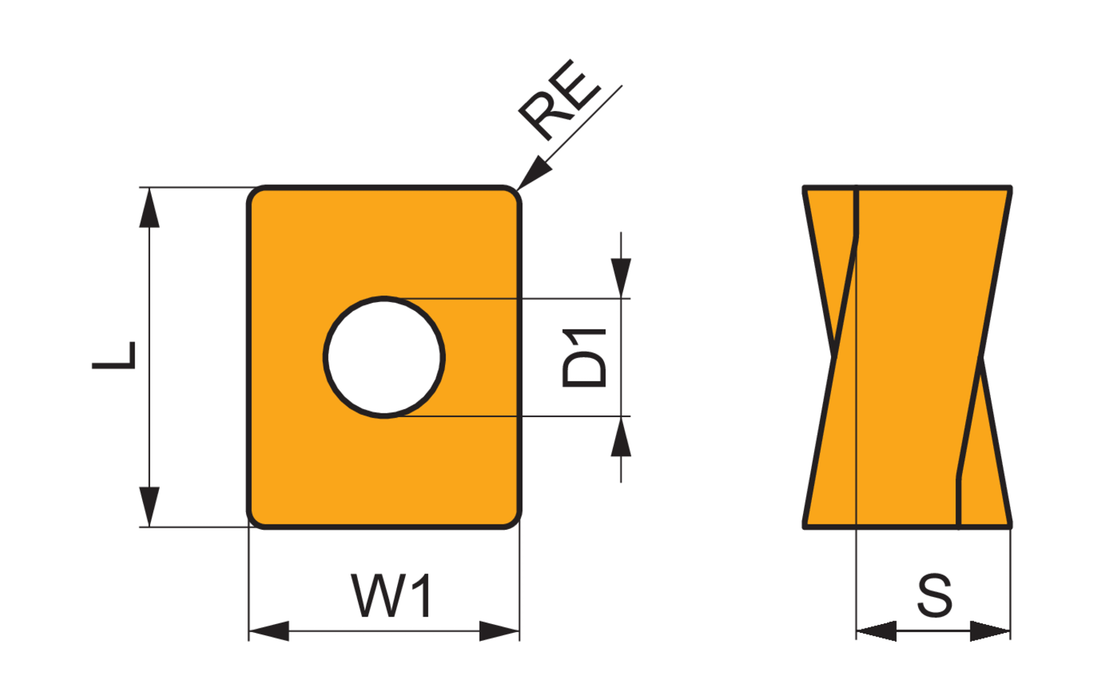

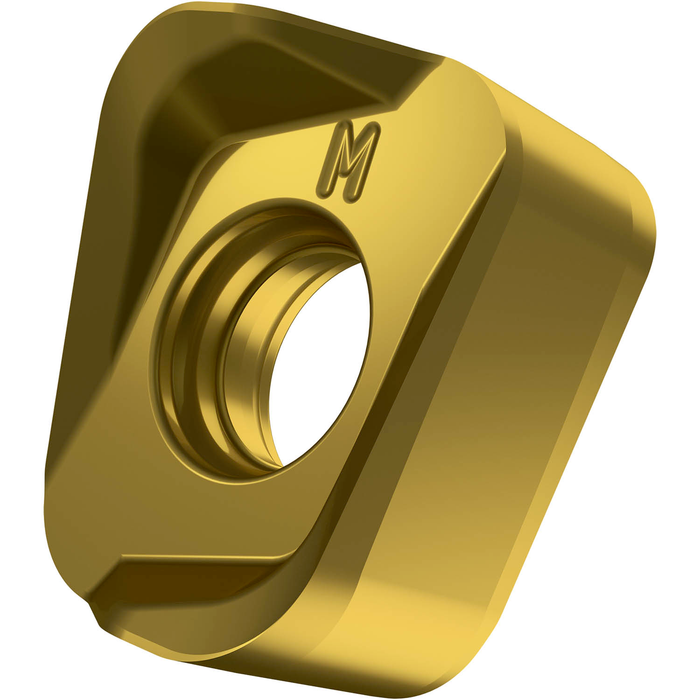

Double-sided milling insert LNGU 1205 with chip-breakers, rectangular for a maximum depth of cut of .3543", with .1181" corner radius, an indexing accuracy according to ISO-tolerance class-G and M geometry with rounded cutting edges, M8340 PVD coated fine grained WC-Co carbide within ISO-grade range P25-P50 for machining of steel with shoulder mills SLN12

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$26.66 - $26.66
$26.66
$26.66 - $26.66
$26.66
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.354

Insert Design: LNGU

Insert Shape Code: L - rectangular

Insert Thickness: 0.235

Chip Breaker: M

Grade: M8340

Corner Radius - in: 0.118

Corner Radius - mm: 3

EDP: 6798600

EAN: 3603602992383

MFG Part Number: 6798600
