LNGX 120516SR-R:M8340

LNGX 120516SR-R:M8340

SKU DOR6798610
by Dormer Pramet
Primary Use: Possible Use:

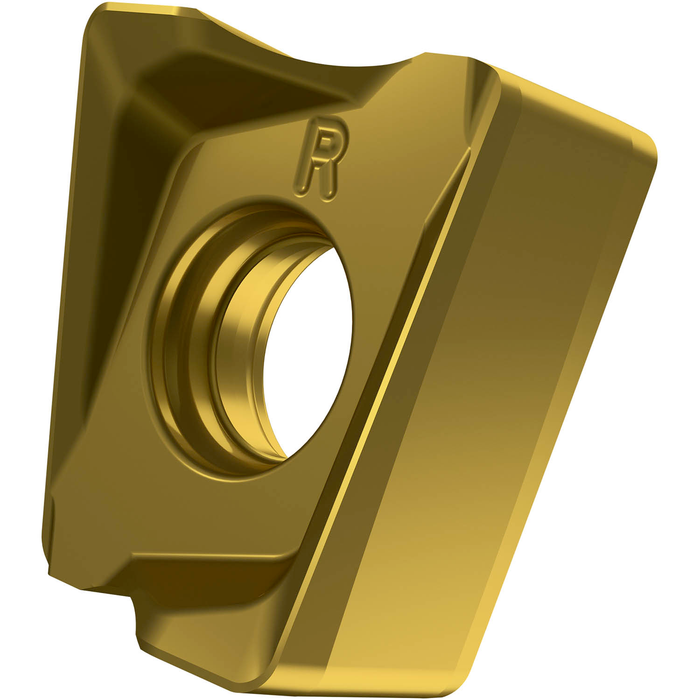

Double-sided milling insert LNGX 1205, rectangular for a maximum depth of cut of .3543", with .063" corner radius, an indexing accuracy according to ISO-tolerance class-G and R geometry with rounded cutting edges and facet, M8340 PVD coated fine grained WC-Co carbide within ISO-grade range P25-P50 for machining of steel with shoulder mills SLN12

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$29.61 - $29.61
$29.61
$29.61 - $29.61
$29.61
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

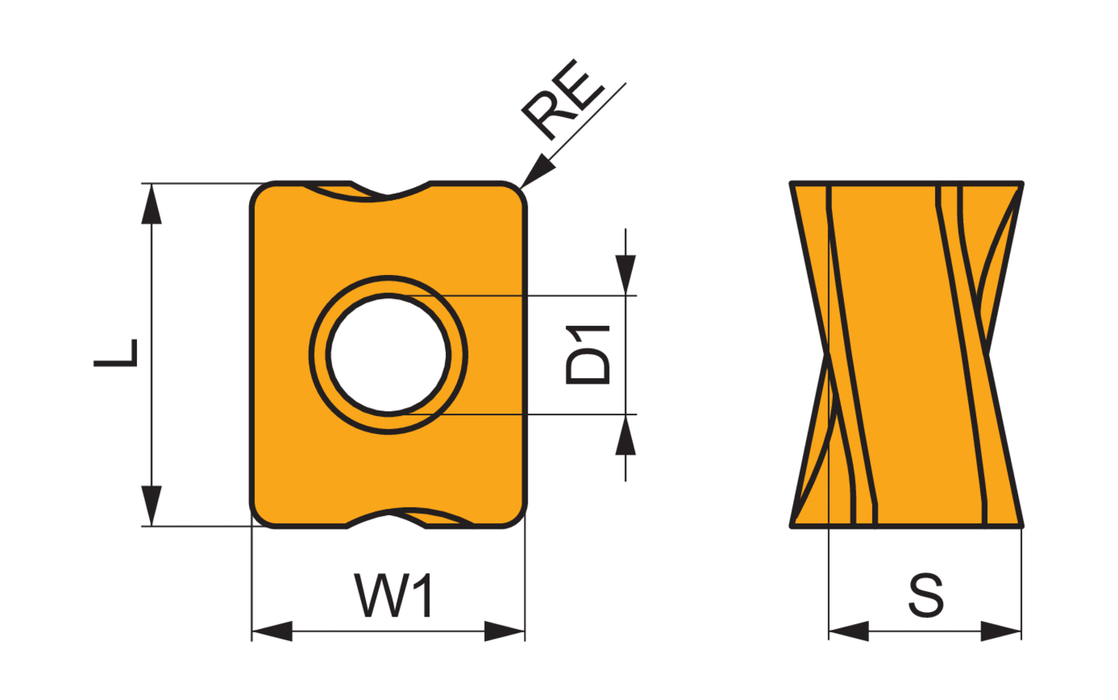

Max. Depth of Cut: 0.354

Insert Design: LNGX 12

Insert Shape Code: L - rectangular

Insert Thickness: 0.235

Chip Breaker: R

Grade: M8340

Corner Radius - in: 0.063

Corner Radius - mm: 1.6

EDP: 6798610

EAN: 3603602992482

MFG Part Number: 6798610
