APET 150412SN:M8340

APET 150412SN:M8340

SKU DOR6800814
by Dormer Pramet
Primary Use: Possible Use:

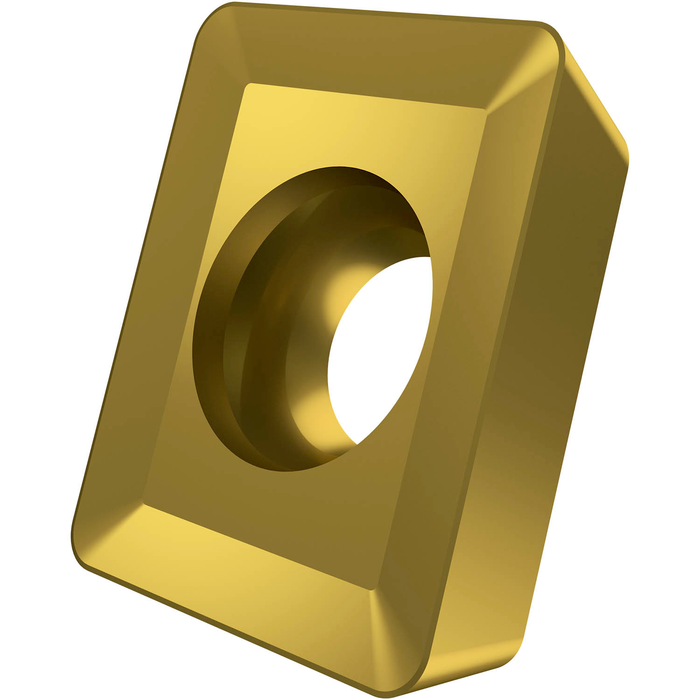

Single-sided milling insert APET 1504 with chip-breakers, 85° parallelogram for a maximum depth of cut of .4724", with .0472" corner radius, an indexing accuracy according to ISO-tolerance class-E with rounded cutting edges and facet, M8340 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P50 and M20-M40 for machining of steel and stainless-steel with shoulder mills with extended flute J(T)-SSAP

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$33.34 - $33.34
$33.34
$33.34 - $33.34
$33.34
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

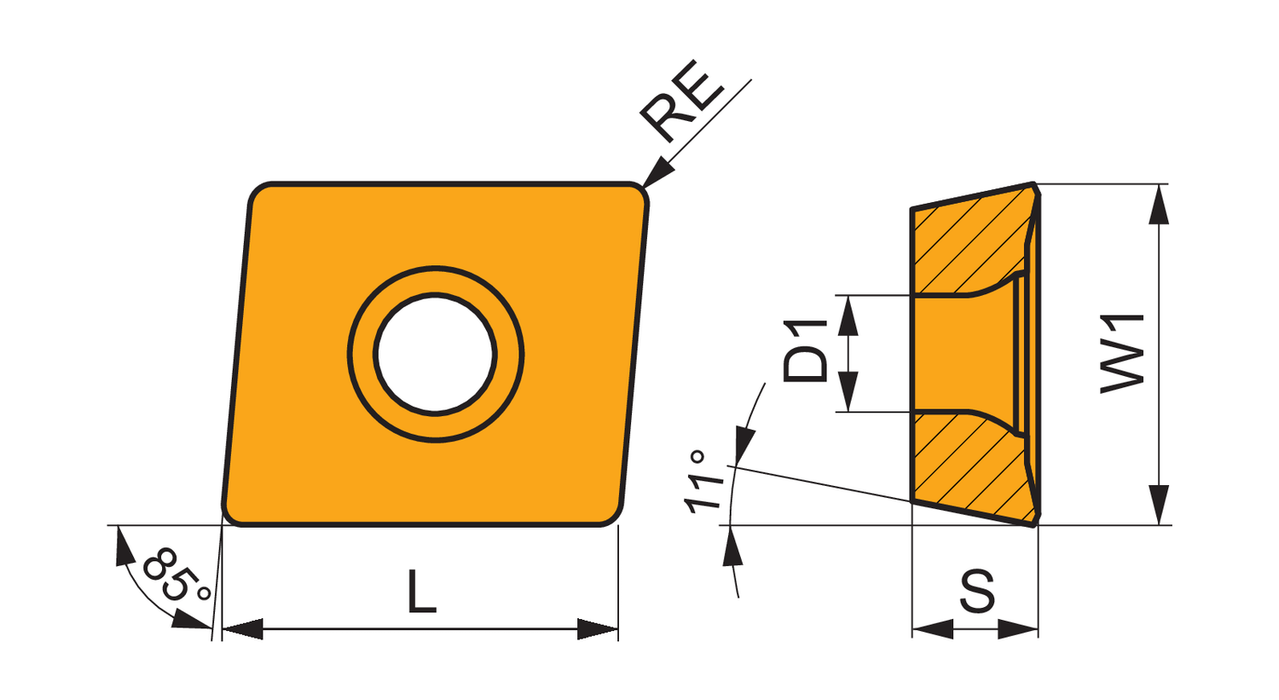

Max. Depth of Cut: 0.472

Insert Design: APET

Insert Shape Code: A - parallelogram 85° included angle

Insert Thickness: 0.187

Chip Breaker: With chipbreaker -no designation

Grade: M8340

Corner Radius - in: 0.047

Corner Radius - mm: 1.2

EDP: 6800814

EAN: 3603602993458

MFG Part Number: 6800814
