CCMX 09T308S-TS1:M8340

CCMX 09T308S-TS1:M8340

SKU DOR6800826
by Dormer Pramet
Primary Use: Possible Use:

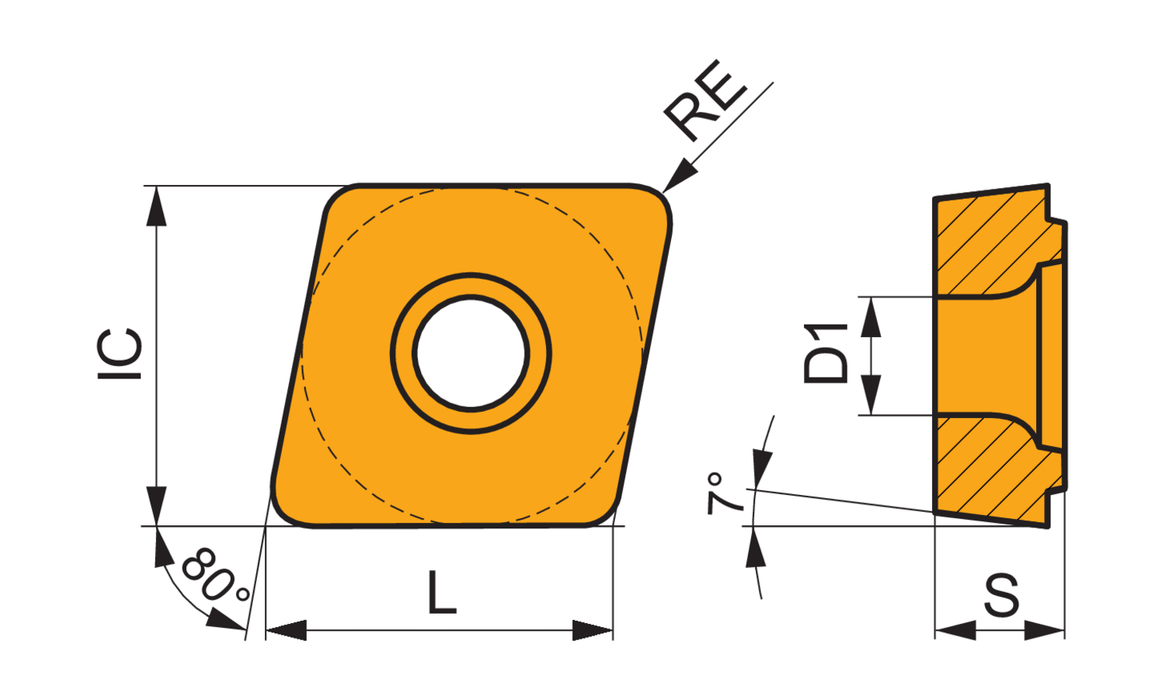

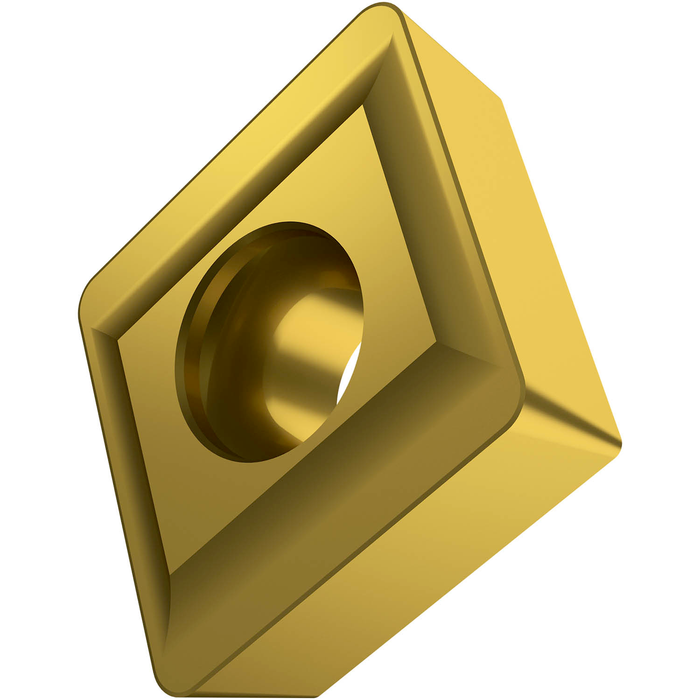

Single-sided milling insert CCMX 09T3, 80° rhomboid for a T-slot milling cutter of 1.6142", with .0315" corner radius, an indexing accuracy according to ISO-tolerance class-M and TS1 geometry with rounded cutting edges and facet, M8340 PVD coated fine grained WC-Co carbide within ISO-grade range P25-P50 for machining of steel with T-slot mill F-SCC

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$24.60 - $24.60
$24.60
$24.60 - $24.60
$24.60
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Insert Design: CCMX

Insert Shape Code: C - rhombic 80° included angle

Insert Thickness: 0.156

Inscribed Circle Diameter: 0.375

Chip Breaker: TS1

Grade: M8340

Corner Radius - in: 0.031

Corner Radius - mm: 0.8

EDP: 6800826

EAN: 3603602993571

MFG Part Number: 6800826
