SNHF 53ENSR-M:M8340

SNHF 53ENSR-M:M8340

SKU DOR6800868
by Dormer Pramet
Primary Use: Possible Use:

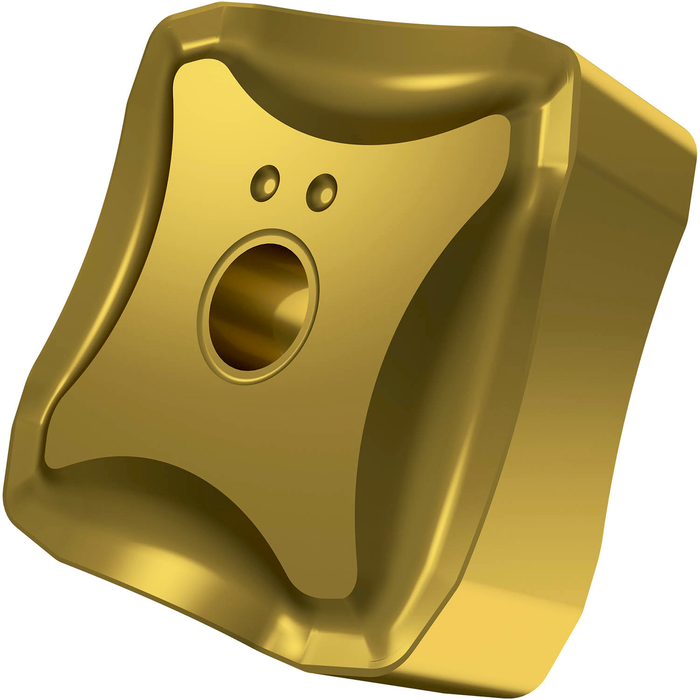

Double-sided milling insert SNHF 1504 with chip-breakers, square for a maximum depth of cut of .3543", with " corner radius, an indexing accuracy according to ISO-tolerance class-H and M geometry with rounded cutting edges and facet, M8340 PVD coated fine grained WC-Co carbide within ISO-grade range P25-P50 for machining of steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$27.00 - $27.00
$27.00
$27.00 - $27.00
$27.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

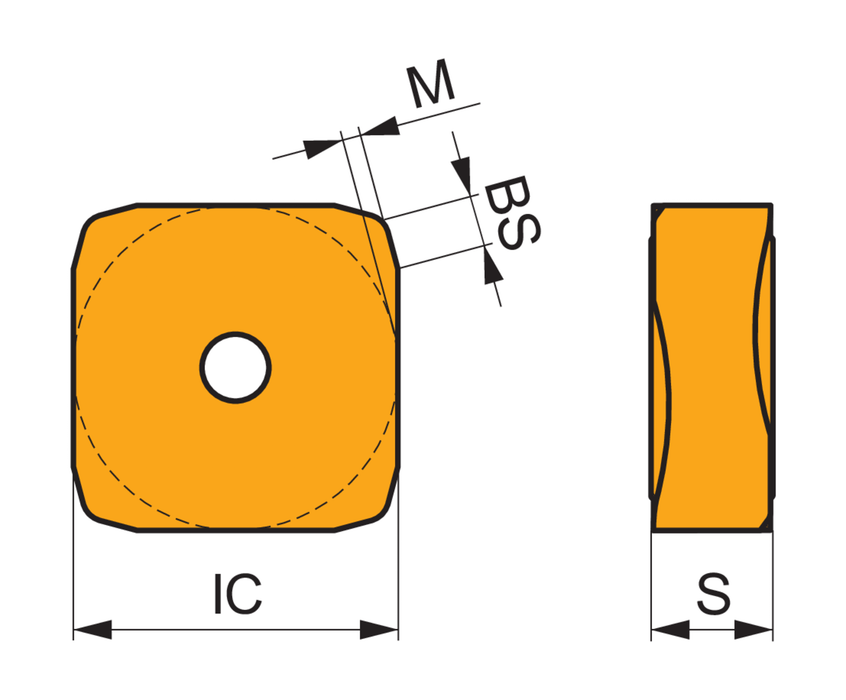

Max. Depth of Cut: 0.354

Insert Design: SNHF

Insert Shape Code: S - square

Insert Thickness: 0.187

Inscribed Circle Diameter: 0.625

Chip Breaker: M

Grade: M8340

EDP: 6800868

EAN: 3603602993991

MFG Part Number: 6800868
