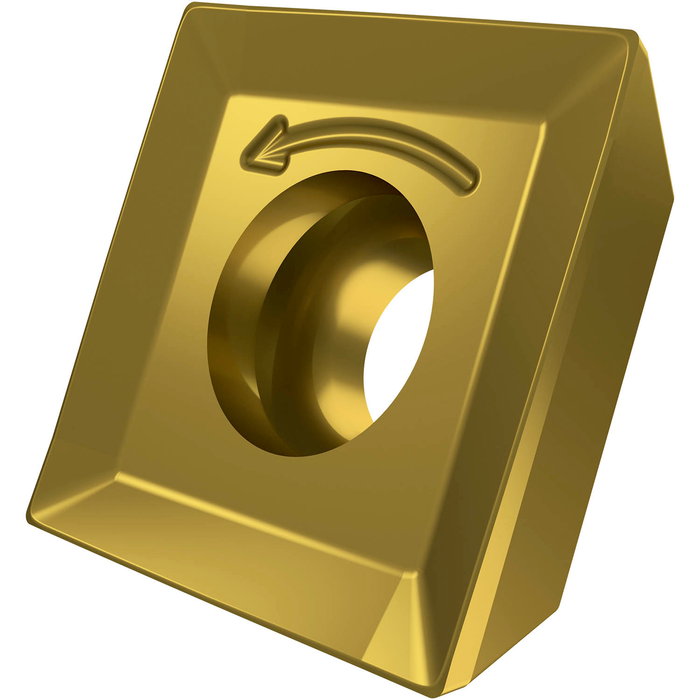

SOMT 09T304-P:M8340

SOMT 09T304-P:M8340

SKU DOR6800888
by Dormer Pramet
Primary Use: Possible Use:

Single-sided milling insert SOMT 09T3 with chip-breakers, square for a maximum depth of cut of .315", with .0157" corner radius, an indexing accuracy according to ISO-tolerance class-M and P geometry, M8340 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P50 and M20-M40 for machining of steel and stainless-steel with chamfer mills N-SSO09 or shoulder mills SSO09

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$20.27 - $20.27
$20.27
$20.27 - $20.27
$20.27
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

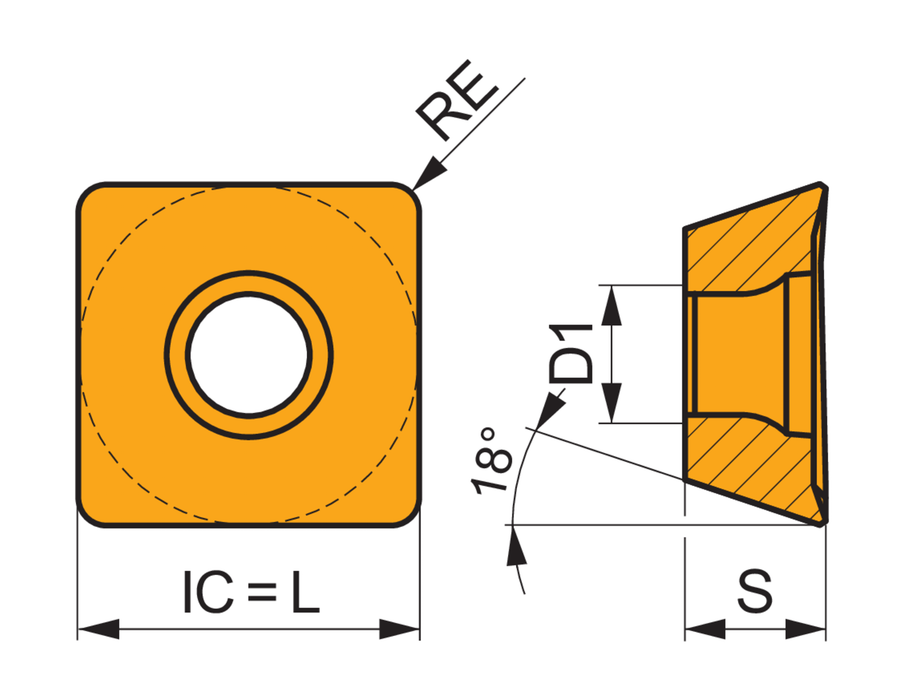

Max. Depth of Cut: 0.315

Insert Design: SOMT

Insert Shape Code: S - square

Insert Thickness: 0.156

Inscribed Circle Diameter: 0.376

Chip Breaker: P

Grade: M8340

Corner Radius - in: 0.016

Corner Radius - mm: 0.4

EDP: 6800888

EAN: 3603602995193

MFG Part Number: 6800888
