SPG 322:M8340

SPG 322:M8340

SKU DOR6800895
by Dormer Pramet
Primary Use: Possible Use:

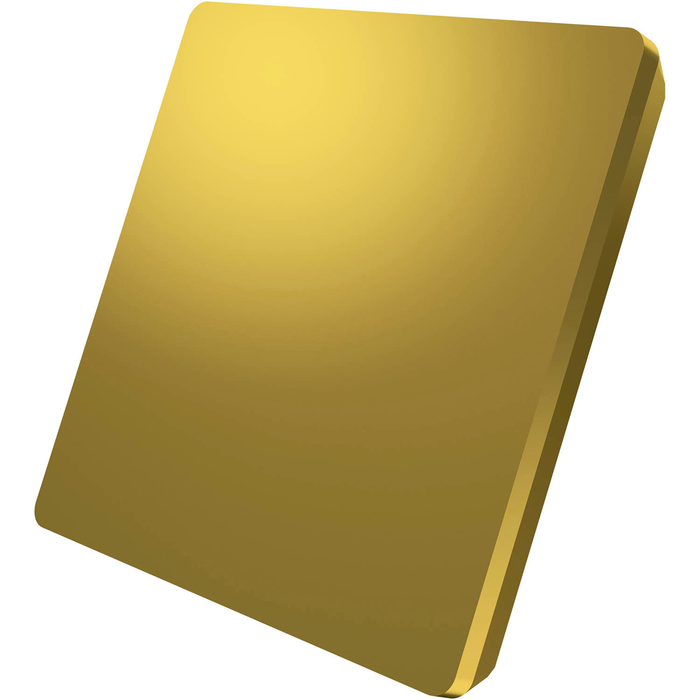

Single-sided milling insert SPGN 0903 with a plane rake surface, square for a maximum depth of cut of .2362", with .0315" corner radius, an indexing accuracy according to ISO-tolerance class-G, M8340 PVD coated fine grained WC-Co carbide for machining with shoulder mills WSP25P

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$14.36 - $14.36
$14.36
$14.36 - $14.36
$14.36
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

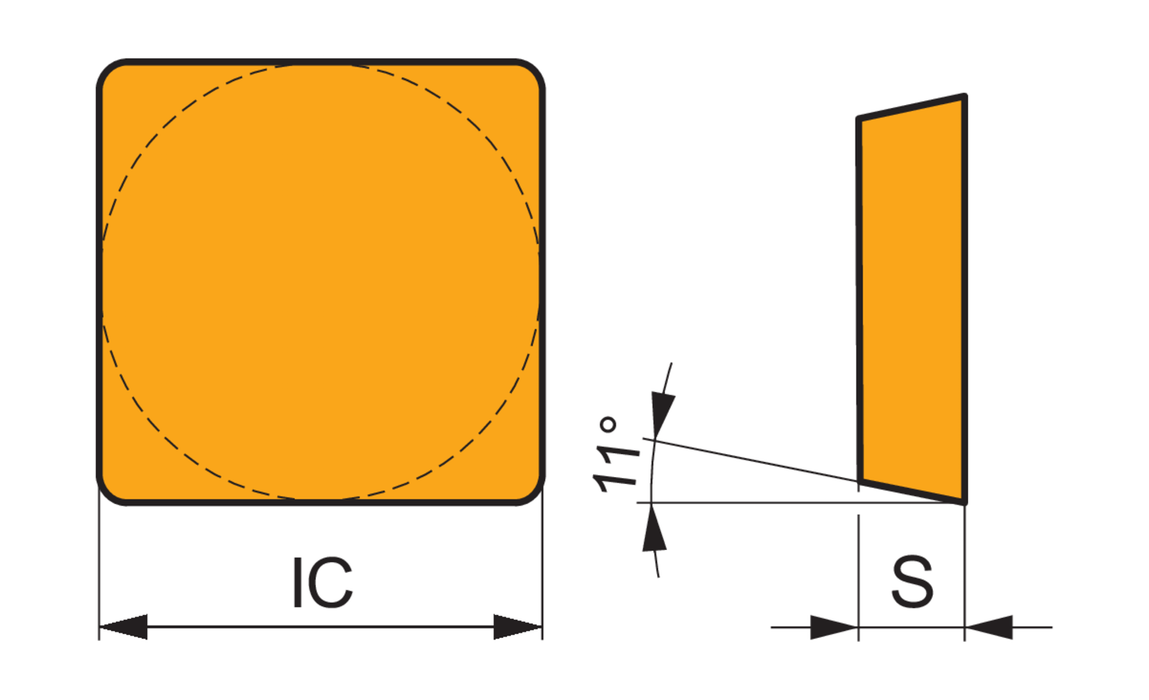

Max. Depth of Cut: 0.236

Insert Design: SPGN

Insert Shape Code: S - square

Insert Thickness: 0.125

Inscribed Circle Diameter: 0.375

Chip Breaker: No chipbreaker

Grade: M8340

Corner Radius - in: 0.031

Corner Radius - mm: 0.8

EDP: 6800895

EAN: 3603602995261

MFG Part Number: 6800895
