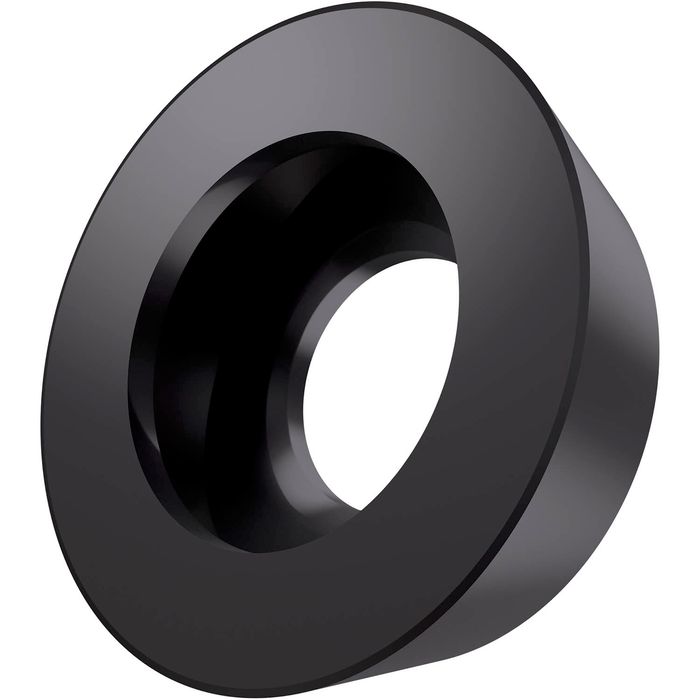

RDMX 1003MOT:M8310

RDMX 1003MOT:M8310

SKU DOR6801016
by Dormer Pramet
Primary Use: Possible Use:

Single-sided milling insert RDMX 1003, round for a maximum depth of cut of .0984", with " corner radius, an indexing accuracy according to ISO-tolerance class-M with cutting edges with facet, M8310 PVD coated fine grained WC-Co carbide within ISO-grade ranges K01-K10 and H05-H15 for machining of cast-iron and hardened material with copy face mills SRD10

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$15.39 - $15.39
$15.39
$15.39 - $15.39
$15.39
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.098

Insert Design: RDMX

Insert Shape Code: R - round

Insert Thickness: 0.125

Chip Breaker: No chipbreaker

Grade: M8310

EDP: 6801016

EAN: 3603602995278

MFG Part Number: 6801016
