PSR4-R23:T9335
SKU DOR6801210
Primary Use:
Possible Use:

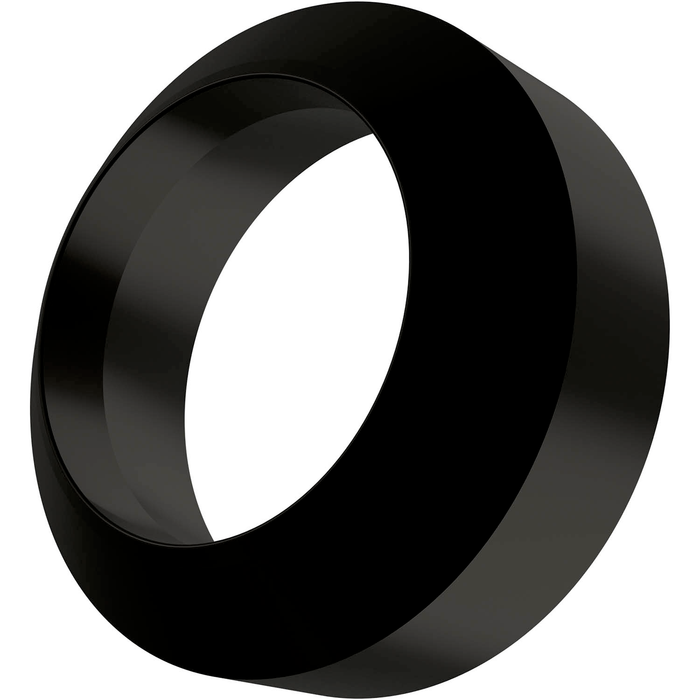

Scarfing ring with an outside diameter of 30mm, an inside diameter of 20mm, 12mm thick and a working radius of 22.8mm for tube diameters from 48 to 72mm, T9335 MT-CVD coated functionally graded WC-Co carbide within ISO-grade ranges P20-P45 and M15-M40 for deburring the inside of steel and stainless-steel tubes and pipes
Inventory
Sold in packs of: 5
For more information about this product,
click here
Original price
$74.29
-
Original price
$74.29
Original price
$74.29
$74.29
-
$74.29
Current price
$74.29
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

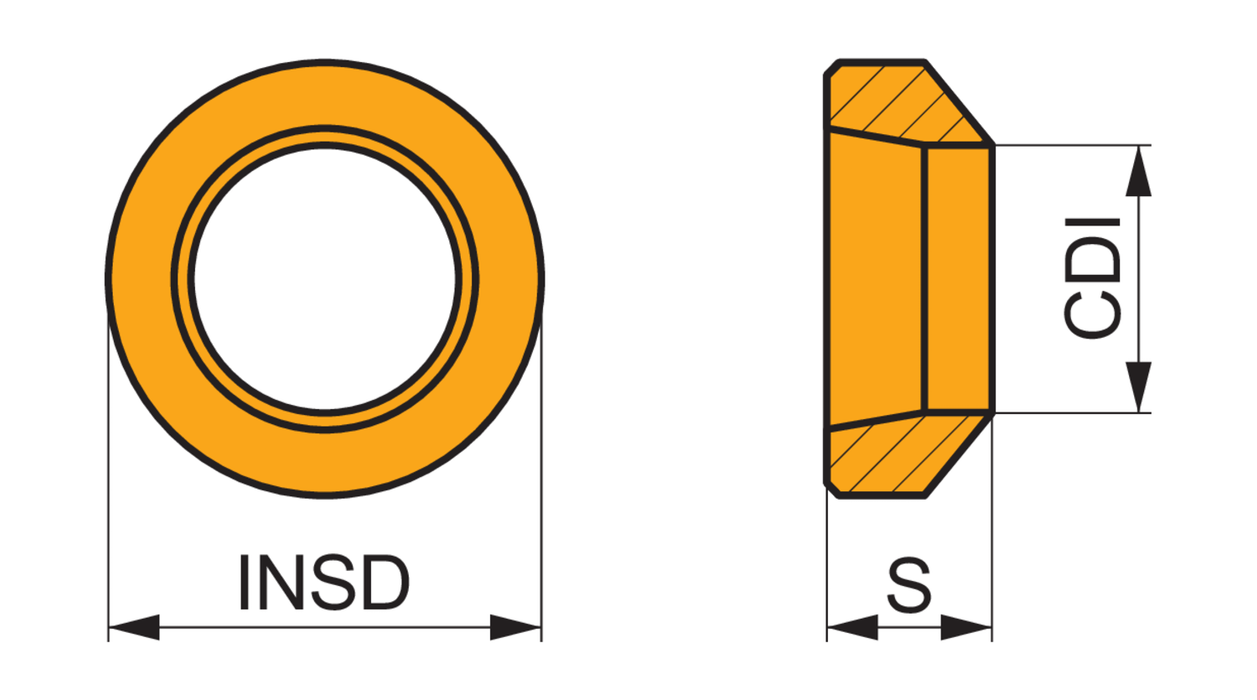

Insert Design: PSR
Insert Shape Code: P - pentagonal
Insert Thickness: 0.472
Inscribed Circle Diameter: 1.181
Chip Breaker: No chipbreaker
Grade: T9335
EDP: 6801210
EAN: 3603602996183
MFG Part Number: 6801210
