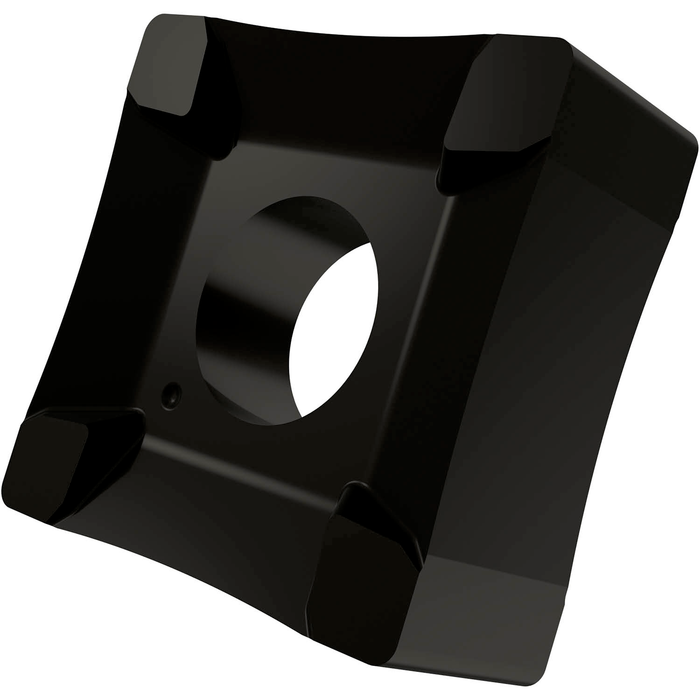

SNMX 19-R75:T9335

SNMX 19-R75:T9335

SKU DOR6801265
by Dormer Pramet
Primary Use:

Double-sided scarfing insert, square with a main cutting edge length of 19.05mm, 8.15mm thick and a working radius of 75mm for tube diameters from 86 to 108mm, T9335 MT-CVD coated functionally graded WC-Co carbide within ISO-grade ranges P20-P45/M15-M40 and S15-S25 for deburring the outside of steel, stainless-steel and super-alloy tubes and pipes

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$44.21 - $44.21
$44.21
$44.21 - $44.21
$44.21
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

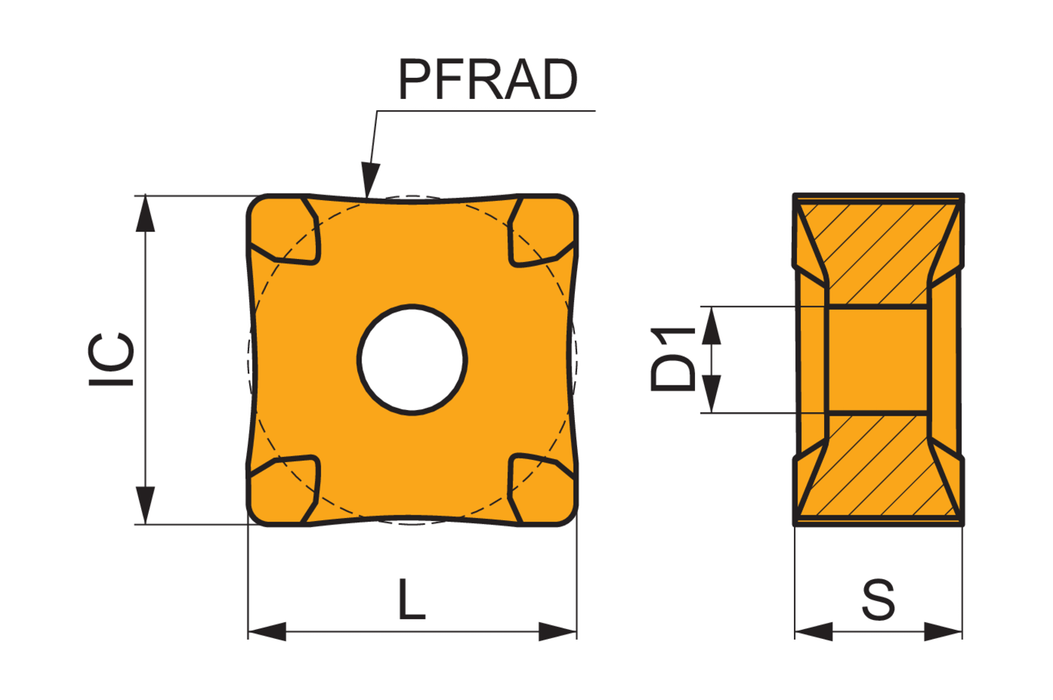

Insert Design: SNMX 19-R

Insert Shape Code: S - square

Insert Thickness: 0.321

Inscribed Circle Diameter: 0.75

Chip Breaker: With chipbreaker -no designation

Grade: T9335

Corner Radius - in: 0.016

Corner Radius - mm: 0.4

EDP: 6801265

EAN: 3603602996732

MFG Part Number: 6801265
