LNET 160616SR-R:M8340

LNET 160616SR-R:M8340

SKU DOR6801306
by Dormer Pramet
Primary Use: Possible Use:

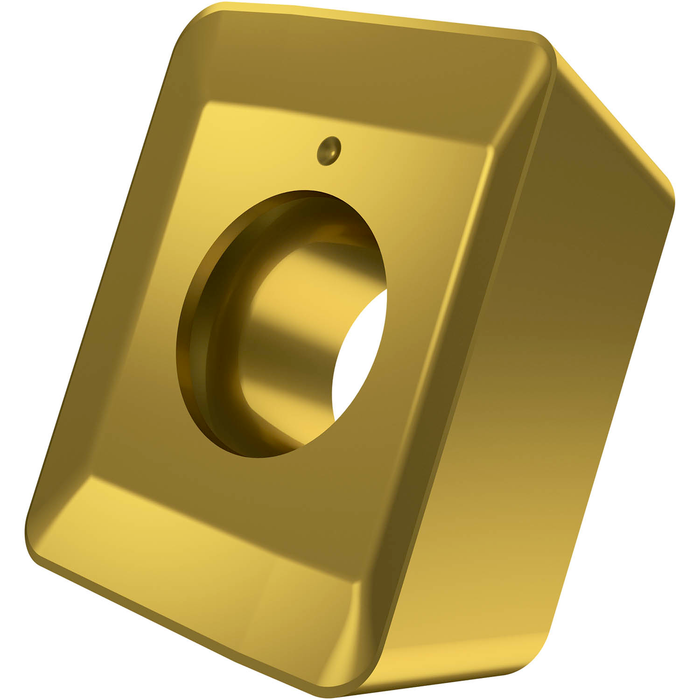

Single-sided milling insert LNET 1606 with chip-breakers, rectangular for a maximum depth of cut of .5906", with .063" corner radius, an indexing accuracy according to ISO-tolerance class-E and R geometry with rounded cutting edges and facet, M8340 PVD coated fine grained WC-Co carbide within ISO-grade range P25-P50 for machining of steel with shoulder mills with extended flute J(T)-SLSN

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$33.90 - $33.90
$33.90
$33.90 - $33.90
$33.90
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

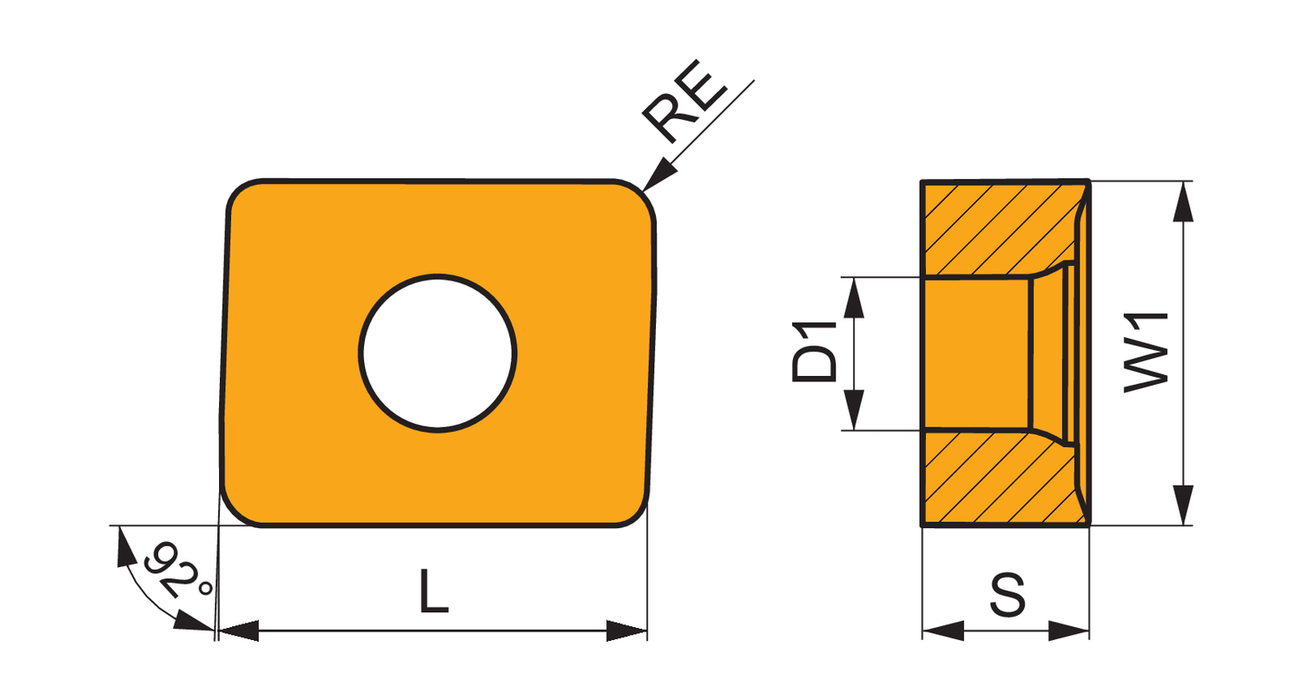

Max. Depth of Cut: 0.591

Insert Design: LNET

Insert Shape Code: L - rectangular

Insert Thickness: 0.251

Chip Breaker: R

Grade: M8340

Corner Radius - in: 0.063

Corner Radius - mm: 1.6

EDP: 6801306

EAN: 3603602996879

MFG Part Number: 6801306
