SBKX 2207DZER:M8326
SKU DOR6801307
Possible Use:

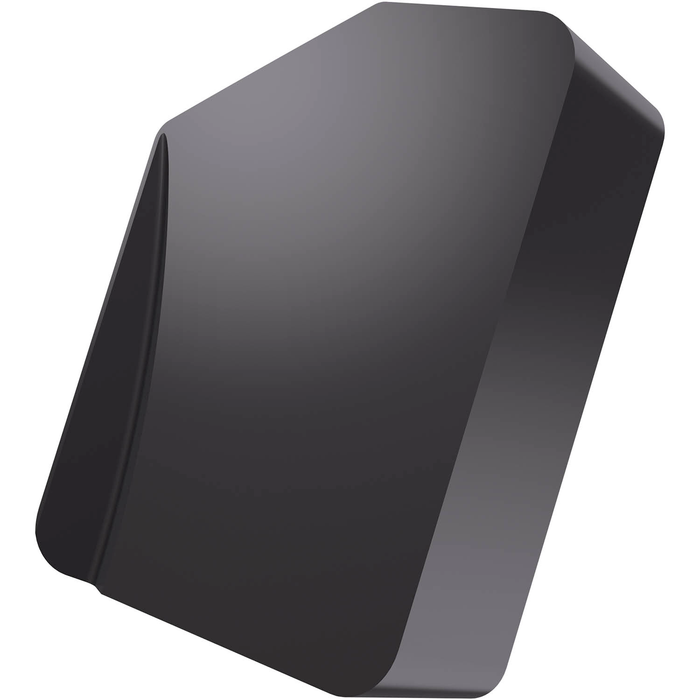

Single-sided milling insert SBKX 2207, square for a maximum depth of cut of .5906", with " corner radius, an indexing accuracy according to ISO-tolerance class-K with rounded cutting edges, M8326 PVD coated WC-Co carbide within ISO-grade range P20-P40 for machining of steel with face mills FSB22X
Inventory
Sold in packs of: 5
For more information about this product,
click here
Original price
$67.93
-
Original price
$67.93
Original price
$67.93
$67.93
-
$67.93
Current price
$67.93
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

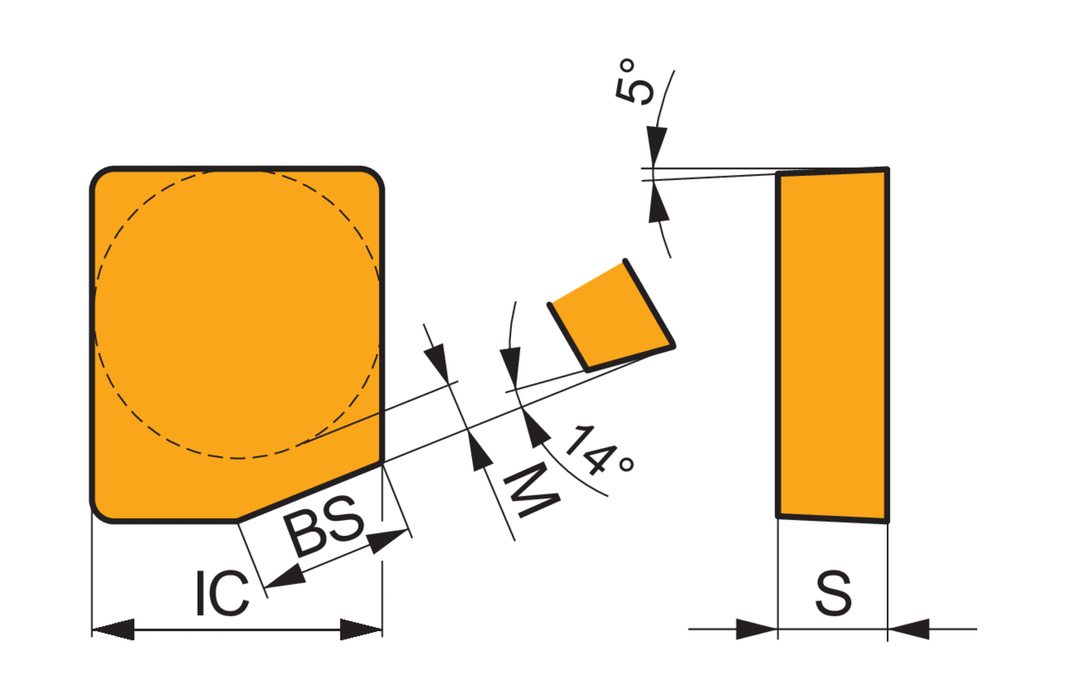

Max. Depth of Cut: 0.591
Insert Design: SBKX
Insert Shape Code: S - square
Insert Thickness: 0.315
Inscribed Circle Diameter: 0.866
Chip Breaker: No chipbreaker
Grade: M8326
EDP: 6801307
EAN: 3603602996886
MFG Part Number: 6801307
