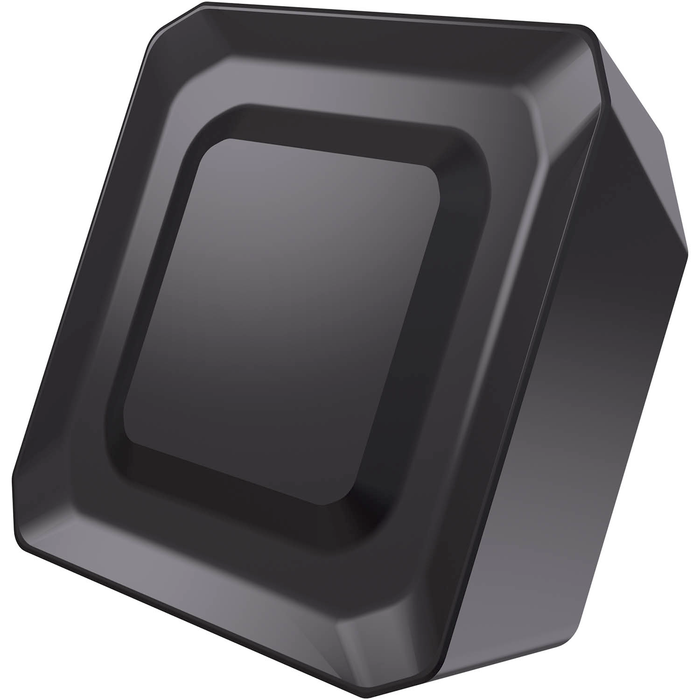

SBMR 2207DZSR-R:M8346

SBMR 2207DZSR-R:M8346

SKU DOR6801311
by Dormer Pramet
Primary Use: Possible Use:

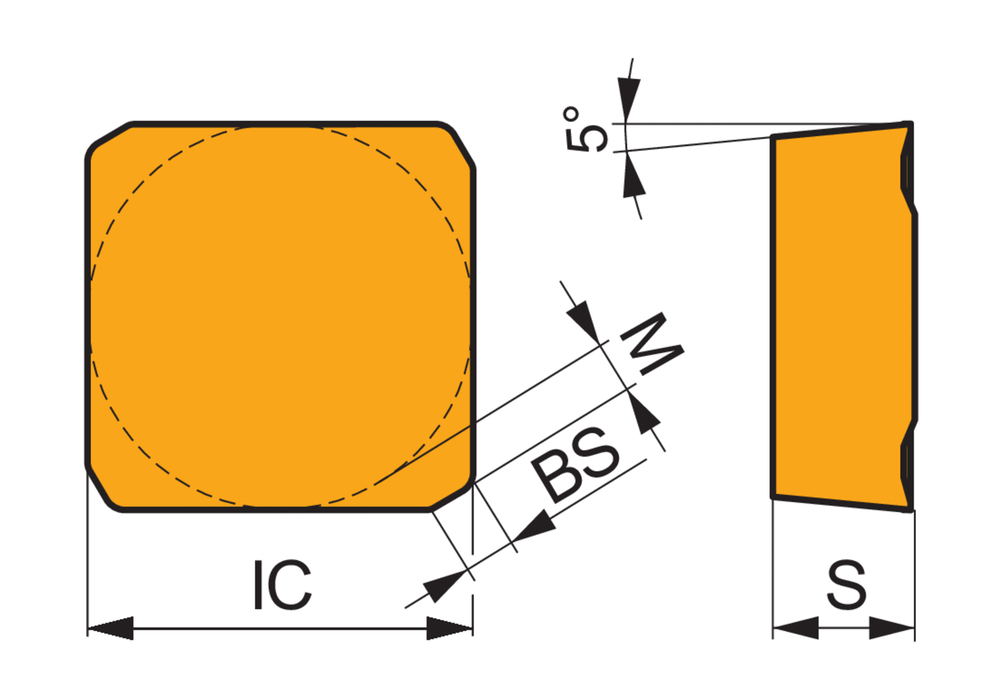

Single-sided milling insert SBMR 2207 with chip-breakers, square for a maximum depth of cut of .5906", with " corner radius, an indexing accuracy according to ISO-tolerance class-M and R geometry with rounded cutting edges and facet, M8346 PVD coated WC-Co carbide within ISO-grade range P30-P50 for machining of steel with face mills FSB22X

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$59.43 - $59.43
$59.43
$59.43 - $59.43
$59.43
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.591

Insert Design: SBMR

Insert Shape Code: S - square

Insert Thickness: 0.315

Inscribed Circle Diameter: 0.866

Chip Breaker: R

Grade: M8346

EDP: 6801311

EAN: 3603602996923

MFG Part Number: 6801311
