SPGN 84DZSR:M8326
SKU DOR6801312
Possible Use:

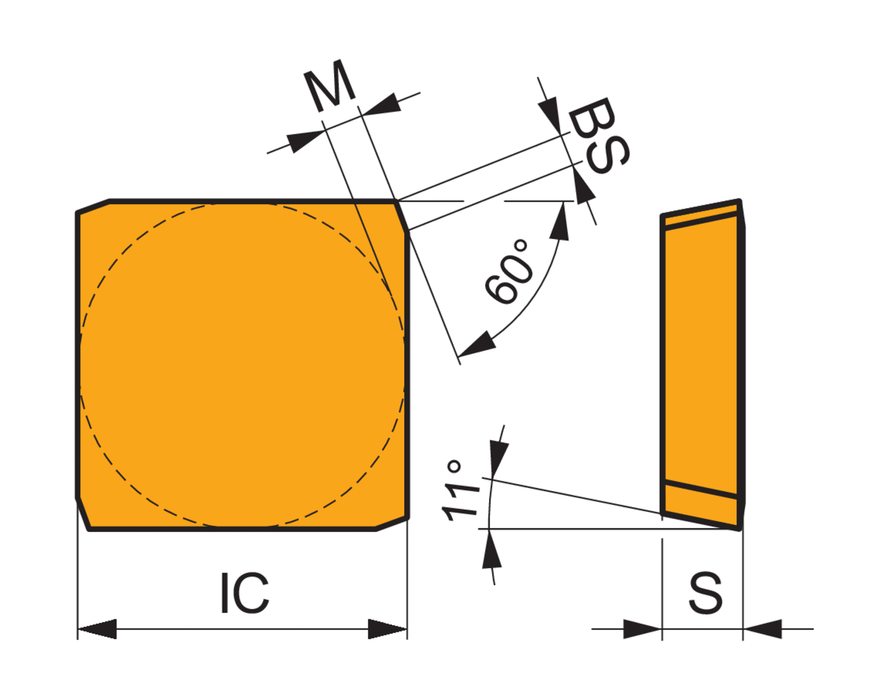

Single-sided milling insert SPGN 2506 with a plane rake surface, square for a maximum depth of cut of .7087", with " corner radius, an indexing accuracy according to ISO-tolerance class-G with rounded cutting edges and facet, M8326 PVD coated WC-Co carbide
Inventory
Sold in packs of: 10
For more information about this product,
click here
Original price
$67.21
-
Original price
$67.21
Original price
$67.21
$67.21
-
$67.21
Current price
$67.21
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
Max. Depth of Cut: 0.709
Insert Design: SPGN
Insert Shape Code: S - square
Insert Thickness: 0.25
Inscribed Circle Diameter: 0.984
Chip Breaker: No chipbreaker
Grade: M8326
EDP: 6801312
EAN: 3603602996930
MFG Part Number: 6801312
