TBMR 2707PZSR:M8346

TBMR 2707PZSR:M8346

SKU DOR6801319
by Dormer Pramet
Primary Use: Possible Use:

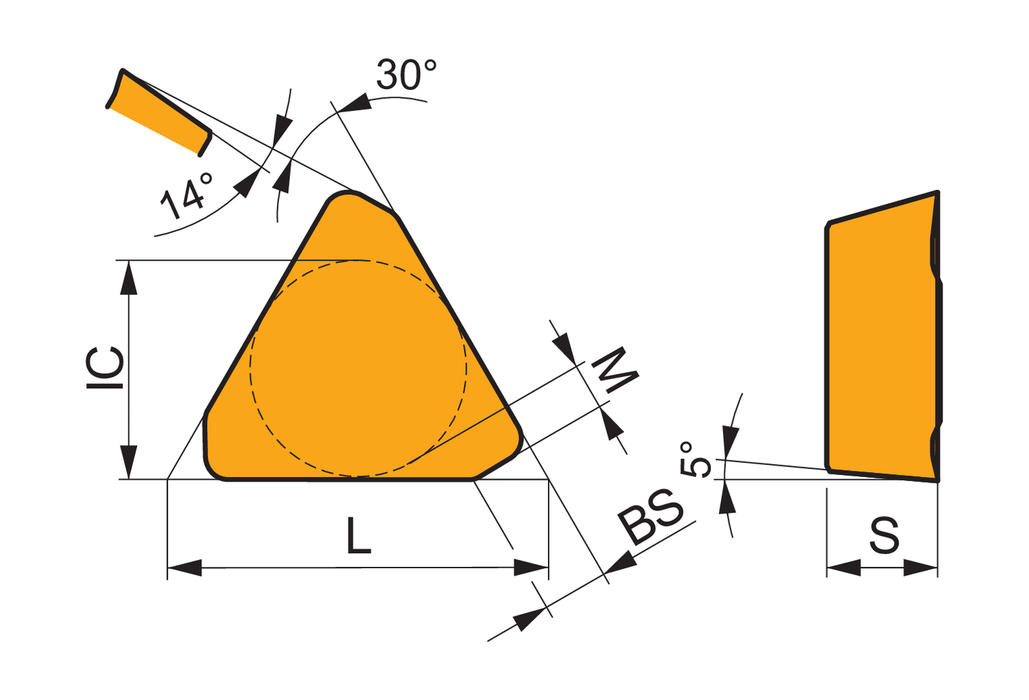

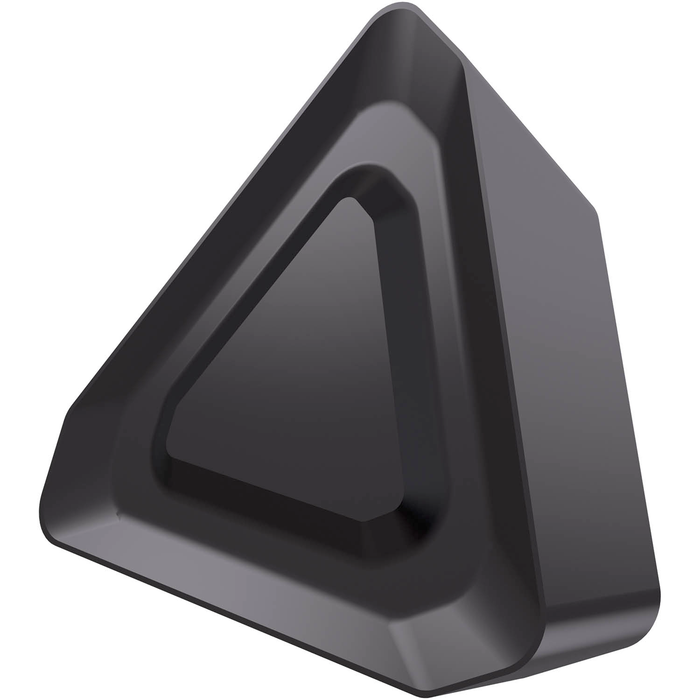

Single-sided milling insert TBMR 2707 with chip-breakers, triangular for a maximum depth of cut of .7087", with " corner radius, an indexing accuracy according to ISO-tolerance class-M with rounded cutting edges and facet, M8346 PVD coated WC-Co carbide within ISO-grade range P30-P50 for machining of steel with shoulder mills FTB27X

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$39.93 - $39.93
$39.93
$39.93 - $39.93
$39.93
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.709

Insert Design: TBMR

Insert Shape Code: T - triangular 60° included angle

Insert Thickness: 0.313

Inscribed Circle Diameter: 0.625

Chip Breaker: With chipbreaker -no designation

Grade: M8346

EDP: 6801319

EAN: 3603602997005

MFG Part Number: 6801319
