SNHQ 120515TRL:M8340

SNHQ 120515TRL:M8340

SKU DOR6803508
by Dormer Pramet
Primary Use: Possible Use:

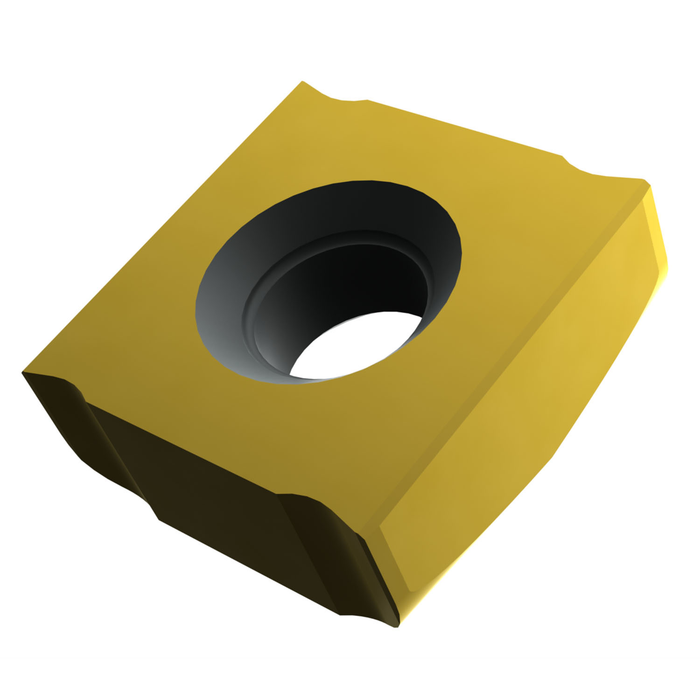

Single-sided disc milling insert, for a cutting width of .3937" with .0591" corner radius and cutting edges with facet, M8340 PVD coated fine grained WC-Co carbide within ISO-grade range P25-P50 for machining of steel with disc mills S90SN

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$30.13 - $30.13
$30.13
$30.13 - $30.13
$30.13
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

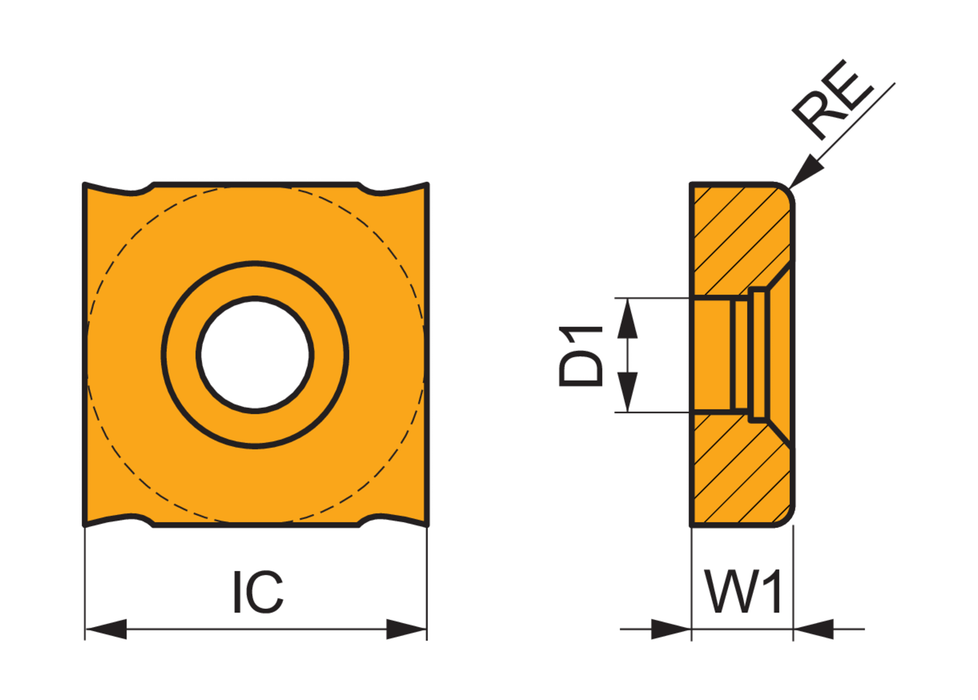

Insert Design: SNHQ

Insert Shape Code: S - square

Inscribed Circle Diameter: 0.5

Chip Breaker: With chipbreaker -no designation

Grade: M8340

Corner Radius - in: 0.059

Corner Radius - mm: 1.5

EDP: 6803508

EAN: 3603602995438

MFG Part Number: 6803508
