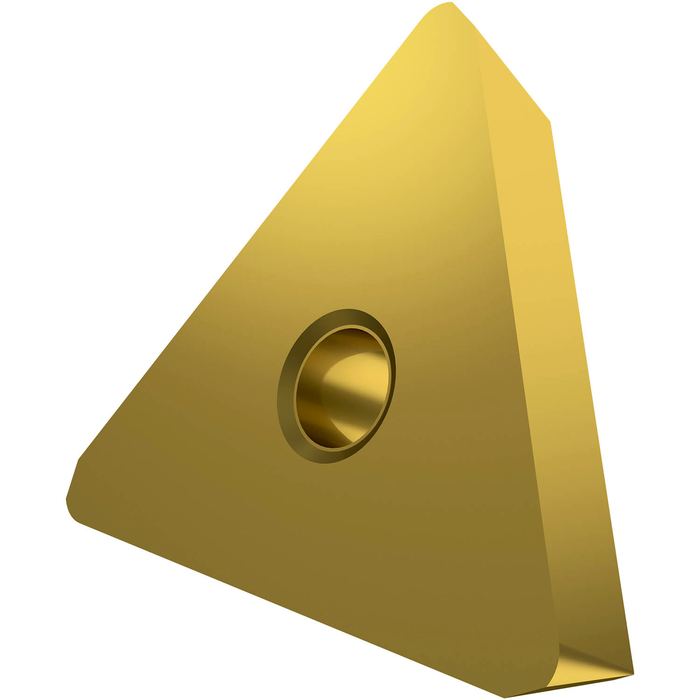

TPKN 32PDER:M8340
SKU DOR6803606
Possible Use:
Single-sided milling insert TPKN 1603 with a plane rake surface, triangular for a maximum depth of cut of .4724", with " corner radius, an indexing accuracy according to ISO-tolerance class-K with rounded cutting edges, M8340 PVD coated fine grained WC-Co carbide
Inventory
Sold in packs of: 10
For more information about this product,
click here
Original price
$13.36
-
Original price
$13.36
Original price
$13.36
$13.36
-
$13.36
Current price
$13.36
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

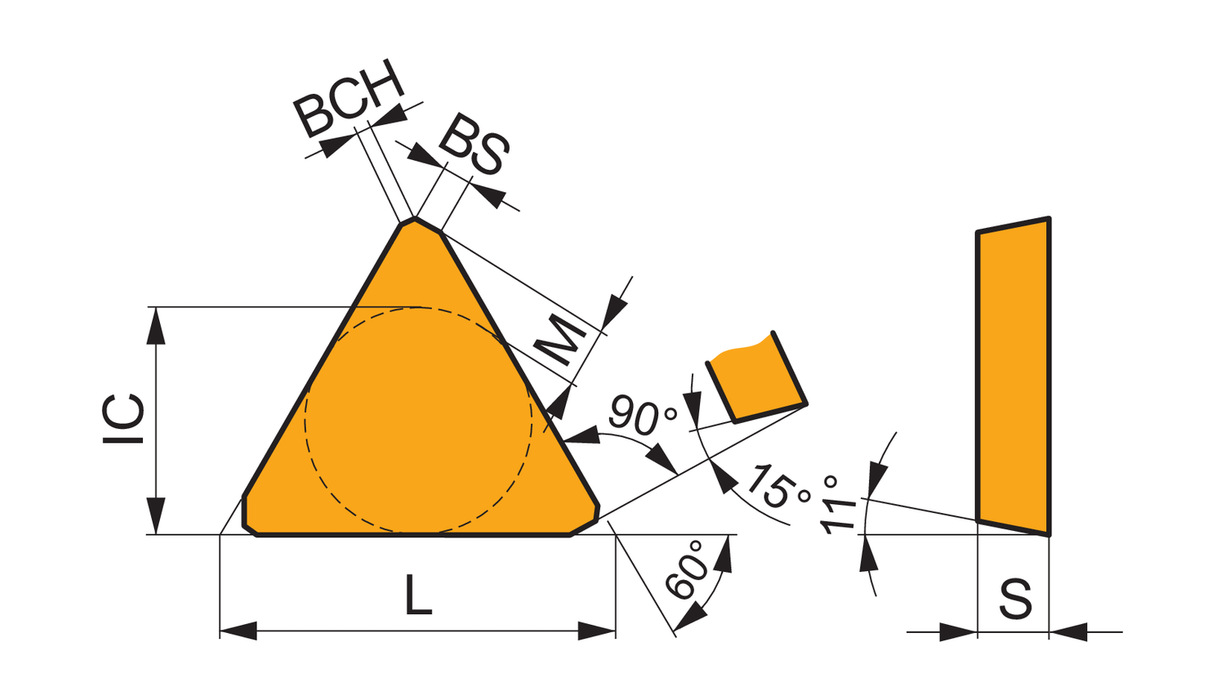

Max. Depth of Cut: 0.472
Insert Design: TPKN
Insert Shape Code: T - triangular 60° included angle
Insert Thickness: 0.125
Inscribed Circle Diameter: 0.375
Chip Breaker: No chipbreaker
Grade: M8340
EDP: 6803606
EAN: 3603602995612
MFG Part Number: 6803606
